Need a compact construction machine? The wheeled mini skid steer loader with 4-in-1 bucket that is on hot sale! Meet you!Standing small wheeled skid steer loader with a compact body for working in small areas.For example, building a small garden and digging a small pool for domestic use.According to your needs, we can make exclusive customization for you.
Model :
LT20Load Capacity :
300KGOperating Weight :
980KGBucket Capacity :
0.15m³ODM/OEM :
Support
Mini wheeled skid steer loaders come in different styles
Wheeled compact skid steer loaders with different styles, corresponding to different models. In terms of loading capacity and product size, we have different styles to meet the different needs of customers.
Product Features of Diesel Gasoline Powered Skid Steer Loaders
1. safer maintenance - thanks to the open style design, you can easily open and remove the top cover plate rear guard plate, you can also easily put the wasted engine oil outside the body; all of which allows you to easily change spare parts, such as air filters, oil, oil filters, spark plugs and so on
2. High performance - thanks to the compact structure design, the mini skid steer can go into small spaces for work, even your indoor room;
3. Easy to control - only two controllers to control, lift and dump. The piston hydraulic motor provides high torque to the mini slide drive and keeps it running smoothly.
4.EASY TO WORK - The four-wheel drive actuator allows the mini sliding driver to travel over a variety of terrains.
5. Stable, simple quick-change equipment with attachments such as quarter-barrel industrial! Grapple augers, forks, hydraulic breakers, snow blower angle blades, open ditches and more. It truly is a versatile machine for every need!
6. With original package, hydraulic control, high power output, imported engine, including Paragon model and Kubota model, dual output mode, mechanical operation.
Skid Steer Loader Product Specifications
| Model | LT20 |
| Type of engine | Double-cylinder diesel engine |
| Rated power | 15KW |
| Rated speed | 3600rpm |
| Number of cylinders | 2 |
| Air inlet mode | nature |
| Displacement | 0.997L |
| Emission standard | EU5 |
| Rated load | 300Kg |
| Max Load | 400Kg |
| Max lifting Force | 450kg |
| Bucket Capacity | 0.15m³ |
| Driving speed | 0-6km/h |
| The sum of three items | 9s |
| system pressure bar | 17-21bar |
| Fuel tank capacity | 25L |
| Operating weight | 980Kg |
| Tire | 20*10.0-10 |
| Maximum operating height(H1) | 2450mm |
| Height to bucket pin | 1870mm |
| overall height(H) | 1350mm |
| Max height on bucket level state | 1810mm |
| Total length without bucket(L2) | 1680mm |
| Total length（with bucket）(L) | 2206mm |
| Max height Unloading Angle | 34° |
| Dumping height(H2) | 1510mm |
| Dumping distance | 450mm |
| Bucket overturning angle on the ground | 27° |
| Max Bucket swing angle | 114° |
| Wheel base | 850mm |
| Ground clearance | 150mm |
| Tail length | 280mm |
| Track width (standard tire) | 720mm |
| overall width(B) | 1150mm |
| Bucket width(B1) | 1200mm |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

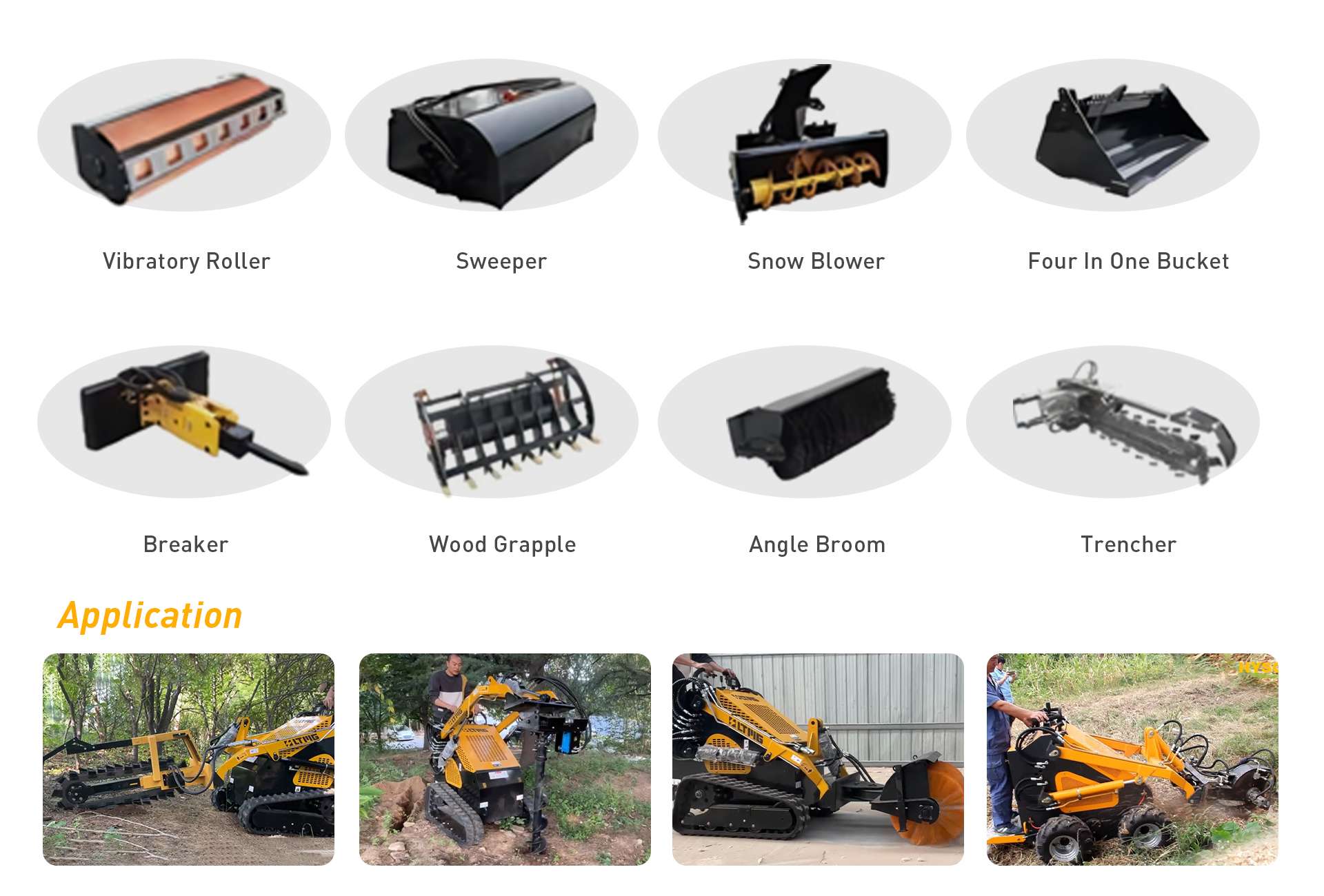

Skid Steer Loader Wheeled Attachment Application and Selection
Different working environment, choose different skid steer loader belongings. According to the customer's choice, it can realize the multi-purpose of one machine. Customers can also choose to buy multiple attachments, through the hydraulic operation, replace different attachments to achieve different working purposes.
