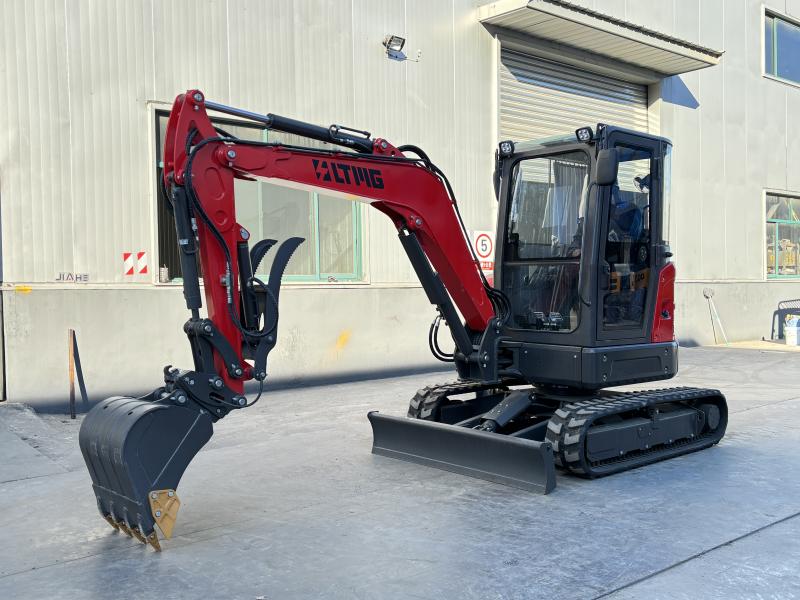

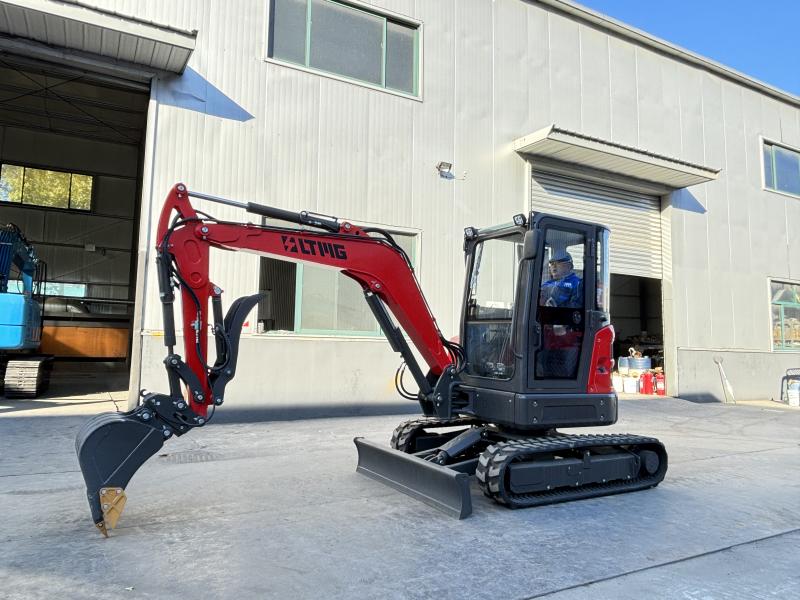

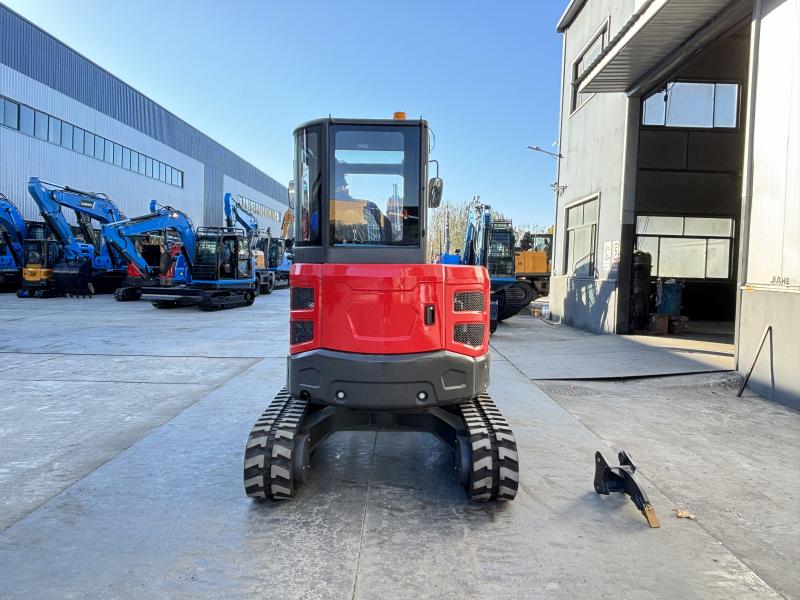

The Small Zero Tail Crawler Excavator with Thumb Clamp with unique design, separating engine and radiation space for optimized performance. Benefit from enhanced cooling fan technology, renowned brand hydraulic system parts, and double fuel filters for superior reliability. Expand functionality with extendable hydraulic lines and enjoy the wide array of optional attachments. Power through any job effortlessly.
Model :
LTE35Operating Weight :
3500 kgBucket Capacity :
0.12 m²ODM/OEM :
Available
The Small Zero Tail Crawler Excavator with Thumb Clamp is an innovative and versatile excavator that is designed for use in tight spaces and challenging terrains. It incorporates advanced features that make it ideal for both indoor and outdoor applications. With its small size, enhanced maneuverability, and versatility, this excavator is an essential tool for construction, landscaping, demolition, and many more applications.
Special design on separating engine and radiation space: the design ensures that the machine can operate efficiently in various conditions. It also comes equipped with an enhanced cooling fan that ensures optimal performance even in hot and humid working environments. Additionally, famous brand hydraulic system parts are used to guarantee high quality and reliability.
Designed with a double fuel filter to ensure that the fuel is clean and free from any contaminants that may compromise the performance of the machine. Its extend hydraulic line further adds to its versatility and allows you to reach further with ease. Moreover, it comes with many optional attachments that you can use to satisfy specific needs and make the machine more versatile and efficient.
Whether you need to dig, grade, or trench, this crawler digger can do it all. Its robust design and powerful engine make it capable of handling even the toughest job sites. The various attachments adds to its versatility and enables the operator to pick up and move a variety of materials with ease.
In summary, the small crawler excavator is a game-changer for anyone who prioritizes efficiency, versatility, and reliability in their work. It combines the latest technology and innovative features to ensure that you get the job done efficiently and accurately. So, consider investing in this excavator today and take a step towards taking your business to new heights.
Technical Parameters
| Model | LTE35 | |
| Engine Power | Kubota D1703 18.5KW/2200rpm | |
| Max. Turque | 97.4NLm/1500RPM | |
| Type | In-line, water cooled, Mechanical pump, nomally aspiraled | |
| Displacement | 1.647L | |
| No. of cylinder | 4 | |
| Swing Speed | rmin | 0-11 |
| Traveling Speed(high/low) | km/H | 4.4/2.4km/h |
| Max. Bucket Digging Force | kN | 30.4 |
| Arm Dioging Foroe | kN | 18.2 |
| Ground Pressure | Kpa | 32 |
| Hydraulic system pressure | Mpa | 22.5 |
| Machine Weight | KG | 3810 |
| Boam Length | Mm | 2535 |
| Arm Length | Mm | 1400 |
| Fuel Tank capacily | L | 42 |
| Hydraulic Tank capacity | L | 48.5 |
| Engine oll capacity | L | 7 |
| Carrier roller(each side) | 1 | |
| Supporting roller(each side) | 4 | |
| Overall Length | mm | 4915 |
| Overall Width | mm | 1720 |
| Overall Height | mm | 2525 |
| Mini Ground clearance | mm | 295 |
| Track width | mm | 300 |
| Axie base(Track length on ground) | mm | 1670 |
| Length of track | mm | 2154 |
| Track Gauge | mm | 1420 |
| Swing radius at tail | mm | 860 |
| Swing radius at front | mm | 2538 |
| Height of blade | mm | 350 |
| Bucket Capacity | m² | 0.12 |
| Max. Digging Radius | mm | 5480 |
| Max. Digging Depth | mm | 3208 |
| Max. Digging Height | mm | 4800 |
| Max. Dumping Height | mm | 3406 |
| Max, vertioal digging depth | mm | 3208 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

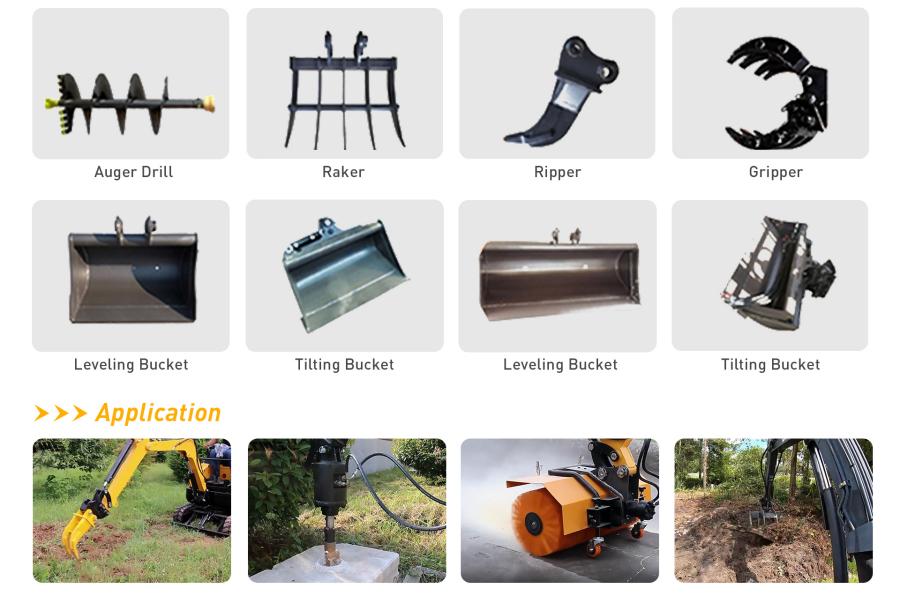

The attachments of crawler excavator
FAQ about the Zero Tail Crawler Excavator
1. What is a Zero Tail Crawler Excavator?
A zero tail crawler excavator is a type of excavator that has a small tail swing radius, meaning that it can rotate 360 degrees without its tail hitting anything. This makes it ideal for working in tight spaces where a traditional excavator might not fit.
2. What are the benefits of using a Zero Tail Crawler Excavator?
The main benefits of using the zero tail type crawler excavator are its ability to work in tight spaces, its high performance, and its low noise and vibration output. It is also highly maneuverable, making it ideal for working on projects where precision is required.
3. What kind of jobs can it be used for?
A zero tail crawler excavator can be used for a variety of jobs, including excavation, grading, demolition, digging trenches, and landscaping. Its compact size makes it ideal for urban construction projects, where space is limited.
4. How do you operate a the excavator?
To operate a the rawler excavator, you will need to be trained and certified to do so. The operator sits in the cab of the excavator and controls it using various joysticks and pedals. It is important to follow all safety guidelines when operating the machine.
