Skid steer loader is a multifunctional engineering machinery and equipment, which is mainly used for excavation, loading, handling and land levelling operations. It is usually mobile and flexible, easy to operate, efficient and quick, and is suitable for various construction sites and operating environments.
Model :
LTS125Load Capacity :
1500KgOperating Weight :
4800KgBucket Capacity :
0.6m³ODM/OEM :
Provided

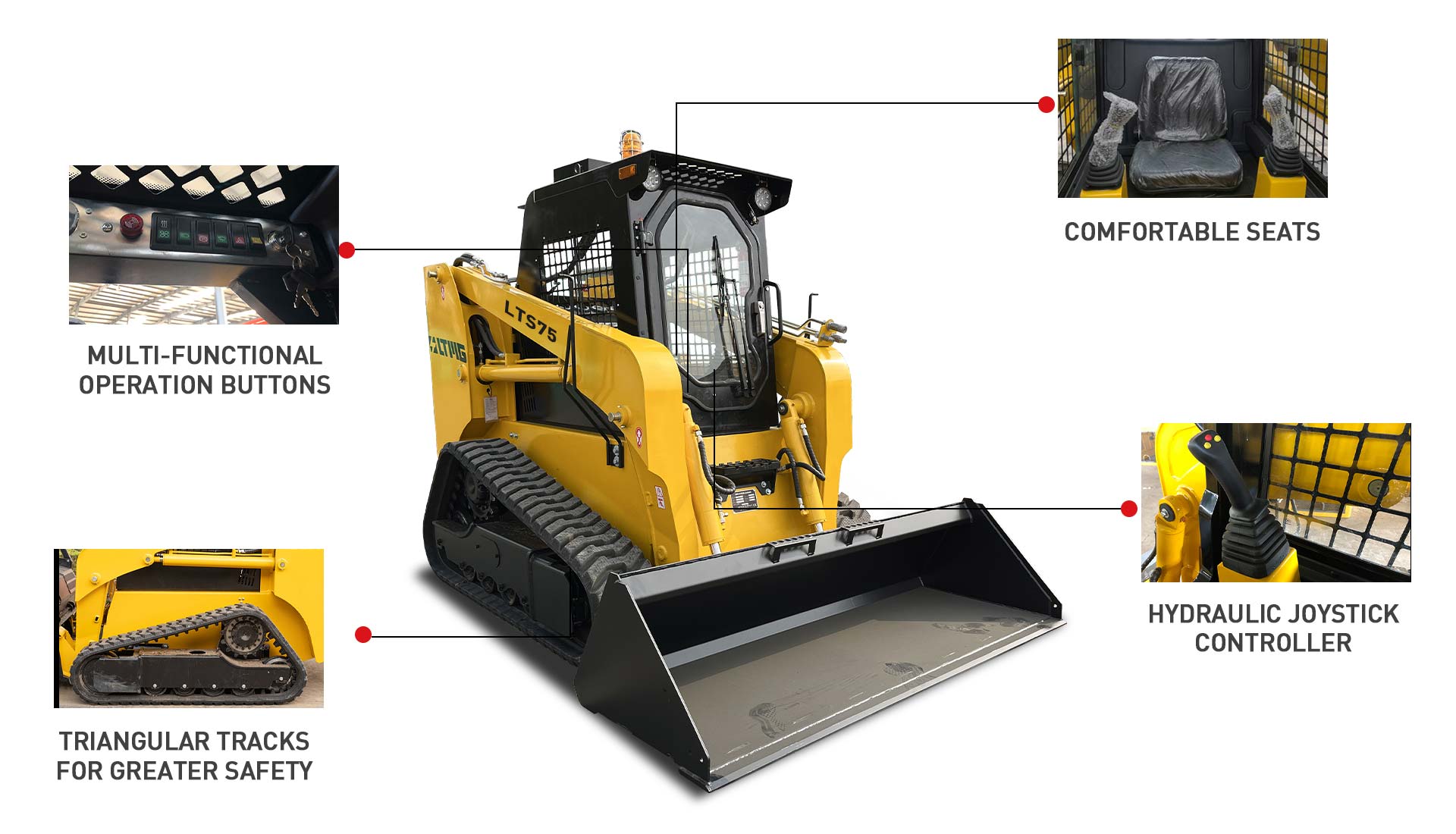

The Features Of Skid Steer Loader
1. Engine: Engines adopt international or China famous brand, the Customers can choose any of them.
2. Travelling system: This series uses a rubber track running system. Ground pressure is low. Adaptable to soft groundand mountain driving operations. With two-speed motor, the speed of the machine reached 18 km/h.
3. Hydraulic quick change: Quick-change coupler in standardization，Equip with over 30 kinds of attachments produced by our factory.
4. Powerful cooling: Equip with oversize radiator and oil tank, for satisfying the continues working requests in tropical zone
5. Comfort Experience: Cabin design in safe and comfortable: big view, all of instruments set up in forward.Front light, rear light, turning light, horn, back up buzzing
6. High hydraulic flow: Configure a high-flow system with a maximum flow rate of 120 Lmin, 130 Lmin, and 140 Lmin.Optional ripper on the rear of the main unit, maximum deep plowing more than 500mm.
| Model | LTS125 | ||
| Engine model | 226B | ||
| Bore x stroke (mm) | 105X130 | ||
| Rated power (Kw) | 70 | ||
| Rpm | 2200 | ||
| Number of cylinders | 4 | ||
| Max. toque (N.m) | 380 | ||
| Displacement (L) | 4.5 | ||
| Max. Speed (kin/h) | 12/18 | ||
| Tire ( track ) model() | 320X84 | ||
| Loading Capacity (kg) | 1200 | ||
| Lifting | Arc-Shaped Lifting | ||
| Bucket capacity(m3) | 0.55 | ||
| Rated flow(L/min) | 88 | ||
| High Flow(L/min) | 122 | ||
| Tank capacity(L) F | 90 | ||
| Weight with bucket(kg) | 4280 | ||
| Height at Maximum Extension (mm) | 4070 | ||
| Hinge Pin Height (mm) | 3150 | ||
| Total Height (mm) | 2160 | ||
| Height to bottom of bucket(mm) | 2983 | ||
| Overall length without bucket ( mm ) | 3000 | ||
| Overall length with bucket(mm) | 3700 | ||
| Dumping angle at maximum height(°) | 40 | ||
| Dumping height(mm) | 2450 | ||
| Dumping reach(mm) | 700 | ||
| Rollback at ground position(°) | 30 | ||
| Rollback fully raised at max height(°) | 104 | ||
| Wheelbase(mm) | 1500 | ||
| Ground clearance(mm) | 200 | ||
| Angle of departure(° ) | 20 | ||
| Front turning radius without bucket mm | 1365 | ||
| Front tuning radius(mm) | 2200 | ||
| Rear tuning radius(mm) | 1742 | ||
| Rear length (mm) | 938 | ||
| Track width(mm) | 1654 | ||
| Width (mm) | 1994 | ||
| Bucket width (mm) | 2030 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

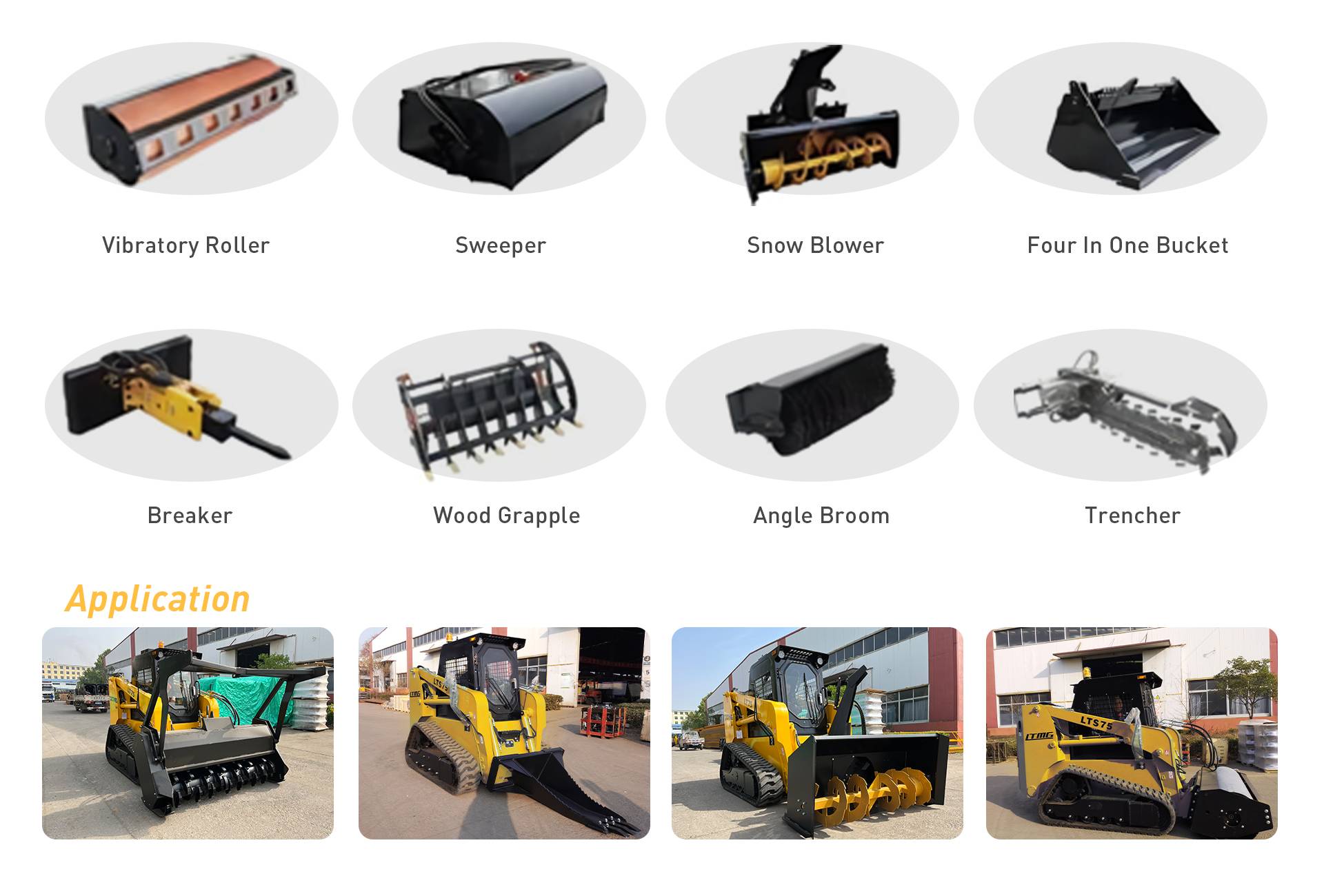

The Optional Attachments Of Skid Steer Loader
