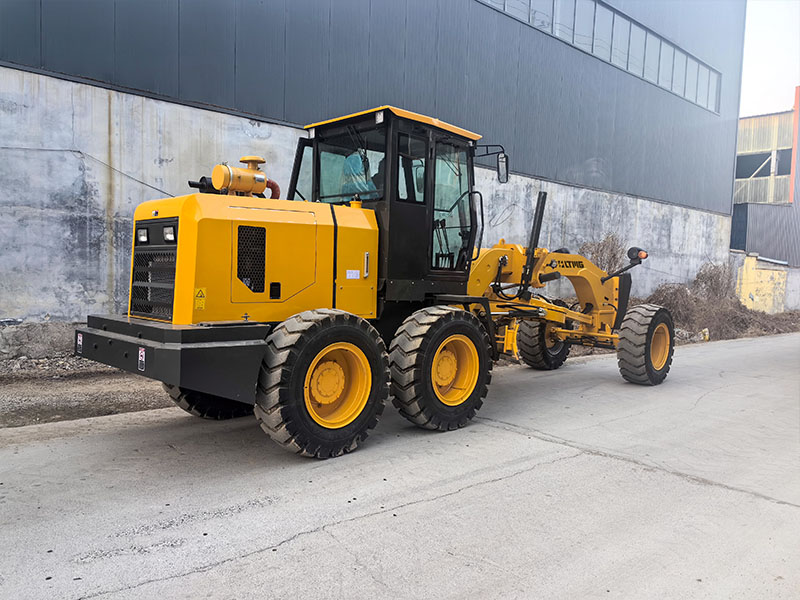

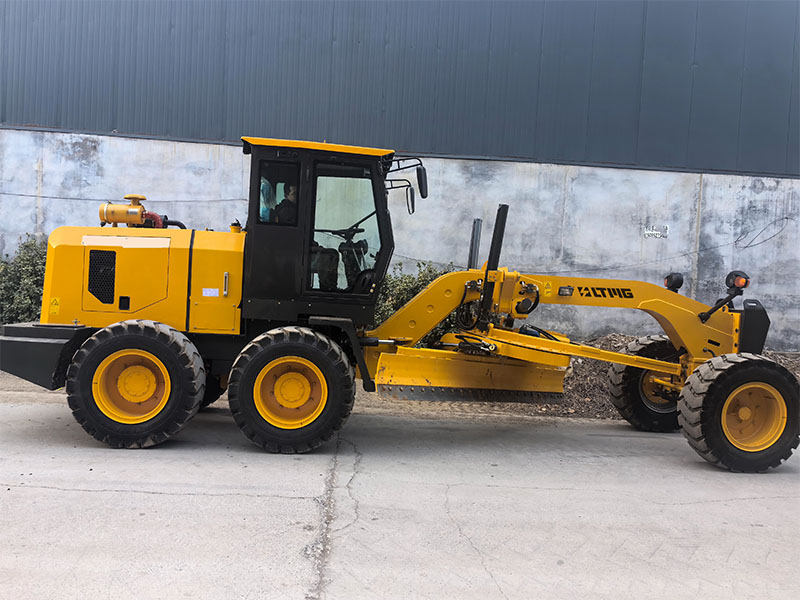

The LTMG 120HP Motor Grader advanced features including high torque reserve, a luxurious full-sealed cab, and internationally renowned hydraulic components. Elevate your grading experience in road construction!
Model :
LG120Power :
124KWWeight :
7450KGODM/OEM :
SuportThe Features Of LTMG 120HP Motor Grader
High Torque Reserve:
Equipped with a high-performance engine boasting a remarkable torque reserve, the LTMG 120HP Motor Grader delivers exceptional power and efficiency, ensuring optimal performance even under heavy loads and challenging terrains.
High-Grade Full-Sealed Luxury Cab:
Step into luxury and comfort with the full-sealed luxury cab of the LTMG 120HP Motor Grader. Designed to provide operators with a superior working environment, the cab offers unparalleled visibility, ergonomic controls, and advanced sound insulation, allowing for extended hours of operation without fatigue.
Advanced Welding Equipment for Critical Components:
Every component of the LTMG 120HP Motor Grader is crafted with precision and durability in mind. Utilizing state-of-the-art welding equipment, including robotic welding technology, ensures the structural integrity and longevity of the grader, even in the most demanding working conditions.
Internationally Renowned Hydraulic Components and Seals:
Reliability is paramount, which is why the LTMG 120HP Motor Grader incorporates only the finest hydraulic components and seals from internationally renowned brands. This ensures smooth operation, minimal downtime, and long-term performance, giving you peace of mind and confidence in your equipment's reliability.
The Specification Of The LTMG 120HP Motor Grader
Model | LG120 |
Overall dimension (L*W*H) | 7500·2050·3000mm |
Min. ground clearance of front axle | 450mm |
Min. ground clearance of rear axle | 410mm |
Wheel track | 1590mm |
Wheel base | 6120mm |
Blade width | 3350mm |
Operating weight | 7450kg |
Max. swing angle of front axle | 16° |
Max. turning angle of front wheels | 45° |
Frame articulation turning angle | 23° |
Cutter diameter | 1250mm |
Blade size (L*W*T) | 3350X500X18mm |
Blade turning angle | 360° |
Blade ground clearance | 450mm |
Blade cutting depth | 260mm |
Blade tilt angle | Front 47° / rear 5° |
Blade moving range | Left 550mm / right 550mm |
Engine | |
Model | Yunnei YN48GBZ |
Emission standard | EUR 2 |
Rated power | 92KW@2400r/min |
Transmission system | |
transmission oil capacity | 70L |
transmission | powershift |
Gear shift | 4 forward, 4 reverse |
Tyre | 16/70-24 |
Rear axle | Big hub reduction |
Max. forward speed | 39km/h |
Max. reverse speed | 29km/h |
Hydraulic system | |
Type | Open type hydraulic system |
System pressure | 16Mpa |
Fuel tank capacity | 105L |
Hydraulic oil capacity | 75L |
Operating system | Multi joystick mechanical control |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.

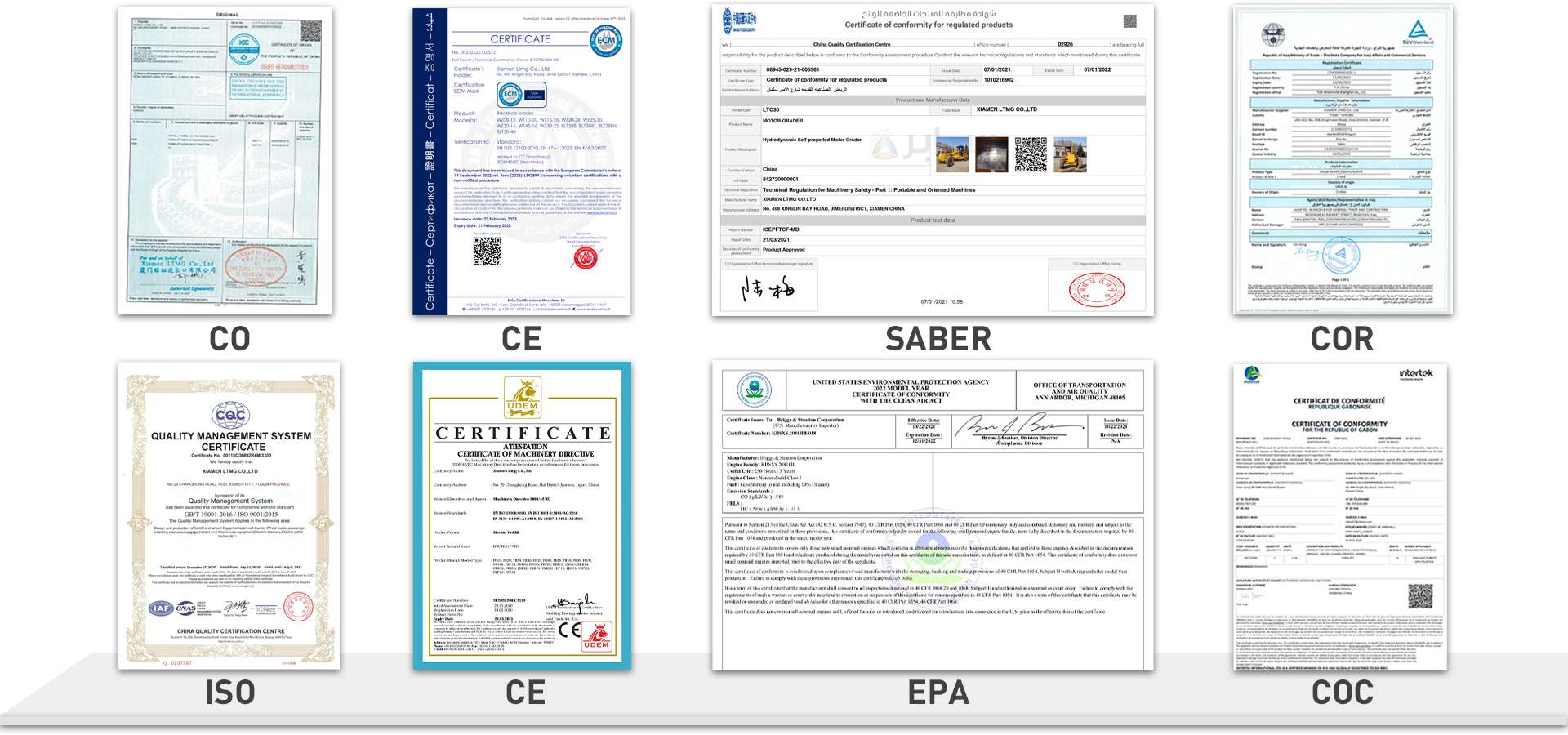

The Certificates of LTMG Motor Grader
The Shipping Plan Of LTMG Motor Grader
FAQ
Q: What types of grading tasks is the LTMG 120HP Motor Grader suitable for?
A: The LTMG 120HP Motor Grader is versatile and suitable for a wide range of grading tasks, including leveling, shaping, and maintaining roads, highways, and construction sites.
Q: What maintenance is required for Road Grader?
A: Regular maintenance, including checking fluid levels, inspecting hydraulic systems, and lubricating moving parts, is essential to ensure the optimal performance and longevity of the LTMG 120HP Motor Grader. Consult the user manual for specific maintenance intervals and procedures.
Q: What is LTMG payment term of the wheel loader machine?
A: T/T, L/C
