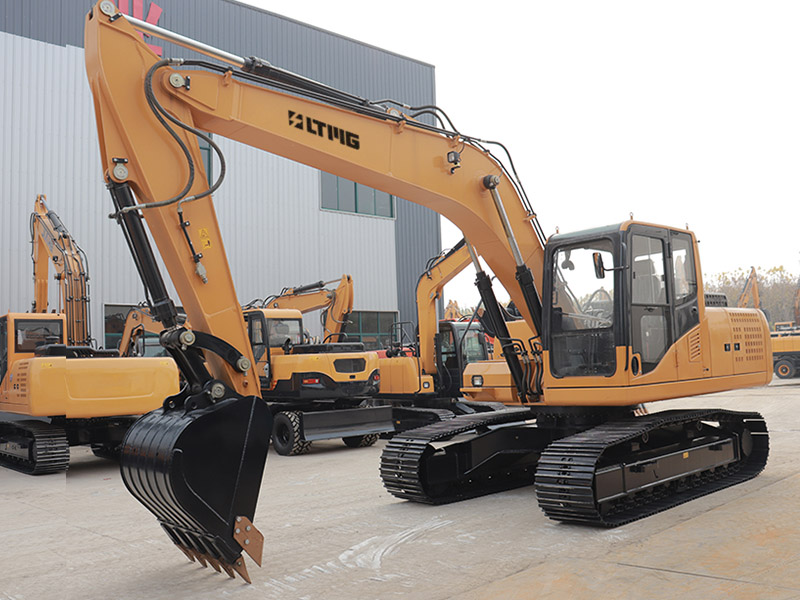

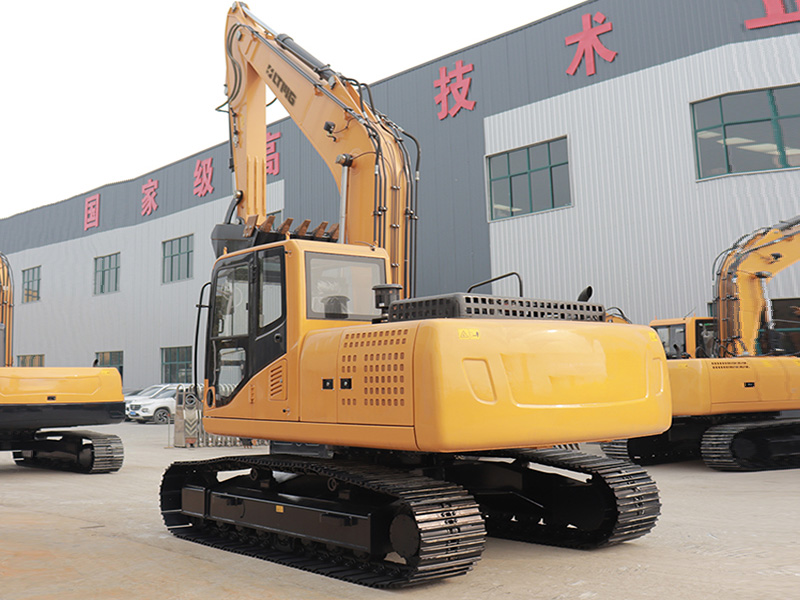

18 ton crawler excavator with Cummins QSF3.8 engine, strong power;With travel reduction gearbox for smooth travel and a good driving experience
Model :
LTE180Operating Weight :
18000kgBucket Capacity :
0.8m³ODM/OEM :
SUPPORT
18 ton Crawler Excavator Feature
1.Equipped with Cummins QSF3.8 is a diesel engine known for reliability, durability and high performance.
2.Its hydraulic system may be able to operate precisely and efficiently due to the high quality pump and valve components used.
3.Equipped with Lonking travel motor, more power and performance
18 ton Crawler Excavator parameter
Performance Parameters |
Unit | LTE180 |
Operating Weight | Kg | 18000 |
Engine Model | Cummins QSF3.8 | |
Rated Power | Kw | 93KW/2200rpm |
Bucket Capacity | m³ | 0.8 |
Max Digging Force | Kn | 98 |
Swing Speed | rpm | 0-12 |
Traveling Speed | km/h | 2.8-4.2 |
Gradeability | ° | 30° |
Operating Range | ||
Max. Digging Radius | mm | 8985 |
Max. Digging Depth | mm | 5975 |
Max. Digging Height | mm | 9430 |
Max. Dumping Height | mm | 6960 |
Tail Swing Radius | mm | 2570 |
Overall Dimensions | ||
Overall Length | mm | 8540 |
Overall Width | mm | 2720 |
Overall Height | mm | 2920 |
Mini.Ground Clearance | mm | 480 |
Track Width | mm | 600 |
Undercarriage width | mm | 2720 |
With technological innovation, our product configuration and parameters will continue to change without notice;
If there is any doubt, the specific confirmation of our international trade sales shall prevail;
FAQ about 18 ton Crawler Excavator
1. What payment terms can we accept?
T/T; L/C; D/P
2. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
3.How about our delivery time?
It usually will take 30 days-45 days after receiving your deposit.
4. Can we provide OEM service?
LTMG industrial can provide customized products according to customers' requirements,both OEM and ODM are acceptable.
