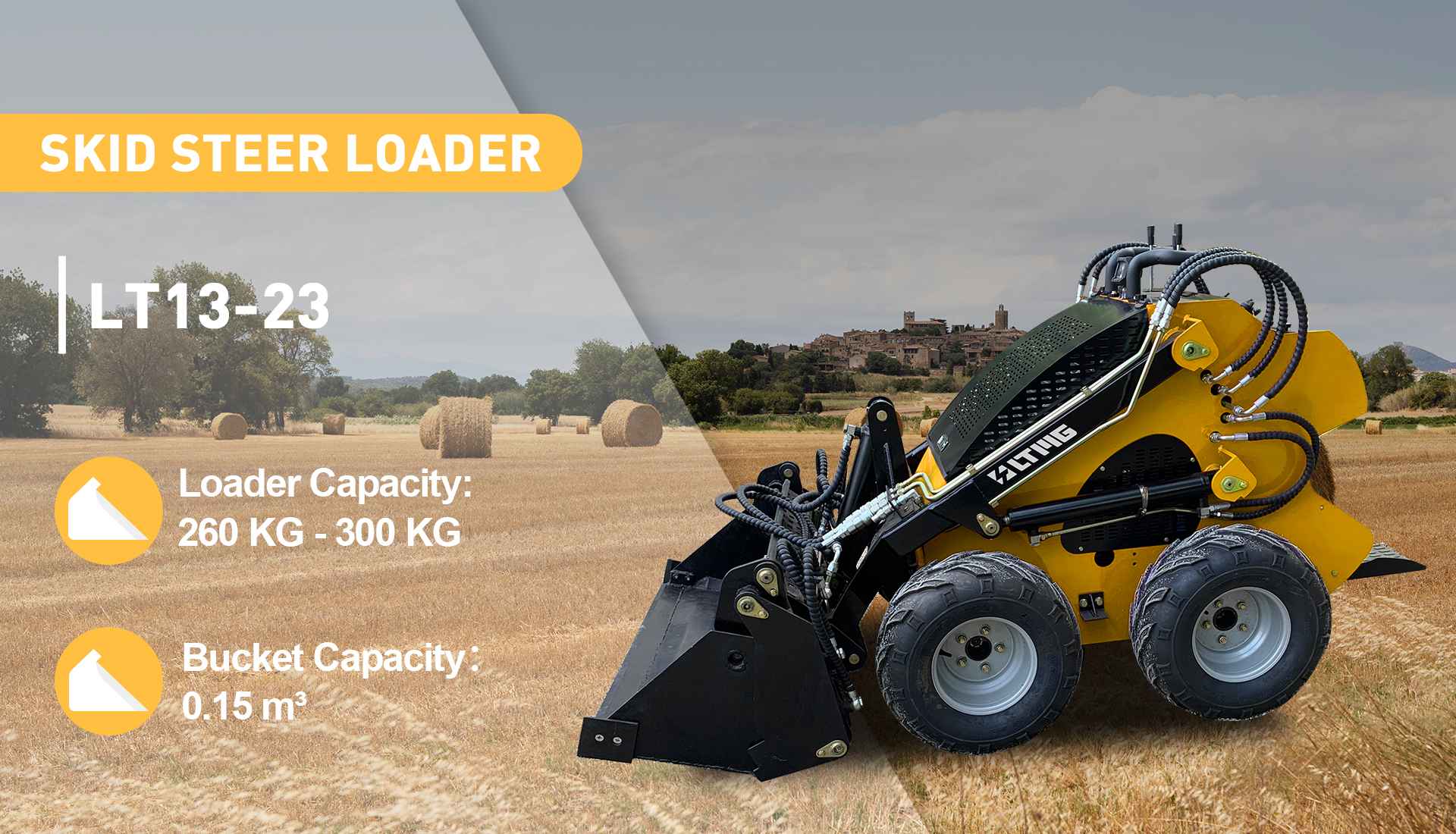

Mini Skid Steer Loader - a compact and versatile machine designed for a variety of applications. Equipped with an original imported gasoline engine, this mini loader delivers reliable performance and power. The high-strength chain drive ensures efficient transmission of power to the wheels, enabling smooth operation and enhanced maneuverability.
Model :
LT14Load Capacity :
260kgsOperating Weight :
880kgsBucket Capacity :
0.15m³ODM/OEM :
Support
Why choose mini skid steer loader？
Compact Size: The mini skid steer loader is designed to be small and compact, making it highly maneuverable in tight spaces and narrow job sites. It can easily access areas that larger machines cannot reach.
Versatility: Despite its small size, the mini skid steer loader is versatile and can be equipped with a wide range of attachments, such as buckets, forks, augers, trenchers, and brush cutters. This versatility allows it to perform various tasks, including digging, lifting, hauling, and landscaping.
Efficiency: The mini skid steer loader is known for its efficiency in completing tasks quickly. It has a powerful engine that provides sufficient power for its size, enabling it to handle demanding jobs with ease.
Easy Operation: Operating the mini skid steer loader is straightforward and user-friendly. It typically has intuitive controls, allowing operators of all skill levels to quickly learn and operate the machine efficiently.
Cost-Effective: Due to its smaller size and lower fuel consumption, the mini skid steer loader offers cost savings in terms of both upfront investment and ongoing operating costs. It is an economical choice for small-scale projects or when space is limited.
Technical Parameter of LT14
| Model | LT14 |
| Type of engine | Single cylinder Diesel engine |
|
Rated power |
10.29Kg |
| Rated speed | 3000rpm |
| Number of cylinders | 1 |
| Air inlet mode | nature |
| Displacement | 0.667L |
| Emission standard | national standard |
| Rated load | 260Kg |
| Max Load | 300Kg |
| Max lifting Force | 450kn |
| Bucket Capacity | 0.13m³ |
| Driving speed | 0-6km/h |
| The sum of three items | 9s |
| system pressure bar | 17-21bar |
| Fuel tank capacity | 5.5L |
| Operating weight | 880Kg |
| Tire | 5.00-8 |
| Maximum operating height(H1) | 2400mm |
| Height to bucket pin | 1870mm |
| overall height(H) | 1300mm |
| Max height on bucket level state | 1810mm |
| Total length without bucket(L2) | 1400mm |
| Total length（with bucket）(L) | 1860mm |
| Max height Unloading Angle | 34° |
| Dumping height(H2) | 1510mm |
| Dumping distance | 460mm |
| Bucket overturning angle on the ground | 27° |
| Max Bucket swing angle | 114° |
| Wheel base | 600mm |
| Ground clearance | 120mm |
| Tail length | 280mm |
| Track width (standard tire) | 600mm |
| overall width(B) | 780mm |
| Bucket width(B1) | 800mm |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

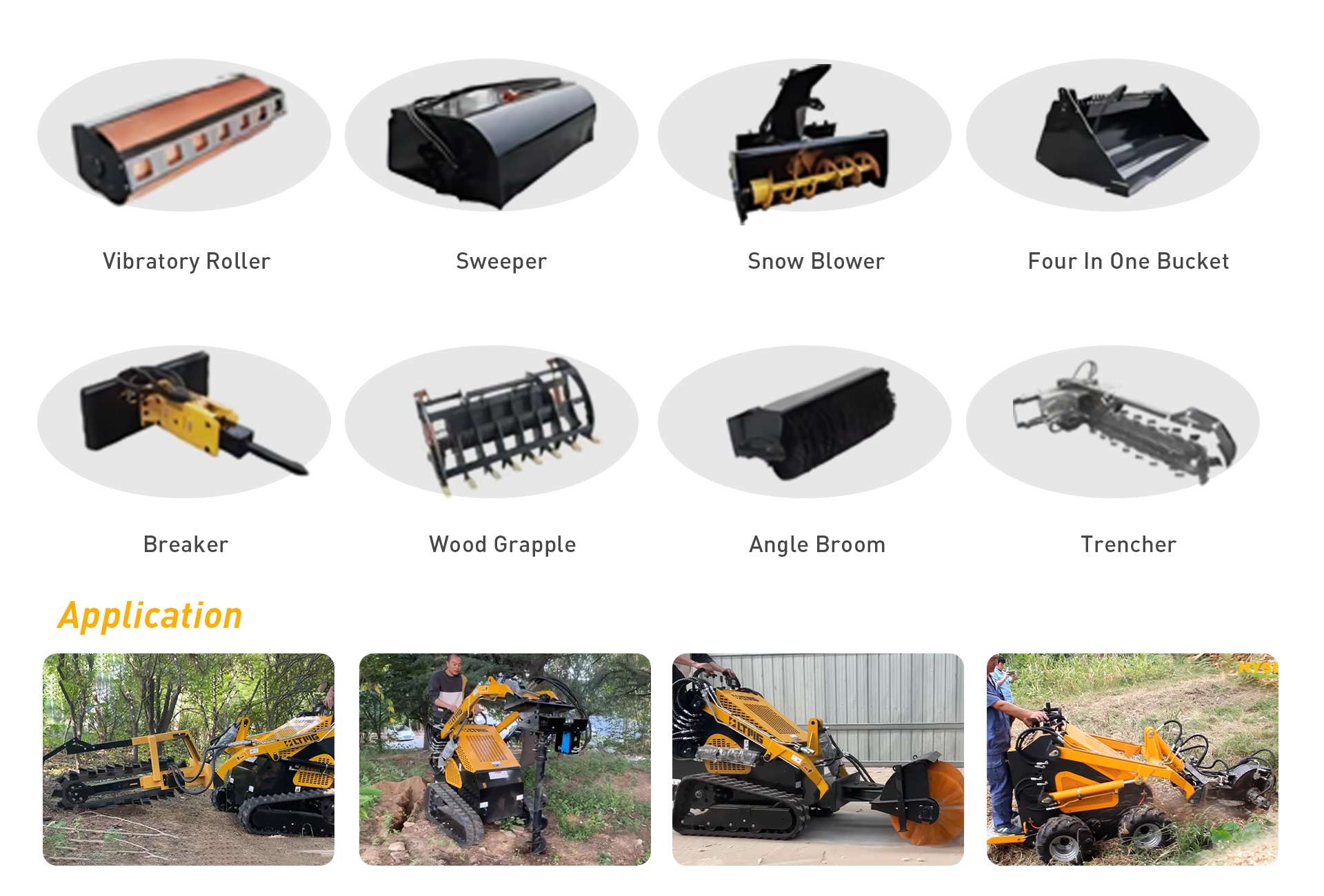

What attachments can be equipped with a mini skid steer loader?
Bucket: The bucket attachment allows you to scoop, carry, and transport materials such as soil, gravel, sand, and debris. It is ideal for landscaping, construction, and general material handling tasks.
Pallet Forks: Pallet forks enable you to lift and move palletized loads, making it useful for warehouse operations, construction sites, and agricultural tasks.

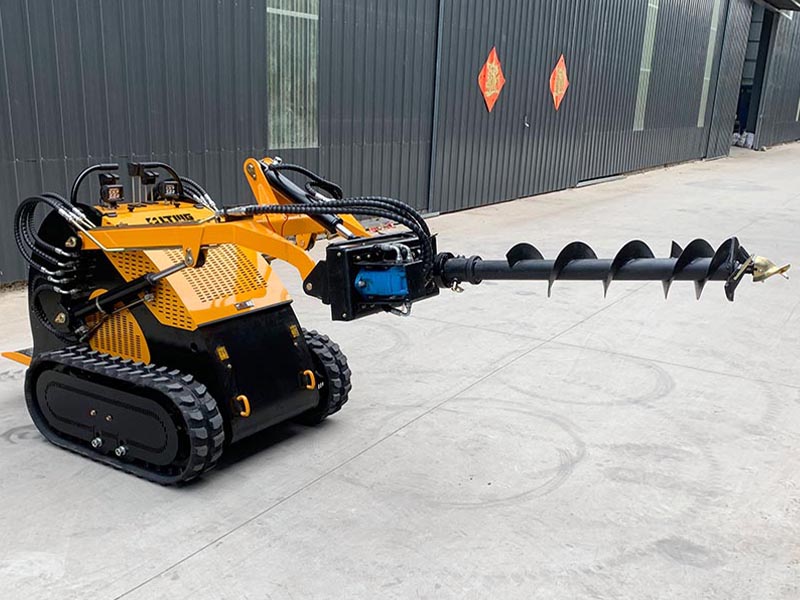

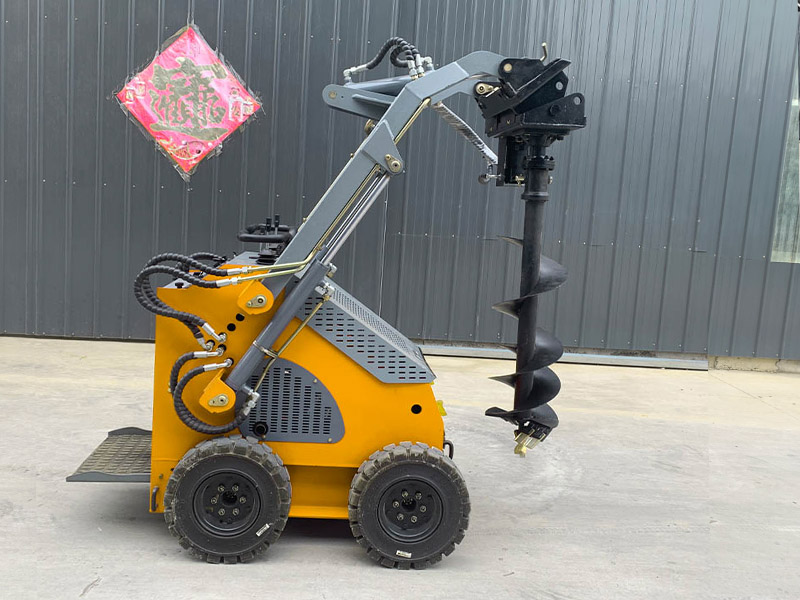

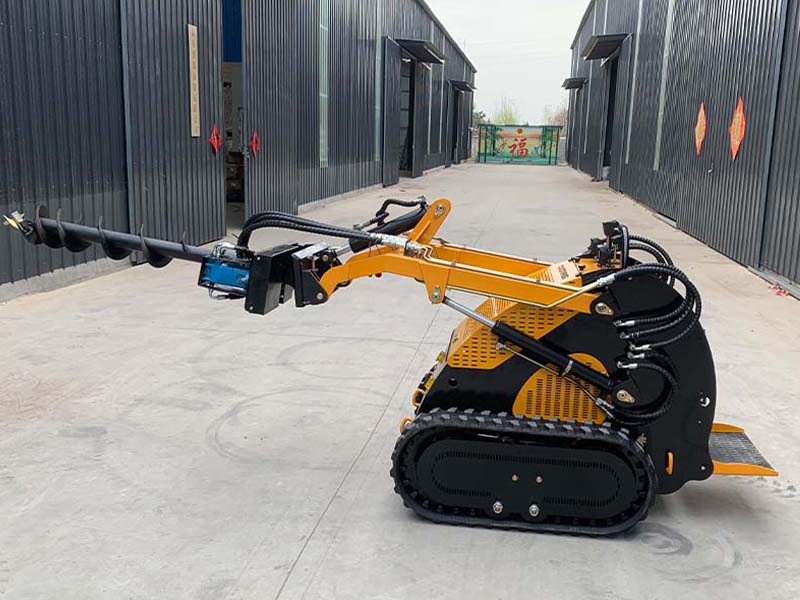

Auger: The auger attachment is used for drilling holes in the ground, making it suitable for fence installation, tree planting, and construction projects.
Trencher: This attachment allows you to dig narrow trenches for utility lines, irrigation systems, and other underground installations.
Grapple: A grapple attachment is used for gripping and lifting heavy objects such as logs, rocks, and debris. It is commonly used in forestry, landscaping, and demolition applications.
FAQ
Q: How can we ensure customer satisfaction?
A: Customer satisfaction is of utmost importance to us. We are committed to delivering exceptional value by offering top-quality products, competitive pricing, timely delivery, and comprehensive after-sales services. We take customer concerns and feedback seriously and strive to address them promptly.
Q: How can I request a quotation?
A: To receive a quotation, there are two options available. You can either submit an inquiry directly on our website or reach out to our sales team via phone or email. Please provide us with detailed information about the specific product you require, including the model, quantity, destination, payment terms, and any other relevant details. We will respond to your request as promptly as possible with a comprehensive quotation.
Q: Can your company handle shipping?
A: Yes, we have a strong partnership with a trustworthy shipping company that specializes in handling the transportation of goods. Our shipping company has a proven track record of efficiently managing shipping dates and closely monitoring the entire transportation process. This allows us to ensure that your shipment reaches its destination on time and enables us to promptly address any unforeseen challenges that may arise during transit.
Q: What is our warranty policy?
A: Our commitment to customer satisfaction is backed by a comprehensive warranty policy. We offer a generous one-year warranty for all our products, during which we provide free maintenance and repair services for any quality-related concerns. Even after the warranty period expires, we continue to provide lifelong technical support and spare parts services. This ensures that you can rely on our products for the long term, with peace of mind knowing that we have you covered in terms of both warranty support and ongoing assistance.
Q: What are the accepted payment terms for the skid steer loader?
A: We accept payment for the reach stacker on a T/T (Telegraphic Transfer) basis. The payment terms require a 30% advance payment, with the remaining 70% balance to be settled before shipment.
