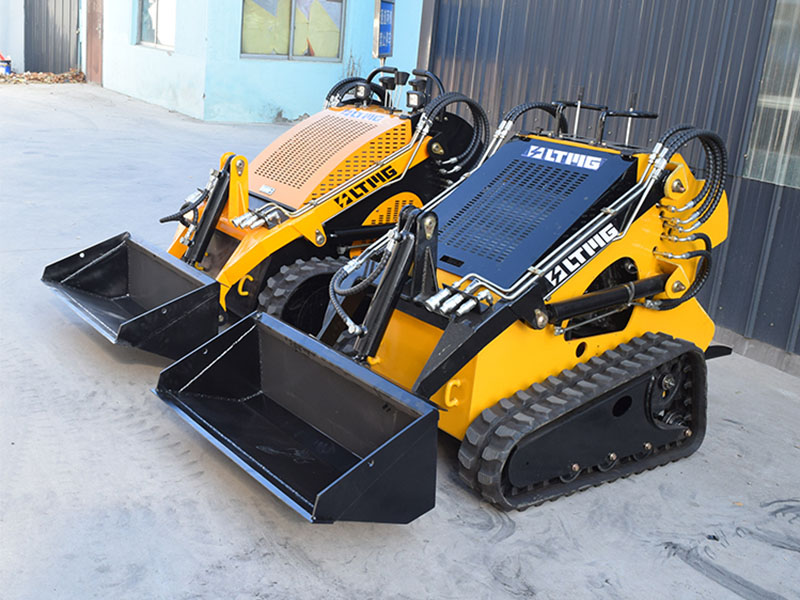

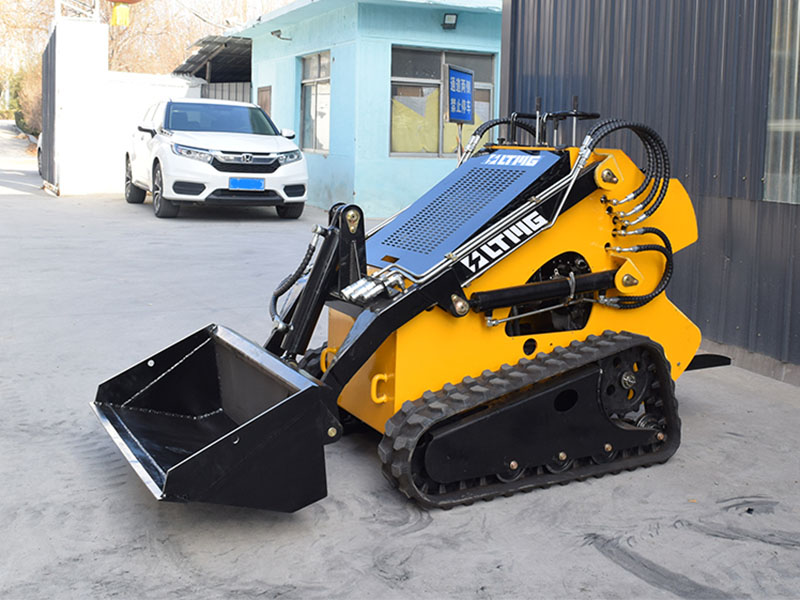

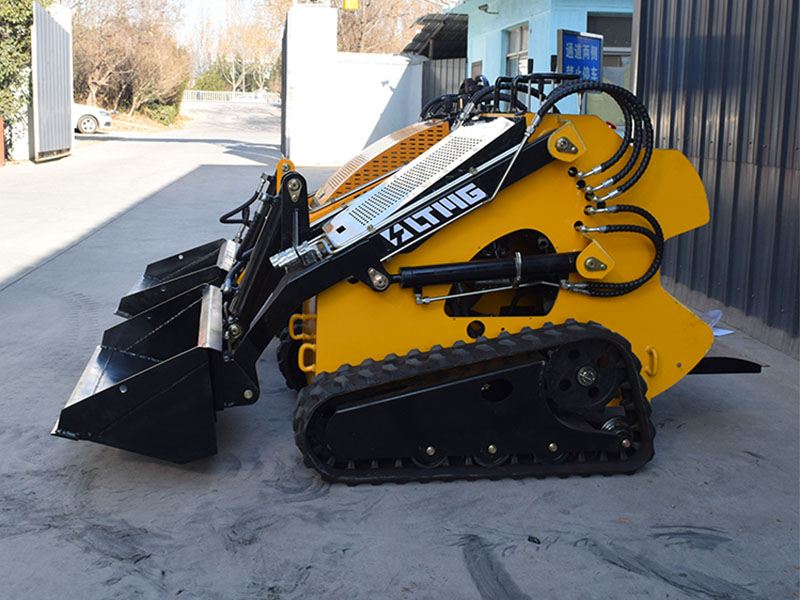

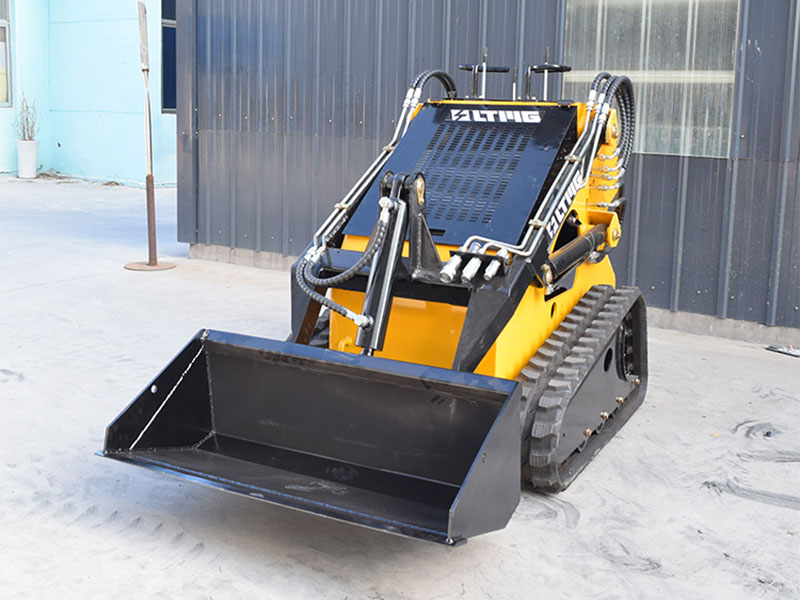

The mini Track Skid Steer Loader provides a safe and efficient operation environment with its compact size, lightweight design, small turning radius, and versatility. It has also obtained CE and EPA certifications.
Model :
LTS20Load Capacity :
300KGOperating Weight :
980KGBucket Capacity :
0.15m³ODM/OEM :
SUPPORT
Product characteristics

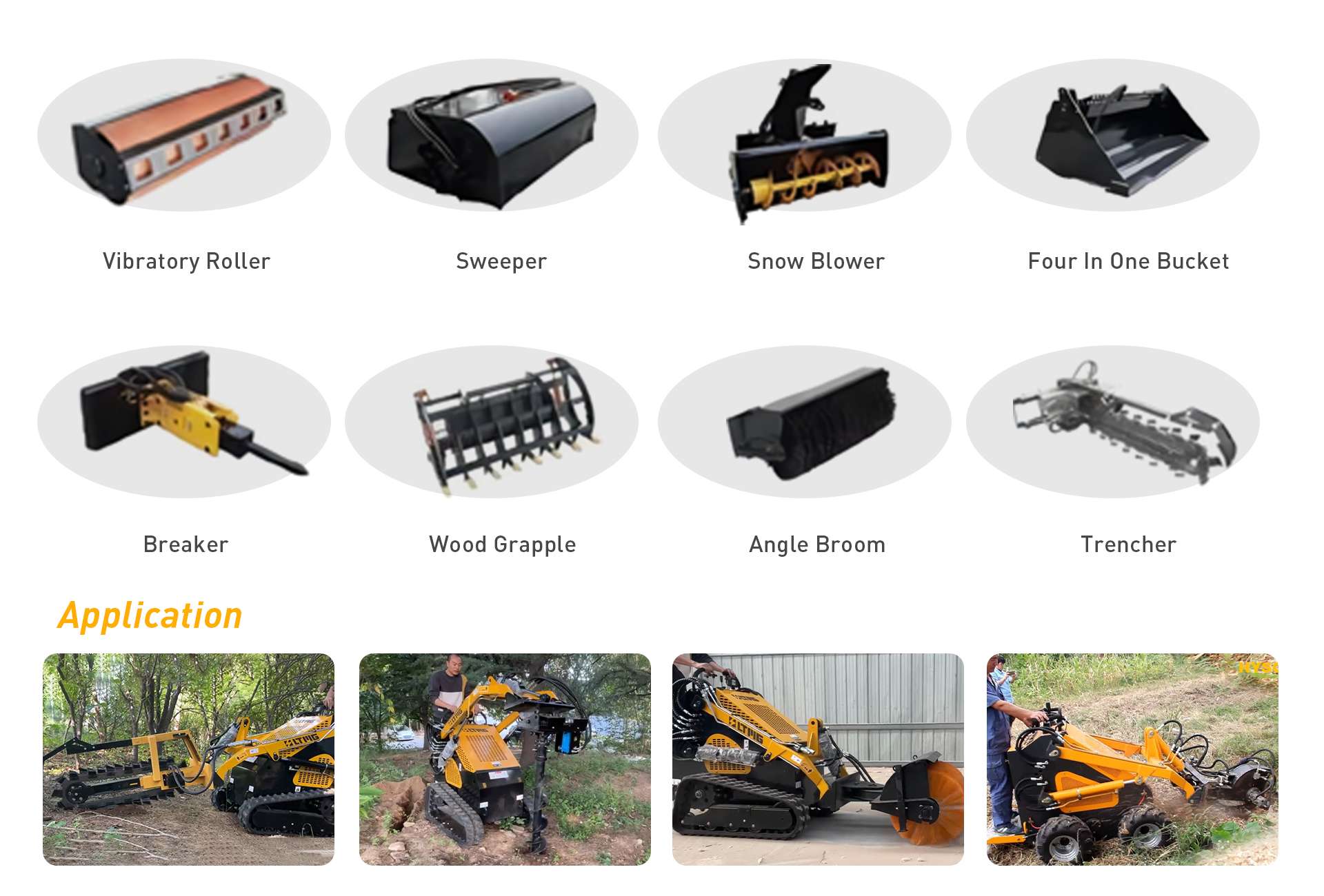

1. The track skid steer loader is extensively utilized for lifting, clearing, loading, broom applications, and even breaking tasks. It can be used in various locations such as farms, pastures, feed factories, residential areas, and factories.
2. It is equipped with an imported engine that comes in its original packaging. With hydraulic control and high power output, it boasts a 23HP engine capacity. You can choose between Briggs Stratton EPA engine and Kubota EPA engine options. It offers double ways of output and can be operated mechanically.
3. It has excellent non-slip properties, making it suitable for use on complex pavements. Whether it's uneven terrain or challenging surfaces, the non-slip track ensures optimal traction and stability.
Technical Parameter
| Model | LTS20 |
|---|---|
| Type of engine | Double-cylinder diesel engine |
| Rated power | 15KW |
| Rated speed | 3600rpm |
| Number of cylinders | 2 |
| Air inlet mode | nature |
| Displacement | 0.997L |
| Emission standard | EU5 |
| Rated load | 300Kg |
| Max Load | 400Kg |
| Max lifting Force | 450kg |
| Bucket Capacity | 0.15m³ |
| Driving speed | 0-6km/h |
| The sum of three items | 9s |
| system pressure bar | 17-21bar |
| Fuel tank capacity | 25L |
| Operating weight | 980Kg |
| Tire | 20*10.0-10 |
| Maximum operating height(H1) | 2450mm |
| Height to bucket pin | 1870mm |
| overall height(H) | 1350mm |
| Max height on bucket level state | 1810mm |
| Total length without bucket(L2) | 1680mm |
| Total length（with bucket）(L) | 2206mm |
| Max height Unloading Angle | 34° |
| Dumping height(H2) | 1510mm |
| Dumping distance | 450mm |
| Bucket overturning angle on the ground | 27° |
| Max Bucket swing angle | 114° |
| Wheel base | 850mm |
| Ground clearance | 150mm |
| Tail length | 280mm |
| Track width (standard tire) | 720mm |
| overall width(B) | 1150mm |
| Bucket width(B1) | 1200mm |
With technological innovation, our product configuration and parameters will continue to change without notice
If there is any doubt, the specific confirmation of our international trade sales shall prevail
Track Skid Steer Loader Factory
FAQ
1.Why choose us?
As a manufacturer, LTMG Industries is committed to providing not only high quality and high performance loaders at competitive prices, but also prompt delivery and comprehensive 7/24 after-sales service.
2.What is the product range of our factory?
LTMG Industry is a large machinery manufacturer specializing in the supply of loaders, forklifts, excavators and related accessories. We can also customize non-standard products according to customers' requirements.
3.What payment terms can we accept?
Normally, a 30% deposit is required in advance and 70% of the balance should be settled before shipment. A 100% irrevocable letter of credit with payment on sight on terms we agree to is also acceptable.
4.What Certificates do we have?
All products meet the requirements of CE & ISO9001 quality system and have obtained CE certificate. We also have EPA and Euro V certificates.
5.How about our delivery time?
It usually takes 15 to 30 days after receiving your deposit. Regarding standard products, we always have them in stock for immediate delivery. However, custom products will take more time, depending on your order requirements.
