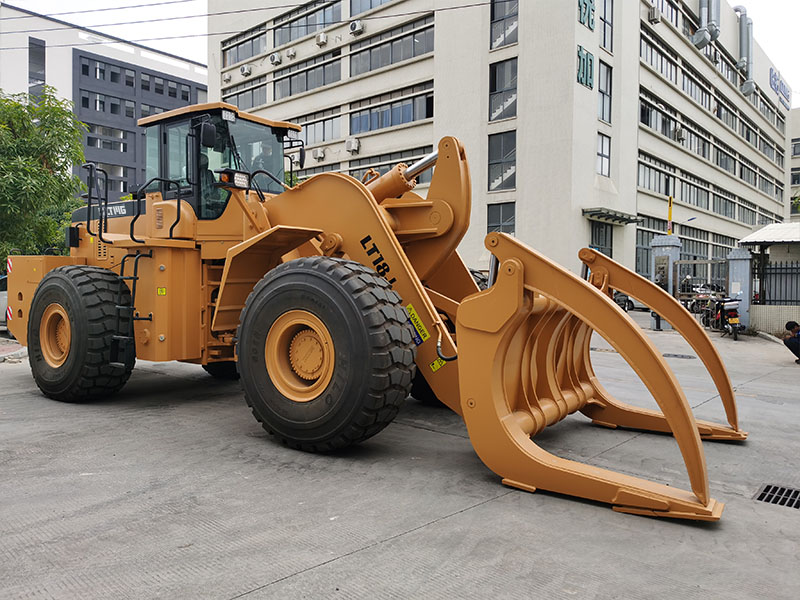

18 ton capacity log loader with Weichai powerful engine, for handling logs.
Model :
LT18JLoad Capacity :
18000kgOperating Weight :
29,000kgODM/OEM :
SUPPORT
18 Ton Log Loader Main Features
1.Break system: Four wheel double-line caliper disc braking system with a gas container in the back as well as our exclusive auto Cooling Technology on break system double assure the reliability and safety.
2.Transmission and torque converter:Chinese Beilian advance gearbox with Caterpillar technique transmission.
3.The heavier counterweight, long wheelbase, heighten ground clearance ensure that the machine could adapt to various tough condition.
4.Quenched integral Anti-wear grapple is made in Japan.Specially designed for the heavy log,effectively prevent any break, prolongs the grapple’s life to a great extent.
18 Ton Log Loader Technical Specifications
Model | LT18J |
Operating weight | 29,000kg |
Engine | WD10G279E211 |
Rated engine power | 178KW |
Rated rotate speed | 2200r/nin |
Max.torque | 920N.m |
Max.dumping height | 3850mm |
Rated load | 18,000 KG |
NO.of shifts | Forward 4 For Reverse2 |
Forward/Reverse I | 0-7km/h |
Forward/Reverse II | 0-11km/h |
Forward III | 0-23km/h |
Forward IV | 0-38km/h |
Grade ability | ≥25° |
Turning angle | 35° |
Overall length | 9850mm |
Overall width | 3230mm |
Overall height | 3800mm |
Wheel base | 3600mm |
Track base | 2410mm |
Transmission | Beilian |
Cycling time | 12s |
Tire type | 29.5R25 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
FAQ about 18 Ton Log Loader
1. Whether front grabber can change to other attachments?
Yes, front attachment could change to bucket, grass grabber, pallet forks, etc.
2.What‘s the warranty of your products?
1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
3. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
4. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.100% L/C at sight issued by world famous bank with good faith is also available.
5. Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is 30 days.
