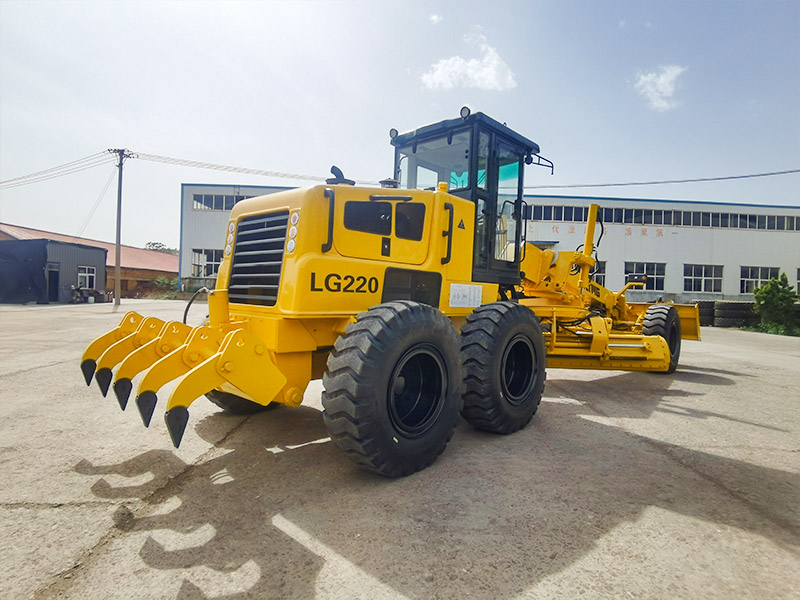

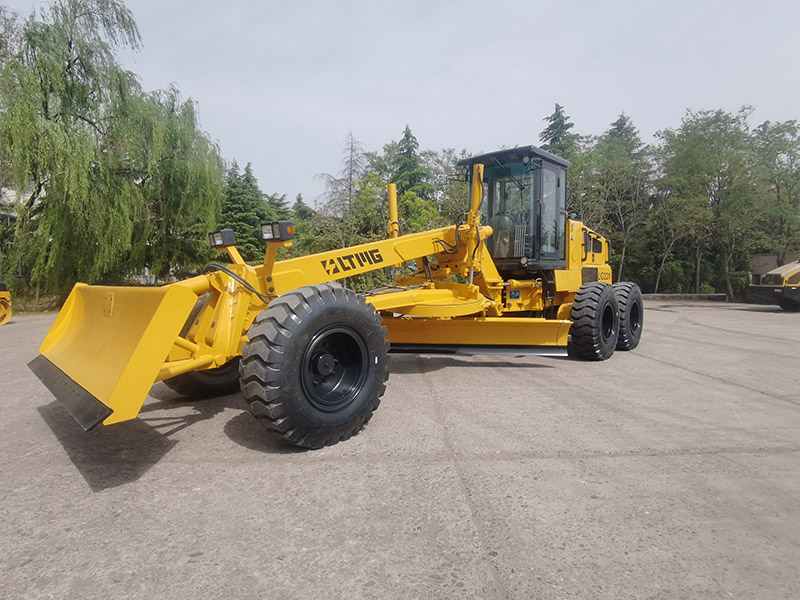

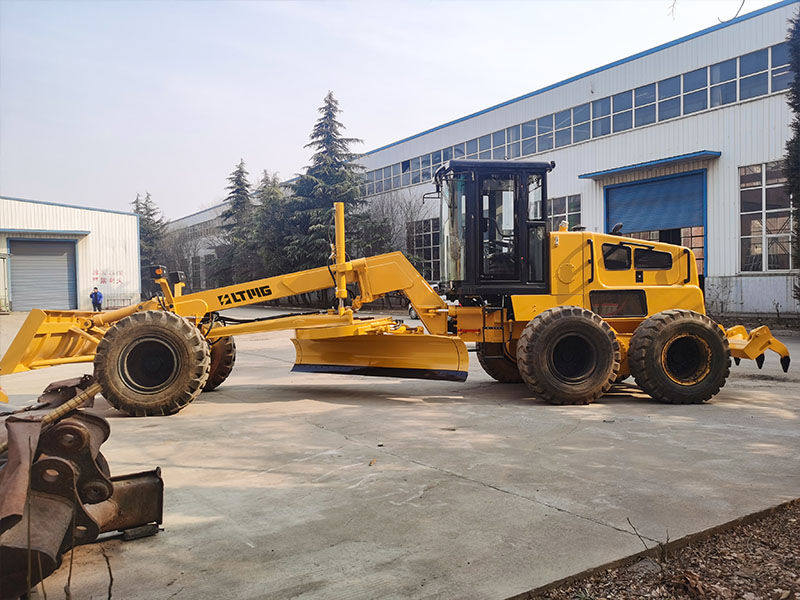

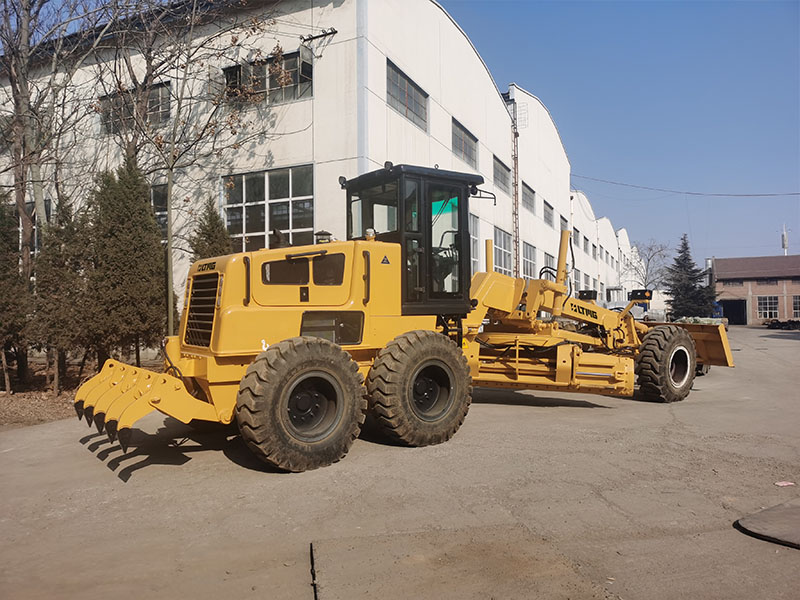

Hydraulic Control 220hp Construction Grader Machine

220hp Construction Grader Main Feature

1. The power configuration adopts Cummins engine, which has strong power and reliable performance.

2. The torque converter produced by German ZF technology is integrated with the gearbox. The front 6 and the rear 3 speed gears meet different working conditions during operation and driving

3. Drive axle with built-in "NO-SPIN" tooth-inlaid free-wheel anti-skid differential and heavy-duty roller chain drive balance box, box-type swing steering front axle, and tires that can be tilted sideways;

4. It adopts the swing arm type connecting rod mechanism operation device which is popular abroad, and is equipped with a maintenance-free rolling disc type slewing device as standard. The angle of the shovel controlled by double oil cylinders can control the angle of the shovel into the soil according to the hardness of the soil;

5. Two sets of imported HUSCO five-way control valves, convenient and sensitive hydraulic control system, equipped with imported blade lift hydraulic balance valve, and the unique hydraulic pin pulling device is the first in China;

6. The central hinge mechanism and the deflection steering front wheel can realize the whole machine crab walking;

7. Adopt accumulator braking system, four-wheel high-efficiency caliper disc service brake, and equipped with inner rising shoe parking brake;

8. All operations are controlled by hydraulic control, makes the machines more precise and predictable ,a complete instrument monitoring system, and maintenance-free batteries;

220hp Construction Grader Parameter

 With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;

Video Of Motor Grader 220 hp

Motor Grader 220 hp FAQ

1. What are the advantages of LTMG compared to other factories?

LTMG is committed to high quality R&D and production, expanding its different product lines to provide customers with one-stop solutions for the construction machinery industry

2. What is our minimum order quantity?

The minimum order quantity for LTMG motor grader is 1 unit and we are able to offer competitive prices

3. What is the warranty period for LTMG 220HP motor grader?

Depending on the product, LTMG offers a minimum warranty of 1 year.

4. What is the delivery time for LTMG 220HP motor graders?

Generally speaking, the delivery time is around 15 to 30 days, depending on whether the product is standard or customised, shorter or longer is possible
