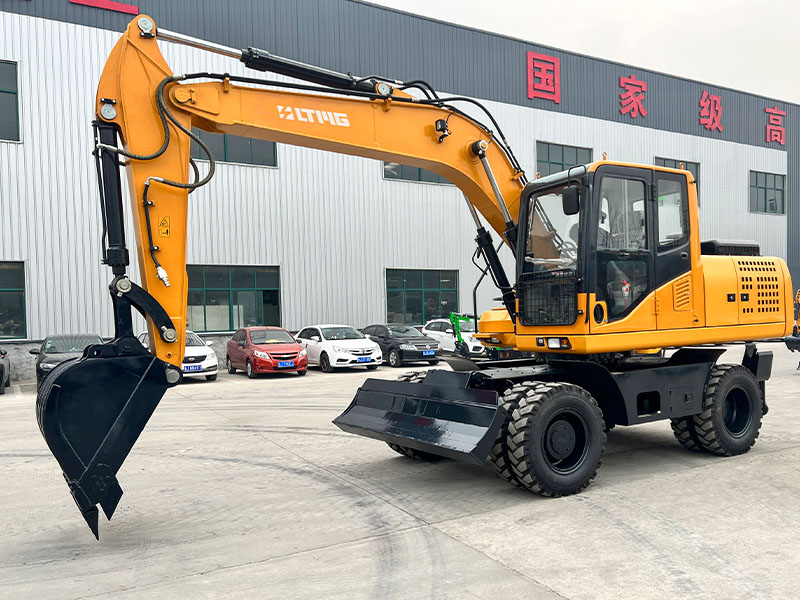

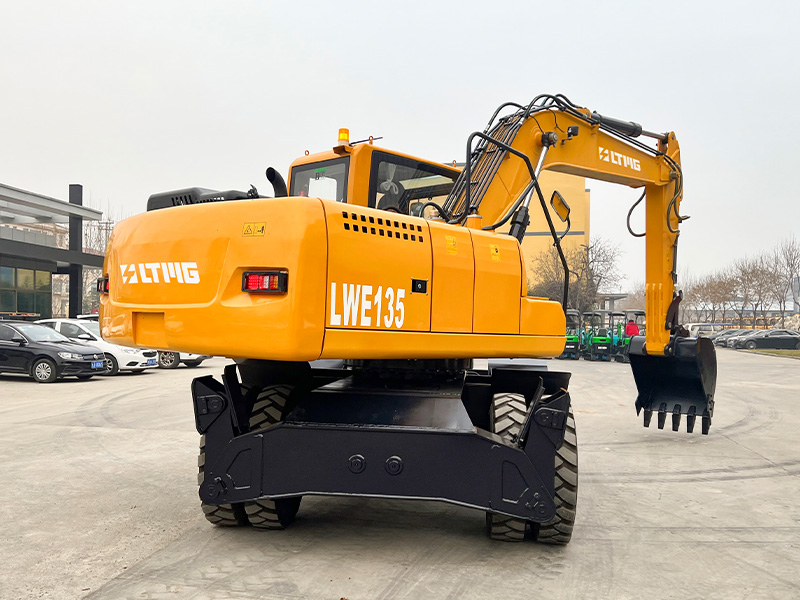

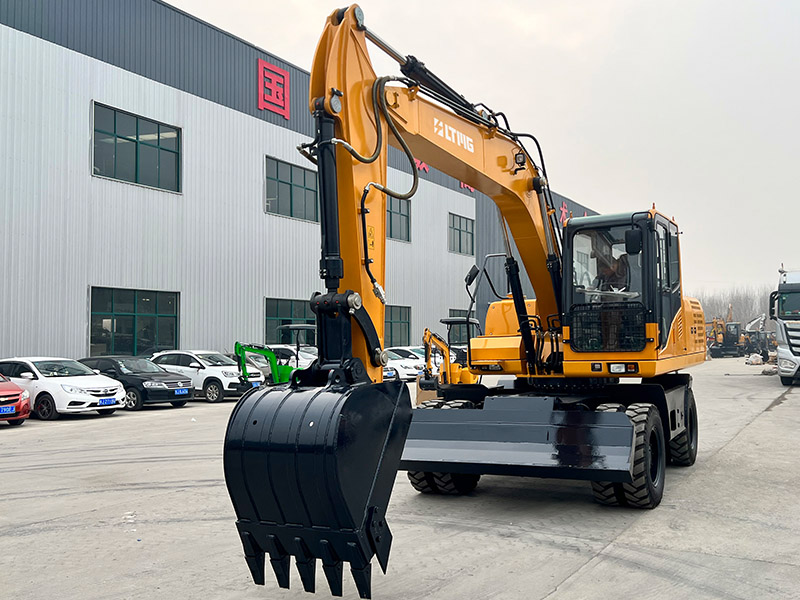

13.5 ton wheeled excavator is a kind of heavy construction machinery, which is widely used in earthmoving engineering, road construction, water conservancy engineering and other fields. The machine is equipped with strong excavation capacity and mobile performance, and can be used for excavation, loading, surface leveling and other operations.
Model :
LWE135Operating Weight :
13500KGBucket Capacity :
0.6CBMODM/OEM :

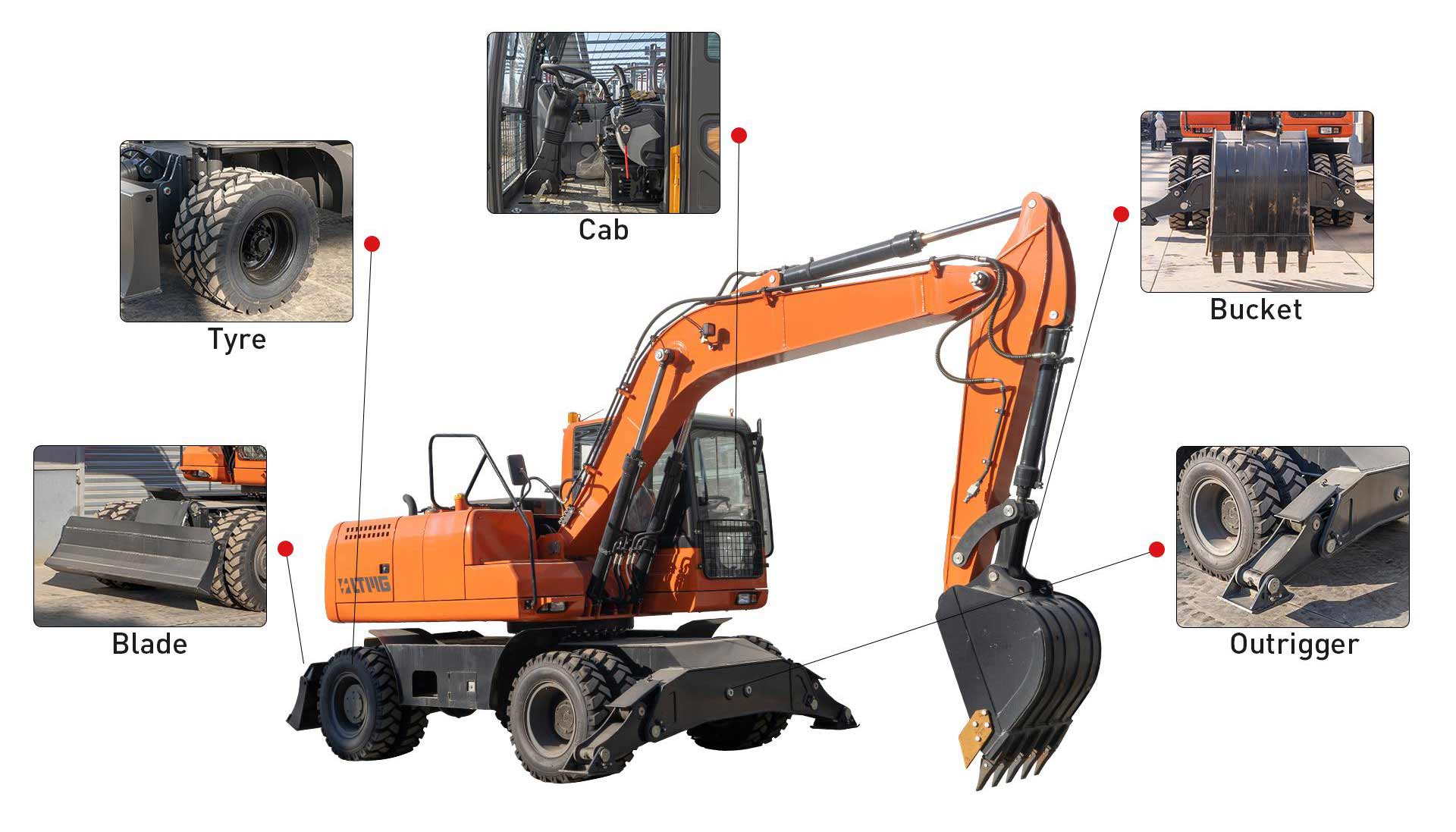

SUPPORTLTMG wheel excavator product features--LWE135
1. Engine: With China Yuchai engine, strong power. According to customer needs, you can also choose Cummins engine
2. Hydraulic operation: LWE135 wheeled excavator, equipped with hydraulic joystick operation, also known as hydraulic pilot control. It helps customers control excavators more accurately.
3. Pump valve system: LTMG 13.5 tons excavator, using South Korea PNM pump, equipped with Japan Kawasaki technology. The valve is made by American Parker
4. Hydraulic pipeline: In order to achieve the work needs of different customers, the wheel loader is installed with hydraulic pipeline for accessories. Customers can freely switch between different accessories to achieve different jobs.
5.Overall design: LTMG strict material selection. The steel used is carefully screened and forged. The structural parts of the excavator are integrated under the operation of the mechanical automatic welding machine. It also comes with a luxurious cab and air conditioning. Improve customer experience.
Product parameters and configuration--LTMG wheel excavator LWE135
LTMG LWE135 Wheeled excavator Specifications | |
Bucket Capacity | 0.6CBM |
Swing Speed | 0-12 |
Gradeablity | 25 |
Max.Bucket Digging Force | 91 |
Max.Arm Digging Force | 55 |
Engine Model | Yuchai |
Power/revolution speed | 92 |
Tire Model | 9.00-20 |
System Pressure | 32 |
Dimension Length*Width*Height | 6770x2550x3370 |
Cabin Height | 3100 |
Axle Base | 2600 |
Wheel(track)Distance | 1944 |
Minimum ground clearance | 350 |
Tail Swing Radius | 2420 |
Max.Digging Height |
8930 |
Max.Dumping Height | 6300 |
Max.Digging Depth | 5180 |
Max.Vertical Digging Depth | 4745 |
Max.Digging Radius | 8200 |
Min.Swing Radius | 2650 |
Max.Dozer Blade Lifting Distance | 400 |
Max.Dozer Blade Cutting Distance | 100 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
LTMG---more than 20 years in the excavator industry

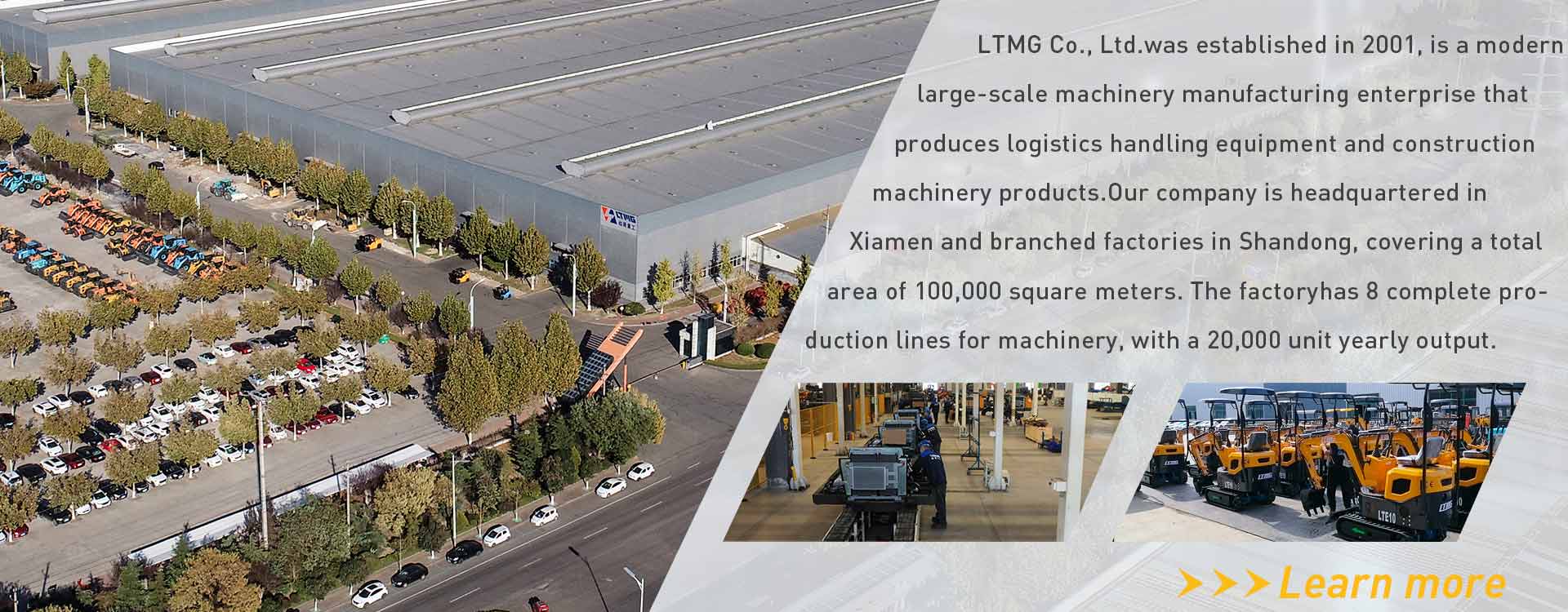

LTMG Machinery Group, founded in 2001. We have more than 20 years of experience in the production and sales of excavator. LTMG's service team adheres strictly to the principles of serving customers. Before and after the sale of the excavator, we will do our best to make customers satisfied and rest assured.

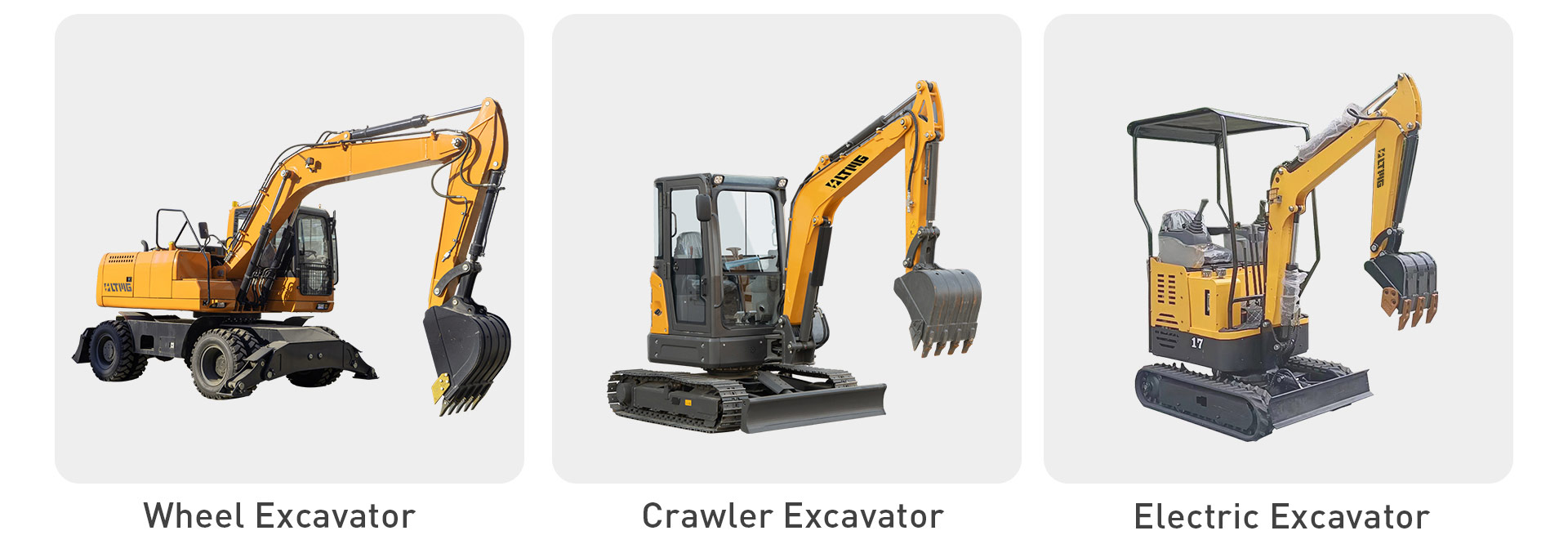

Excavator of the same type products exhibition
LTMG is a company specializing in the production and sale of construction machinery and logistics machinery. In the excavator industry, LTMG does not only produce wheeled excavators, we also produce crawler excavators and electric excavators. Reliable quality and favorable price. Look forward to customer inquiry.
FAQ
Q1: What kind of working environment are wheel excavators suitable for?
A1: Wheeled excavators are suitable for urban construction, road maintenance, municipal engineering, farmland reclamation and other working environments, especially for places that require frequent movement and flexible operation.
Q2: What are the main functions of wheeled excavators?
A2: Wheeled excavators can perform a variety of tasks such as digging, loading, leveling and handling. It is flexible and can be operated with a variety of accessories, such as buckets, jigs, etc.
Q3: What are the advantages of wheeled excavators?
A3: Wheeled excavators are highly maneuverable and flexible, able to move quickly on a variety of terrain. It also enables precise operation in a small space, improving work efficiency and reducing labor intensity.
Q4: Does LTMG have strict quality control over the whole process of excavator production?
A4: LTMG has professional production equipment and production team. Rich production experience. An automated production environment will also reduce errors in product details. LTMG is a trusted excavator manufacturer.
Q5: How to choose the right wheeled excavator model and specifications?
A5: When choosing a wheeled excavator, it is necessary to consider the working environment, work intensity, loading requirements and other factors. It is important to choose the model and specifications suitable for their own needs, and pay attention to the performance indicators, reliability, maintenance costs and after-sales service of the excavator.
