Is it difficult to create a ditch? Come take a look at our skid steer loaders with trencher attachments. LTMG wheel skid loader is equipped with imported hydraulic pumps, motors, valves, and tires from the top three brands in China. Strong power, increased flow, and different attachments can improve the working efficiency of the machine in various working environments.
Model :
LT45Load Capacity :
700KGOperating Weight :
3000KGBucket Capacity :
0.4m³ODM/OEM :
Support
LTMG Product Features - Wheeled Skid Steer Loader with Trenchers
1.The maintenance-free sprocket wheel case and all maintenance parts are easily accessible to realize one-stop maintenances and repairs. The double-speed (High speed and low speed) changeover and super-high flow output achieve high working energy-conservation and efficiency.
2.The new large space cab and optimized ergonomics achieve high operational safety and comfort. 15% more space for operator comfort
3.Strong and Efficient Power Transmission System The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency.The static hydraulic drive technology adopted features stable drive and high efficiency and reliability.The fully-sealed sprocket case and high strength chains feature automatic lubrication and maintenance-free.
4.Compact structure, low turning radius, and strong site adaptability.The quick-change coupling equipped can change attachments rapidly in the construction site.The bucket can automatically maintain level status during lifting to prevent scattering of material and improve working efficiency.
LTMG product specification --- 700kg loading capacity skid steer loader
| Model | LT45 |
| Operating load (kg) | 700 |
| Max Speed（km/h） | 12 |
| Rated flux (L/min) | 62.5 |
| High Flow Flux (L/min) | / |
| Tire（track） model | 10-16.5 |
| Rated power (Kw) | 37 |
| Fuel tank capacity (L) | 70 |
| self weight bucket (kg) | 3000 |
| Bucket capacity (m³) | 0.4 |
| Overall operating height (mm) | 3980 |
| Hheight to top of cab (mm) | 2140 |
| Without bucket length（mm） | 2640 |
| Overall length with bucket(mm) | 3420 |
| Dumping height(mm) | 2380 |
| Width (mm) | 1720 |
| Bucket width (mm) | 1740 |
| Height to bottom of level bucket(mm) | 2913 |
| Dumping angle at maximum height(° ) | 40 |
| Height to bucket hinge pin (mm) | 3080 |
| Dumping reach(mm) | 700 |
| Rollback o bucket on ground(° ) | 30 |
| Rollback of bucket at full height(° ) | 104 |
| Wheelbase(mm) | 991 |
| Ground clearance(mm) | 185 |
| Angle of departure(° ) | 20 |
| Front turning radius without bucket(mm) | 1168 |
| Front tuning radius(mm) | 1958 |
| Rear tuning radius(mm) | 1630 |
| Rear axle to bumper (mm) | 1108 |
| Tread width (mm) | 1450 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

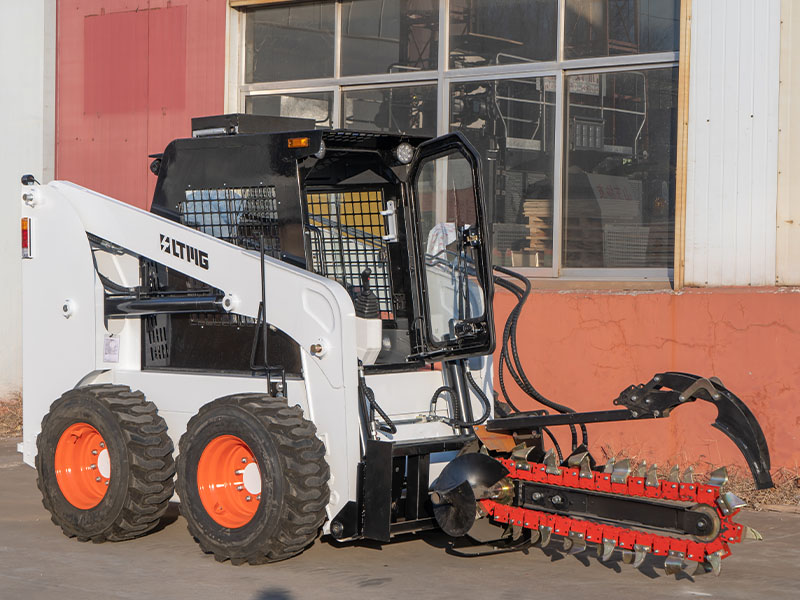

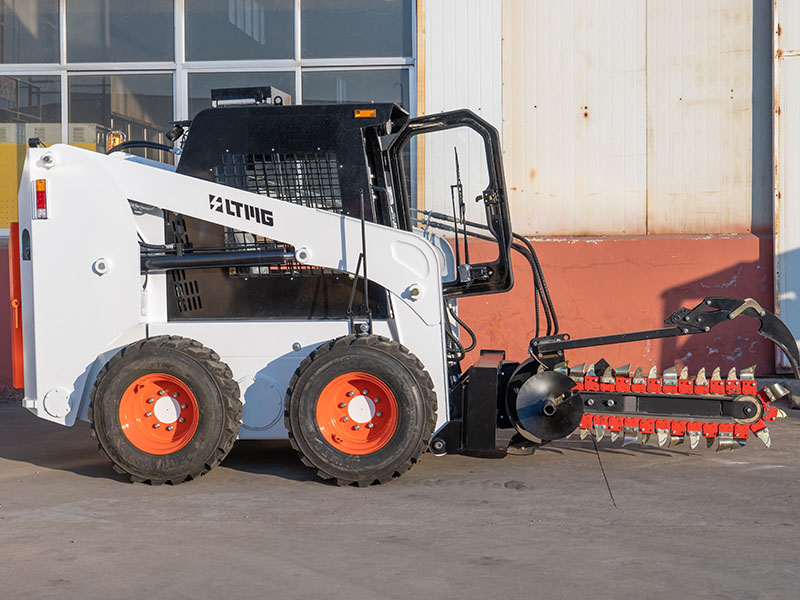

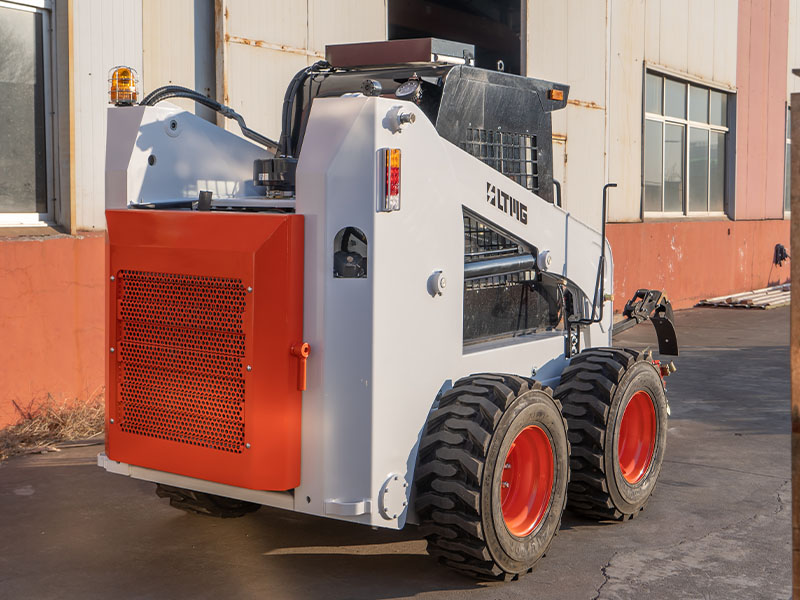

LTMG Product Details - Wheeled Skid Steer Loader with Trenchers

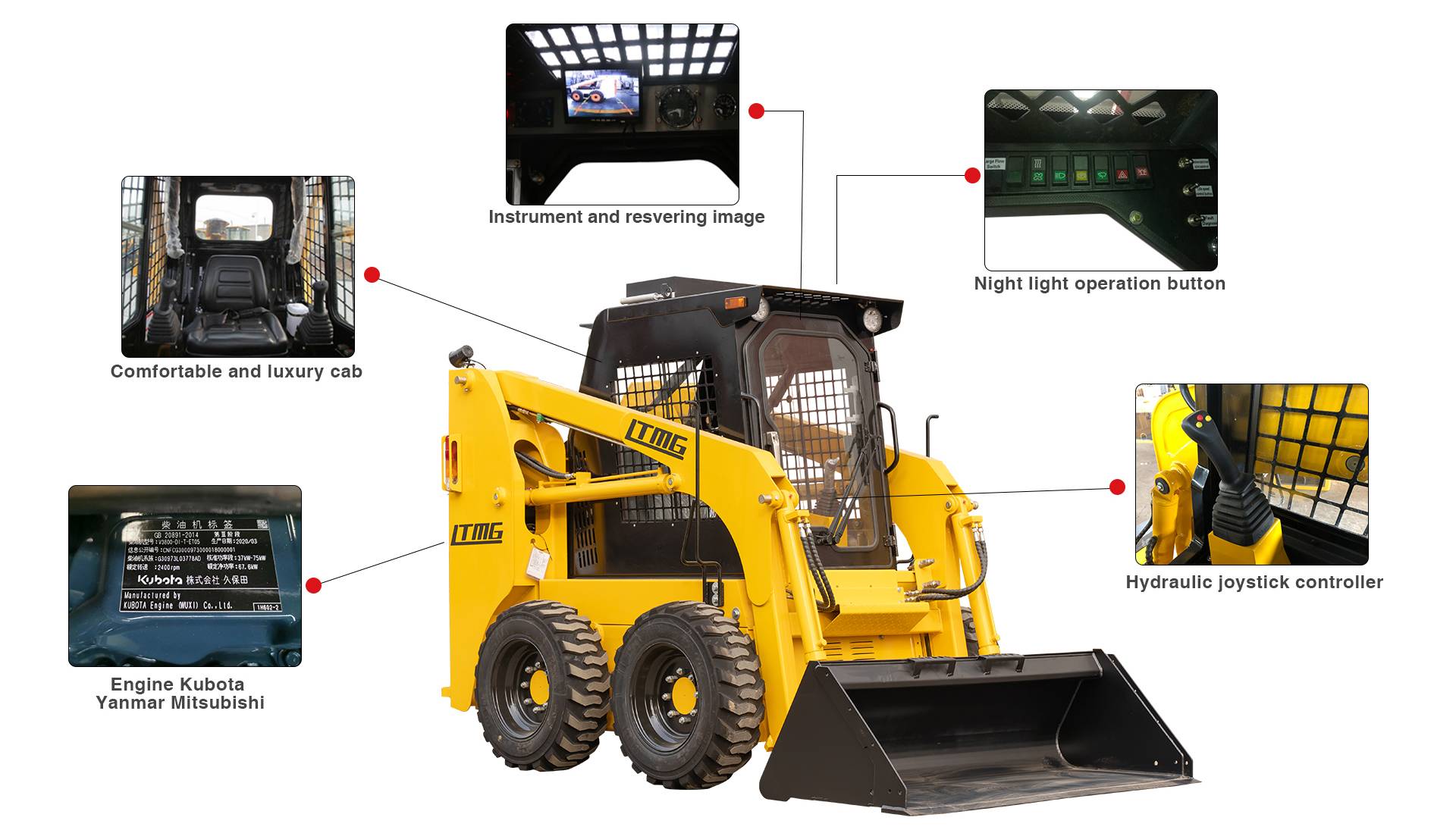

LTMG wheeled skid steer loader, can be installed with cab, hydraulic operating lever, camera, LCD display and so on. It meets the customer's daily working needs and helps the customer to finish the work better. For more options, please make a detailed inquiry

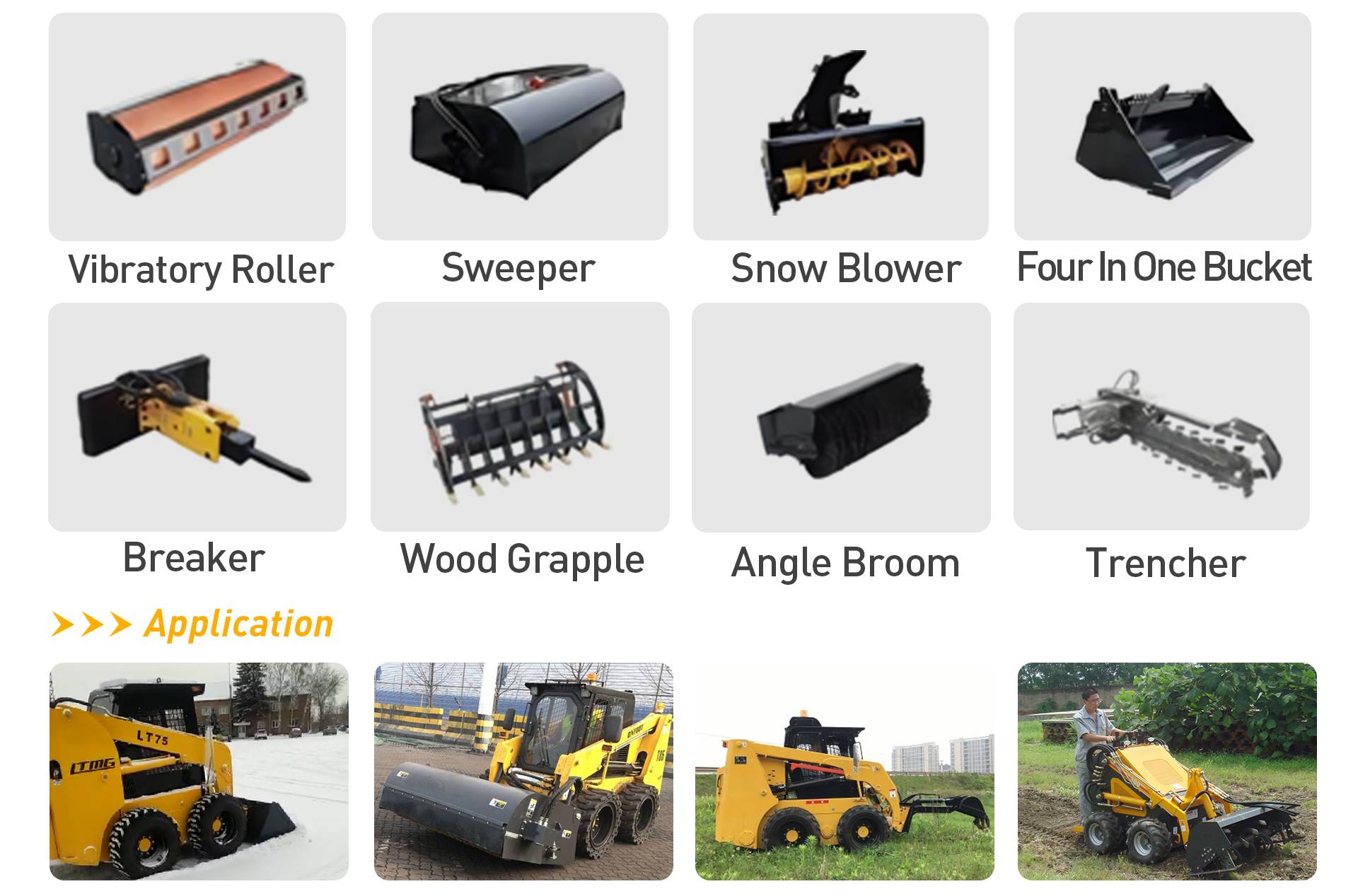

LTMG Skid Steer Loader Attachments Catalog
LTMG skid steer loaders can be fitted with different attachments. Trenchers, sweepers, 4-in-1 buckets, 6-in-1 buckets, augers, hydraulic hammers. We can customize them all as long as the customer has the demand. Customers can also choose to customize their own attachments.
FAQ
1.Do you have agent or distributer?
We are looking for region agent or distributer and hope to grow together with our partners.
2.What’s your marketing strategy?
High quality products with competitive prices and make value as much as possible for customers.
3.What’s your company strength?
We rely on our enthusiastic and young powered team,we keep on making changes and innovation and want to make our machinery tools more helpful, interesting and unique.
4.Do you have your own factory or just trading company?
Yes,we have our own factory and we also make investment for our strategy cooperated factory,we know we can’t do everything but know what we should do!
5.What is the payment term?
1.T/T 30% as deposit and balance paid before shipment or T/T full payment in advance.
2.Irrevocable L/C at sight and issued by world famous bank
6.How about warranty and after sale service?
1 year or 2000 working hours which occurs first. If misoperation caused component damage or normal wear and tear we can provide spare parts but will be charged,the cost depends on specific components.
