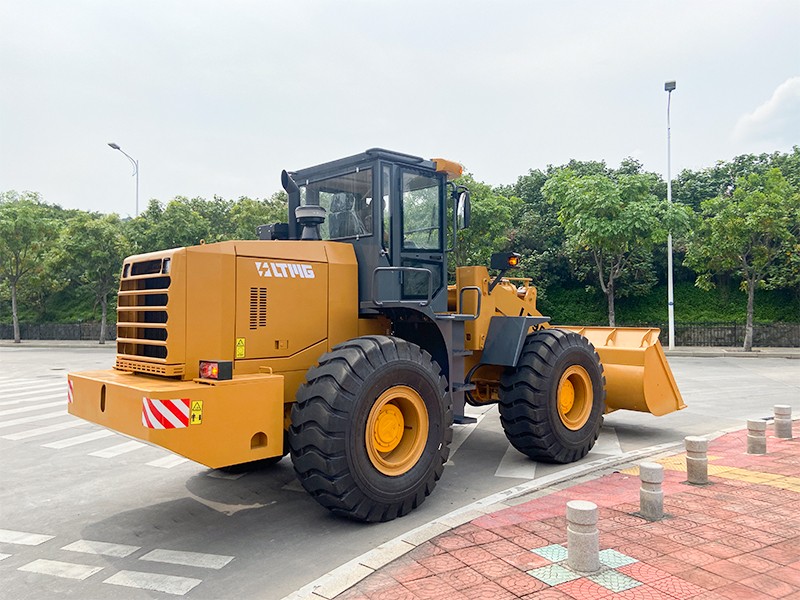

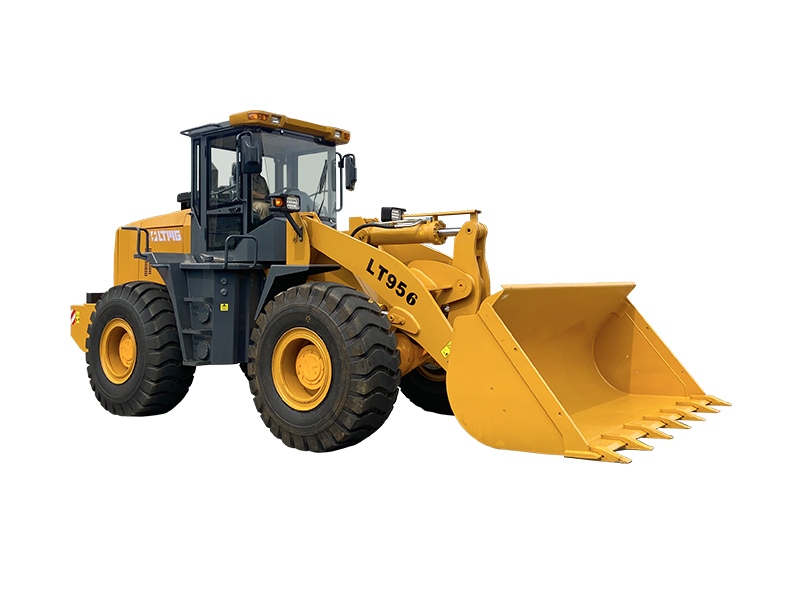

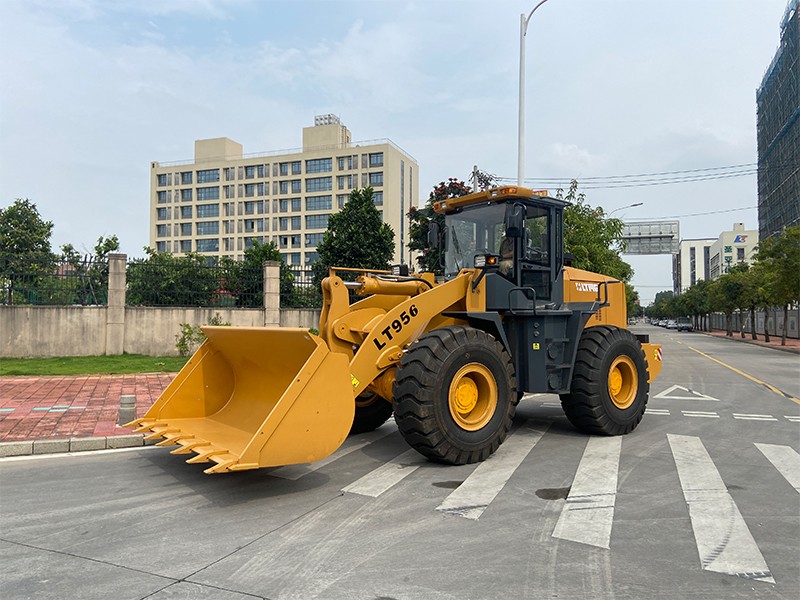

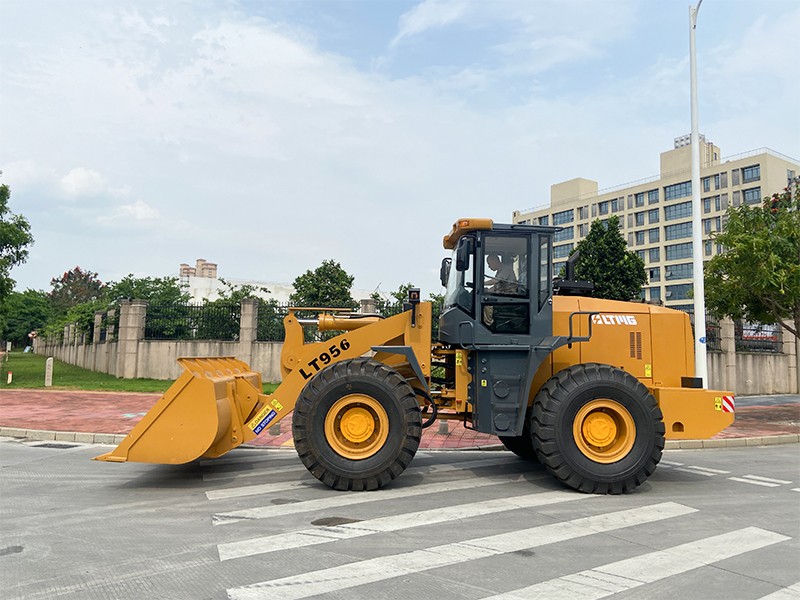

The new 5-ton wheel loader leads the development trend of the loader industry. It has excellent features to efficiently complete a variety of loading tasks. Powerful loading capacity, easy operation, adapt to various working conditions and road conditions. Our customers are full of praise for its performance and believe that its operation is stable and efficient, which greatly improves work efficiency.
Model :
LT956Load Capacity :
5000KGOperating Weight :
16500KGBucket Capacity :
3m³ODM/OEM :

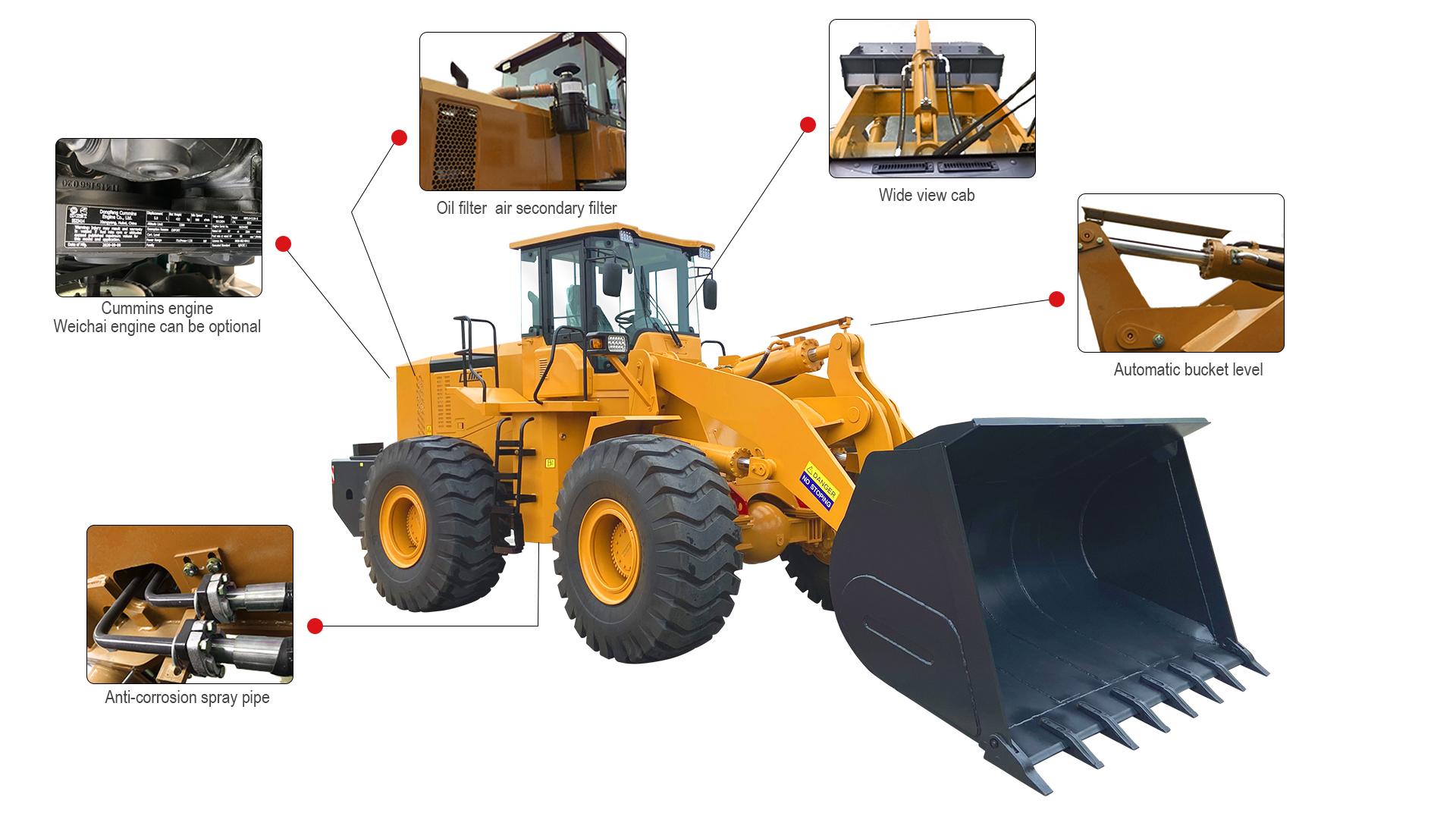

SUPPORTLTMG Product Features -5 Tons Wheel Loader
1. Heavy load efficient
Using 178KW Weichai WP10H national four high-speed heavy-duty engine, large torque, faster power improvement, special adjustment of power transmission, strong power, three-level power control, reasonable selection according to working conditions, high working efficiency.
Large tonnage heavy duty frame, hinged with double tapered roller bearings, high bearing capacity, intermediate hinged, small turning radius, smaller operation allowed range, faster and more efficient loading and unloading.
With enhanced heavy-duty bridge box, the power transmission is more stable and powerful, the output torque is larger, and the life span is increased by 40%.
2. Smart and comfortable
New-generation body, large cab space, can sit or lie down; Equipped with micro-pressurization system, indoor cleanliness is improved more comfortably; Equipped with large capacity dual-use air conditioning, with defrost function, driving environment is more comfortable.
The adjustable direction column and double slide rails are used to adjust the seat to meet the driving comfort needs of different groups.
The 7-inch large-screen intelligent display terminal is placed on the right side, the front field of view is wider, and the blind area of vision is reduced. The vehicle status information and working environment are clear at a glance, the integrated rear view system improves the rear view field, and the whole machine operation is safe.
3. Safe and reliable
The braking system adopts four stages of water removal, namely, heating pipe + drying tank + blow back tank + air storage tank, which makes the braking system safer. Drying tank with automatic heating function, winter worry-free.
Equipped with a new cab, stamping molding, better sealing, anti-noise design, more comfortable driving. Intelligent control, information mutual integration, control unit data sharing and interconnection, to achieve adaptive, intelligent decision-making functions.
Bucket optimization design, using large deflector, high wear-resistant steel, full bucket rate increased by 10%, higher work efficiency, with high strength boom, shovel digging easier.
Bucket automatic leveling function, improve the reliability of the whole machine, more convenient operation.
LTMG 5 Ton Wheel Loader Product Specifications
Model | LT956 |
Rated power | 162KW/2200r/min |
Engine | Weichai,Shangchai CAT,Cummins |
Overall dimensions | 7600mm*3000mm*3380mm |
Operating weight | 16500KG |
Rated loading capacity | 5000KG |
Bucket capacity | 3m3 |
Bucket width | 3000mm |
Wheel base | 2870mm |
Tread width | 2250mm |
Dumping height | 3140mm |
Dumping reach | 1120mm |
Turning angle | 35°± 1° |
Max.climbing Gradient | 28° |
Turning radius | 6650mm |
Max.breakout forth | 145kN |
Max.torque | 745.3N.m |
Lifting time | ≤6.8s |
Hydraulic cylinder time | ≤12.55s |
Specification of tire | 23.5-25 |
Transmission | Planetary,ZF WG200 |
Dumping Height | 3200mm |
Travel speed | |
Forward gear I | 11.5km/h |
Forward gear II | 38km/h |
Reserve gear I | 16km/h |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

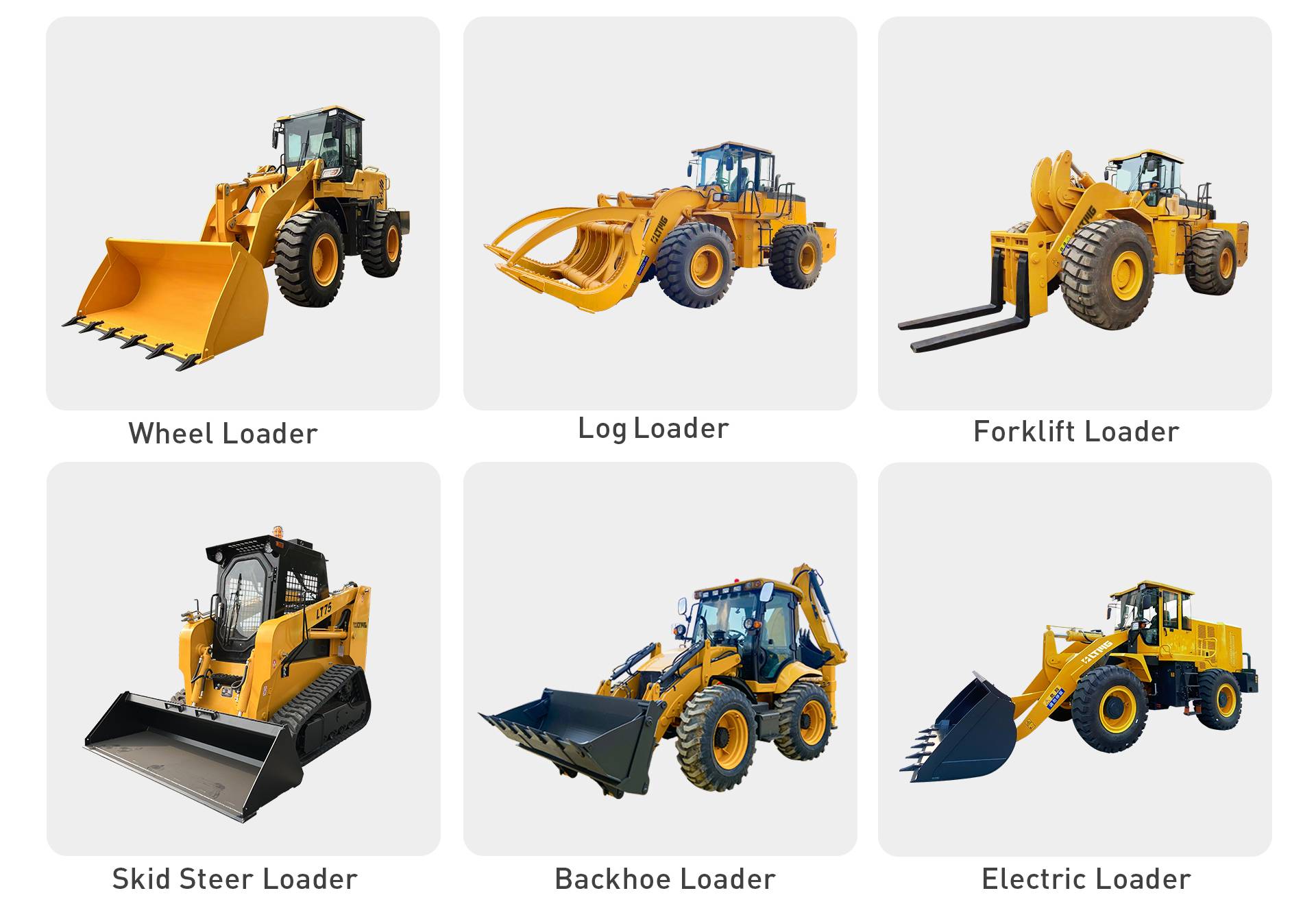

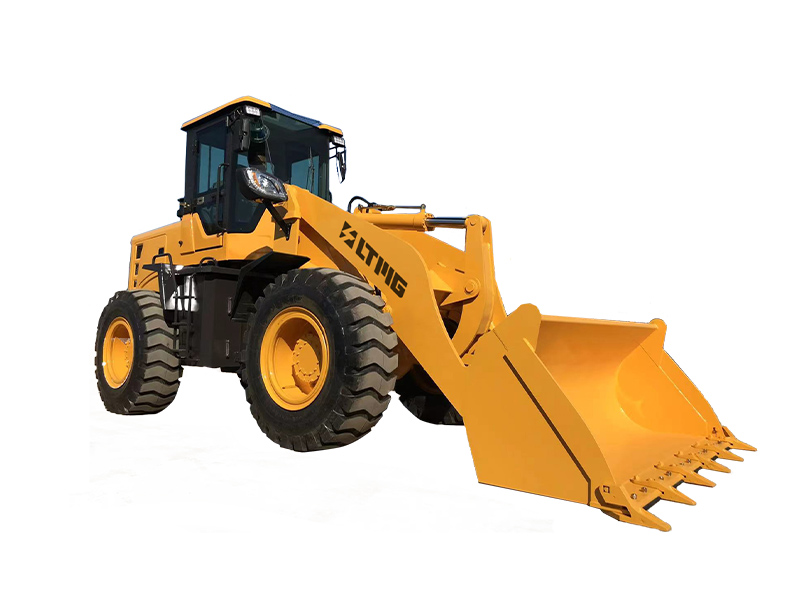

LTMG Loader Deformation Products
Wheel loader is a kind of common road engineering machinery products. After years of technical research, LTMG has mastered the different creations in terms of loaders. LTMG can produce wheel loaders, backhoe loaders, skid steer loaders and more. We welcome your inquiry.

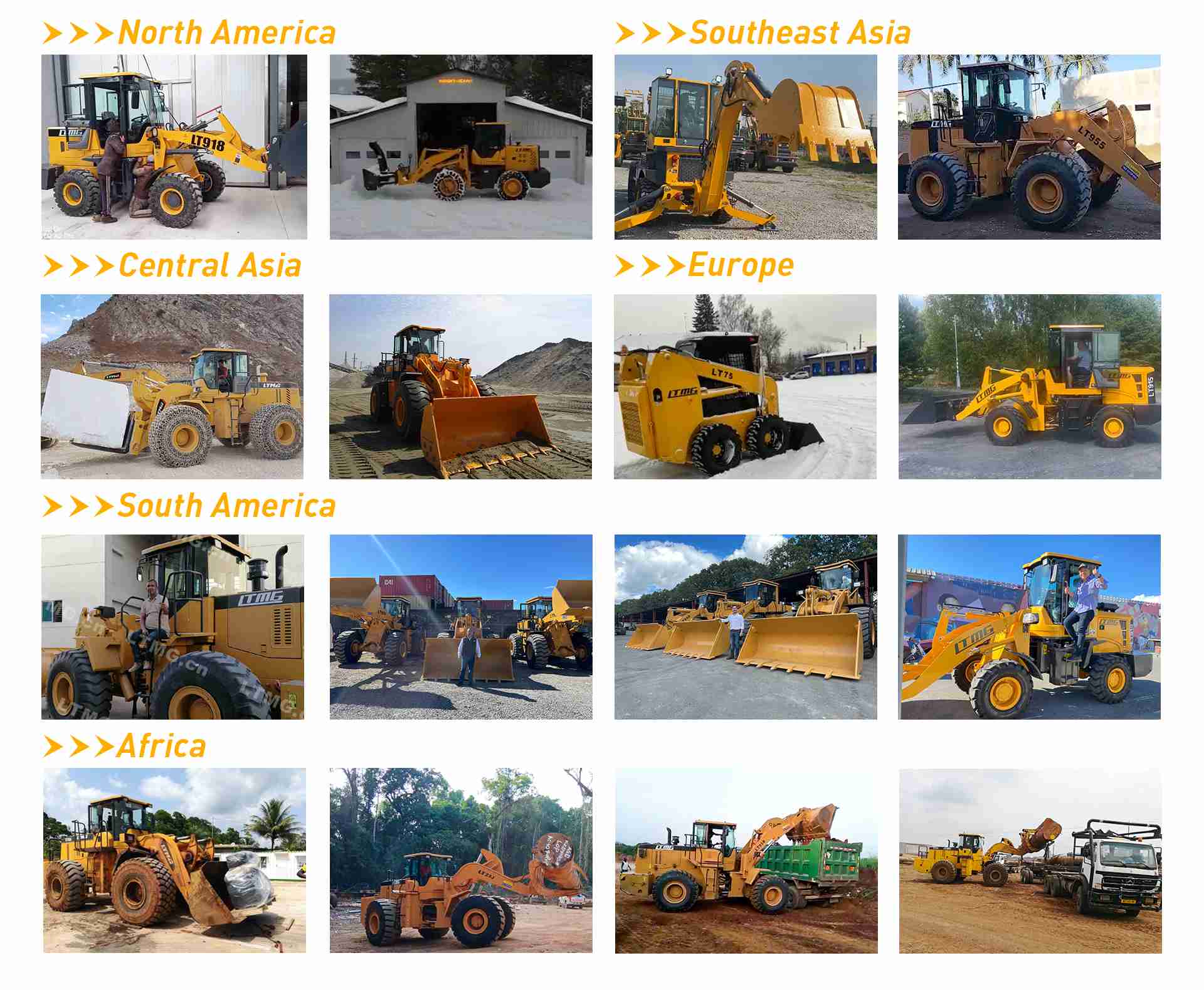

LTMG Loader Products - Work in Different Environments
LTMG sells its products to many countries. In order to meet the different requirements of customers, LTMG produces the loaders required by customers. Customers feed back to LTMG pictures of their products. Cooperation, win-win.
Product Certification -LTMG Products
LTMG pays special attention to the quality certification of its products. After a product is developed, LTMG invites professional inspection organizations to conduct testing and certification. Strive to meet the quality requirements of customers for products. LTMG also certifies CE, ISO,COC and other certificates for different import requirements in different countries.
FAQ
1. How to conduct the pre-sale consultation for LTMG's 5-ton diesel wheel loader?
We offer a 24-hour online consultation service. You can contact our sales team by phone, email or live chat. They will answer your questions in detail and provide you with information on product specifications, prices and delivery times.
2. Do you provide warranty after purchasing 5 tons of diesel wheel loader?
Yes, we guarantee all 5-ton diesel wheel loaders for one year or 2000 working hours. Whichever comes first. During the warranty period, if a fault is found due to a manufacturing defect, we will provide repair or replacement of the relevant parts free of charge.
3. How to carry out the after-sales service of 5 tons diesel wheel loader?
After purchase, we will assign specialized technicians to provide you with after-sales service. You can contact our after-sales team by phone or email, and we will respond to your needs in a timely manner and send technicians to solve your problems.
4. Can you provide product control training for 5-ton diesel wheel loaders?
Yes, we offer product handling training to ensure that your operators can become familiar with and use the 5-ton diesel wheel loader correctly. Our technicians will provide your team with comprehensive training and technical support.
