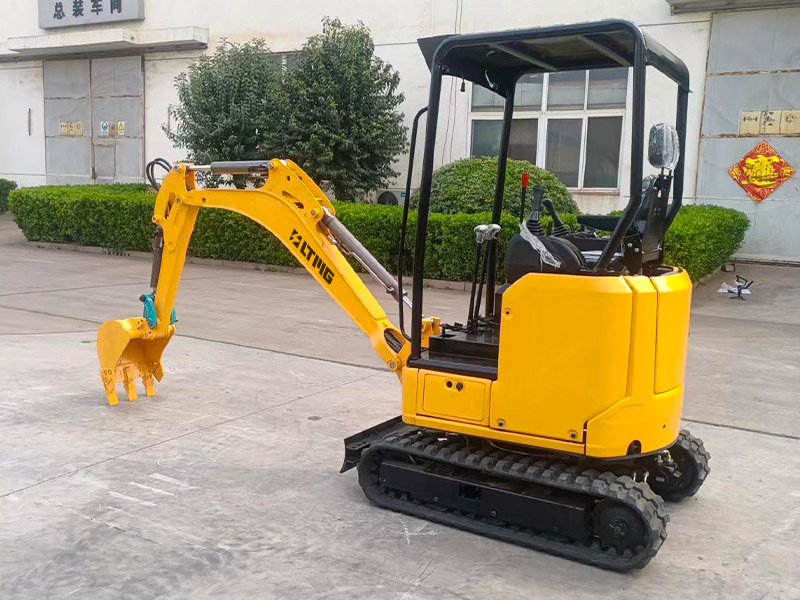

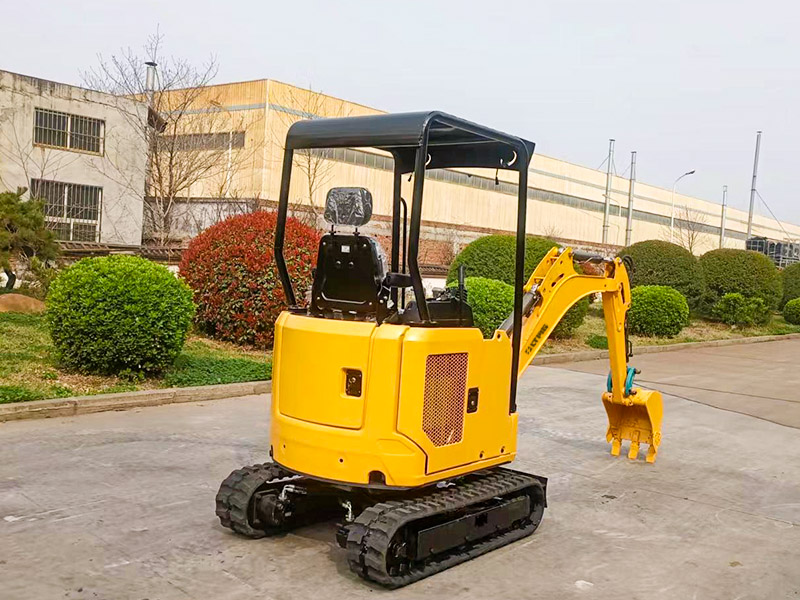

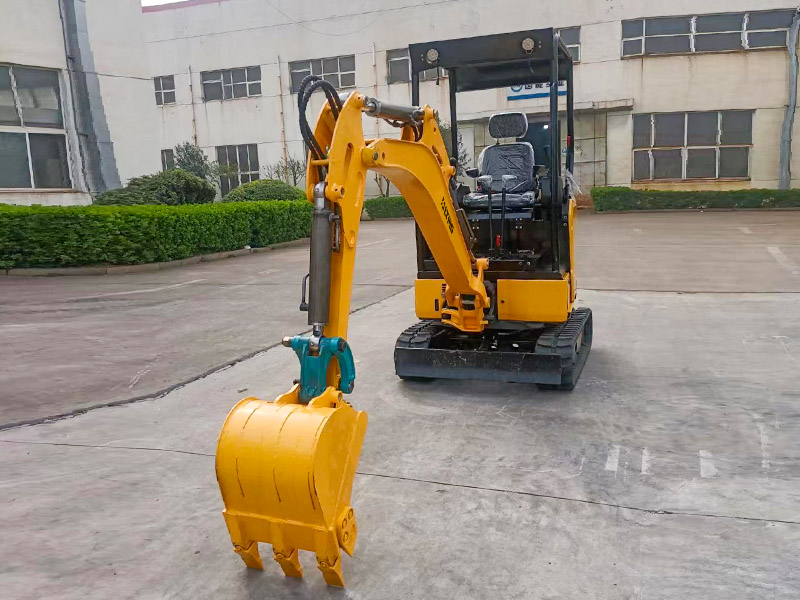

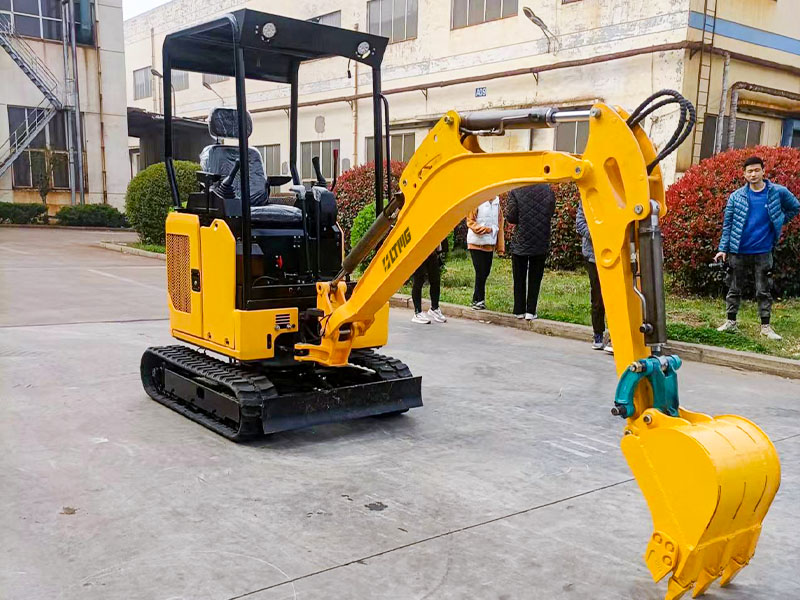

Battery mini excavator 2000kg are ideal for any indoor excavation tasks you may have. Thanks to their zero emission, these reliable machines can complete your work efficiently and securely.
Model :
LTB20Operating Weight :
1800kgBucket Capacity :
0.04m³ODM/OEM :
SUPPOR
1.Environmentally friendly: Unlike traditional excavators that use fossil fuels, mini electric excavators are powered by electricity, which makes them emission-free and environmentally friendly. |
Bettery Mini Excavator 2000kg Parameter
Performance parameter | Unit | LTB20 |
Self weight | kg | 1800kg |
Bucket capacity | m³ | 0.04 |
Working device mode | Backhoe | |
Power mode | Lithium battery | |
Lithium battery capacity | V/Ah | 72V/200Ah |
Battery weight | KG | 100kg |
Operating hours | H | >15H |
Whether to support fast charge | support | |
Full charge time | H | 8H/4H/1H |
Motor power | KW | 6kw |
Driving speed | km/h | 0-6km/h |
power consumption per hour | About 1 kWh per hour | |
Decibels within 1 meter | dBA | <60 |
Dimensions | ||
Wheel base | mm | 920 |
Track length | mm | 1500 |
platform ground clearance | mm | 400 |
Width of chassis | mm | 1090/1400 |
Width of track | mm | 240 |
Overall length | mm | 3550 |
Overall height | mm | 2203 |
Operating range | ||
Gyration radius | mm | 1645 |
Max. digging | mm | 3800 |
Max. digging depth | mm | 2350 |
Max. digging height | mm | 3200 |
Max. dumping height | mm | 2290 |
Max. lifting height of dozer blade | mm | 325 |
Max. lifting depth of dozer blade | mm | 175 |
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
Bettery Mini Excavator FAQ
Q:How about the service life of bettery mini exccavator ?
A:The working time of the electric excavator can reach up to 15 hours, and it supports 4 hours of fast charging
Q:How long can I get free repair service?
A:1 year or 1200 hour working time, machine failure we provide free repair and parts service
Q:How long is the lead time?
A:It takes 7-10 days for normal goods and 15-30 days for customization.
Q:What is LTMG payment term of the bettery mini exccavator ?
A:T/T, L/C, O/A
Q:As a electirc excavator factory, what are the different advantages of LTMG?
A: LTMG has stricter control over the production process of the factory, and has expanded various deformation models of electric excavator. Compared with peer factories, LTMG has more complete product categories and more options.
