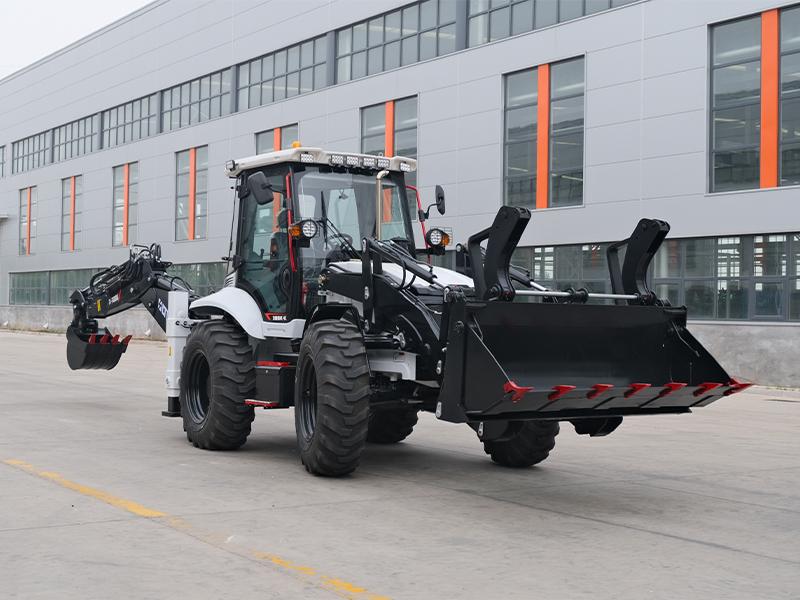

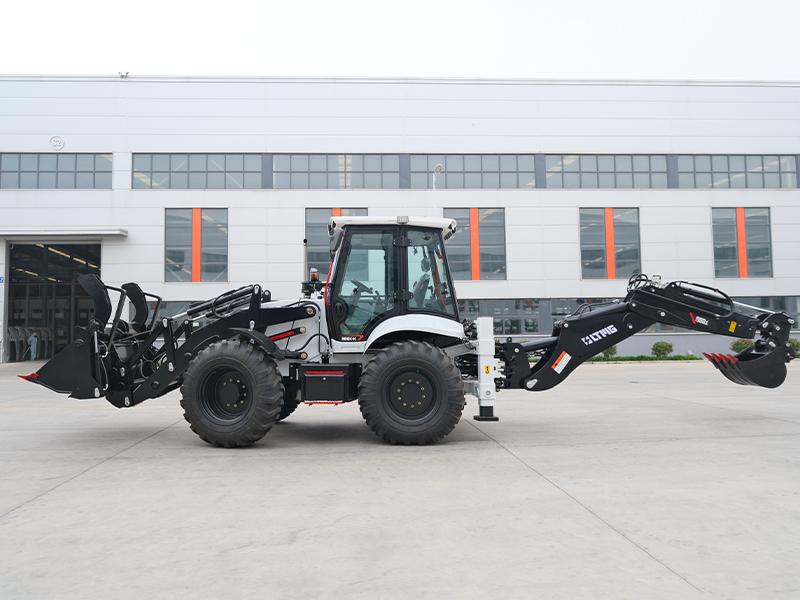

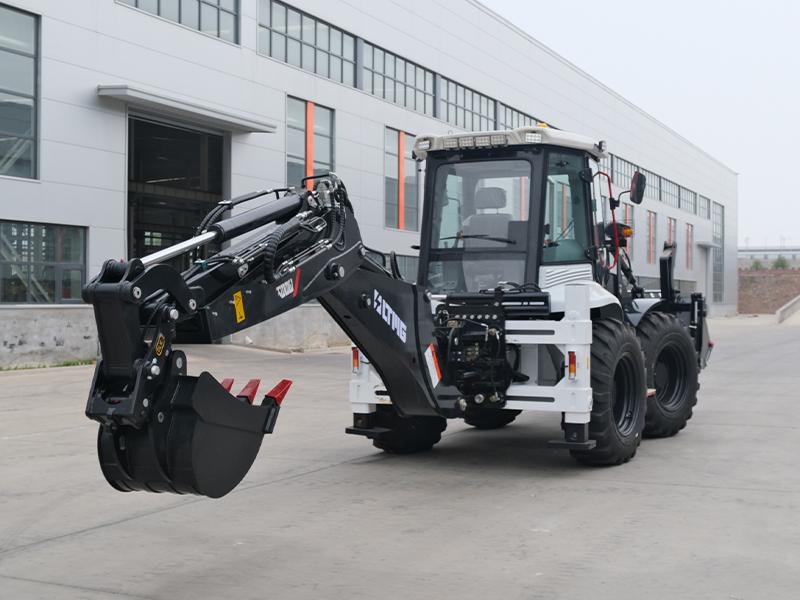

This BLT388K backhoe loader is equipped with hydraulic pilot operation, reversing camera, standard eight legs, air-conditioning and heating, equipped with a strong engine, more powerful. It can be equipped with all kinds of digging or loading attachments, and is suitable for the construction of municipal, water, pipeline gas, electric power, oilfield, construction, forestry and other industries.
Model :
BLT388KLoad Capacity :
2500KGOperating Weight :
10050KGBucket Capacity :
1.2m³ODM/OEM :
SupportThe Features of BLT388K Backhoe Excavator Loader
Hydraulic pilot operation: easy to operate, responsive and enhances work efficiency.
Reversing camera: improves operational safety and facilitates operation.
Standard eight-legged: provide solid support to ensure the balance of the equipment during operation.
Cold and warm air-conditioning: improves operator comfort and adapts to different weather conditions.
Powerful engine: sufficient power, low fuel consumption, reduce operating costs.
A variety of attachments: according to different needs, it can be equipped with digging or loading attachments to meet diversified working needs.
The Technical Parameters of LTMG BLT388K
Model | BLT388K | ||
1 | Total length | 6450±80mm | |
2 | Total width | 2550±20mm | |
3 | Bucket width | 2540mm | |
4 | Total height (cabin top) | 3120±10mm | |
5 | Total height (digging boom top) | 3940 ±20mm | |
6 | Wheel base | 2335±10 mm | |
7 | Wheel tread | 2139 ±10mm | |
Load Main Technical Parameter | |||
1 | Rated load | 2500KG | |
2 | Operating weight | 10050kg | |
3 | Rated bucket capacity | 1.2m³ | |
4 | Max. Dumping height (41° dumping angle) | 3050±50 mm | |
5 | Dumping distance | 870±20 mm | |
6 | Turning radius | Tires outside | 5750±50mm |
Digging Main Technical Parameters | |||
1 | Rated digging bucket capacity | 0.3m³ | |
2 | Max. Digging depth | 3820±20 mm | |
3 | Max. Digging radius | 5345±20mm | |
4 | Loading height | 3740±20mm | |
5 | Max. Digging force | 5100kgf | |
6 | Max.Digging height | 5470 ±20mm | |
7 | Lifting force at Max. Digging radius | 1220kg | |
Engine | |||
1 | Engine model | YC4A105Z-T20 | |
2 | Cooling type | Water cooling | |
3 | Rated power | 75 (kW) | |
4 | Displacement | 4.8(L) | |
5 | Rated speed | 2200(r/min) | |
6 | Max. Torque | 400(N.M) | |
7 | Manufacturer | YUCHAI | |
Transmission | |||
1 | Model | 315 | |
Hydraulic torque convertor | Cooling way | Pressured oil circle | |
2 | Gearbox | Model | 28 |
Type | Mechanically Operated Hydraulic | ||
Synchronized Shift | |||
3 | Driving axles | Model | WZL100 |
4 | Gear shift | 4 F、4 R Forward 4 Backward 4 | |
5 | Speed(F/R)km/h | Forward: 5 km/h, 10 km/h, 18 km/h, 32 km/h. | |
Backward: 5 km/h, 10 km/h , 18 km/h, 32 km/h. | |||
6 | Tyres model | 16.9-28 | |
Hydraulic system | |||
1 | Working pump displacement | 63ml/r | |
2 | Working pump pressure | 20Mpa | |
3 | Diverter model | BZZ5-250 | |
Oil Capacity | |||
1 | Hydraulic oil tank | 125 | |
2 | Fuel tank | 125 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
Optional Backhoe Loader Attachments
FAQ
Q: Why choose us?
A: As a manufacturer, LTMG industrial is committed to offer not only products with high quality and performance and competitive price, such as excavator loaders, but also in-time delivery and comprehensive 7/24 after-sale services.
Q: What Certificates do we have?
A: All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
Q: Can we provide OEM service?
A: LTMG can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
