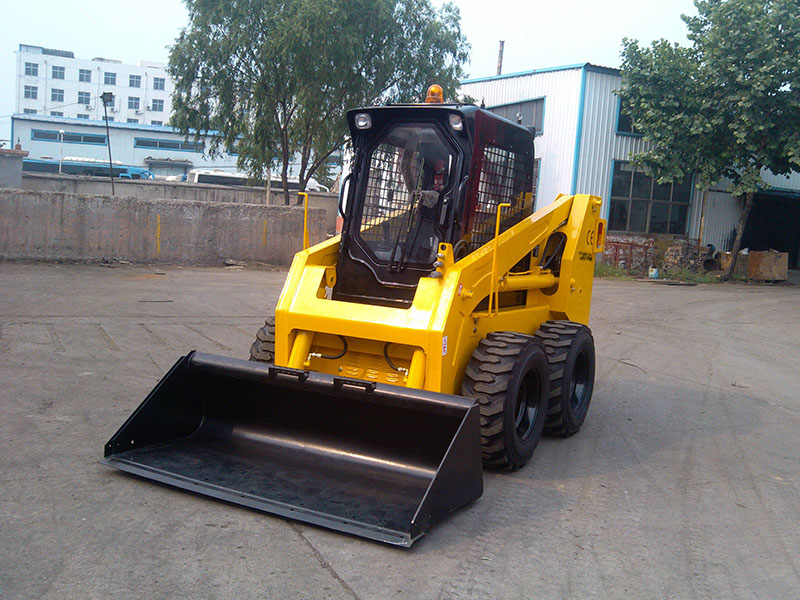

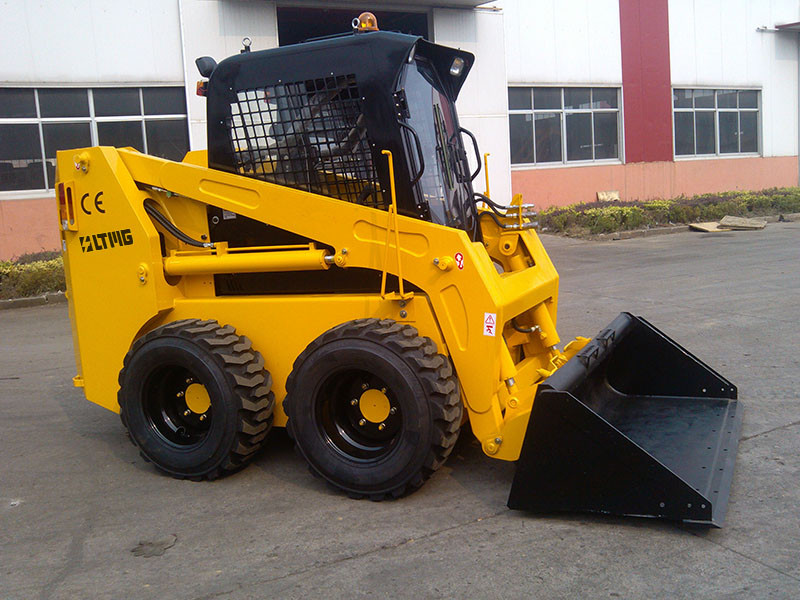

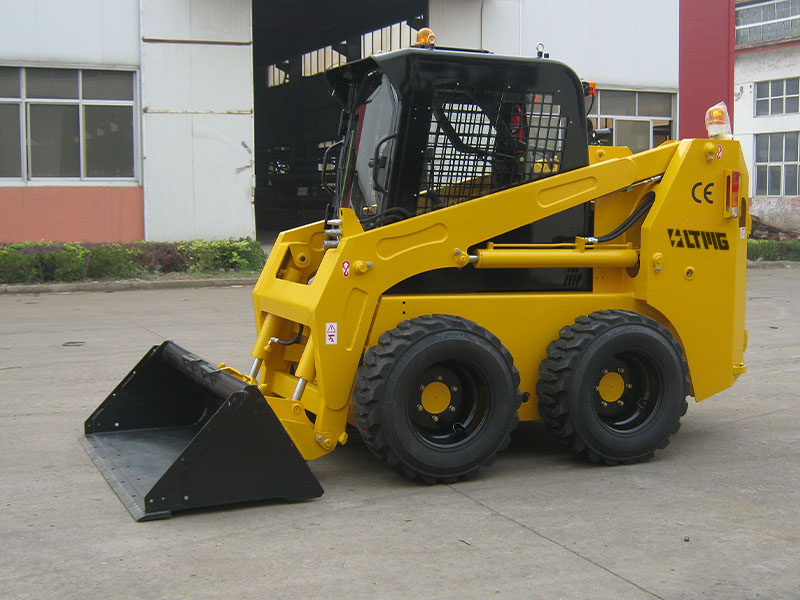

All Wheel Steer Skid Loader is a versatile construction machinery primarily used for digging, loading, and transporting loose materials. It is suitable for various locations, including urban infrastructure, roads or construction sites, factory workshops, warehouses, docks, ship decks, and even ship cabins.
Model :
LT100Load Capacity :
1100KGOperating Weight :
3550Bucket Capacity :
0.55cbmODM/OEM :
SUPPORT
1100KG Wheel Skid Steer Loader Characteristics
1. High-strength driver's cab that meets FOPS/ROPS international safety standards, providing a larger and more comfortable driving space.
2. Integrated control panel design, clear display of the machine's performance parameters, ensuring comprehensive control of the entire machine during use.
3. Hydraulic operating system with electronic control and self-locking interlock design, reducing the risk of misoperation and ensuring safer operation.
4. Dual throttle controls, allowing for convenient manual throttle operation and aligning with your daily operating habits with foot pedal throttle.
5. Equipped with internationally standard quick-change devices, enabling fast and convenient replacement of various attachments. Hydraulic quick couplers can be matched with attachments or host machines from most manufacturers.
1100KG Wheel Skid Steer Loader Parameters
| Model | LT100 |
|---|---|
| Operating load (kg) | 1100 |
| Max Speed（km/h） | 12\18 |
| Rated flux (L/min) | 75 |
| High Flow Flux (L/min) | 140 |
| Tire（track） model | 12-16.5 |
| Rated power (Kw) | 74 |
| Fuel tank capacity (L) | 90 |
| dead weight (kg) | 4000 |
| self weight bucket (kg) | 3550 |
| Bucket capacity (m³) | 0.55 |
| Overall operating height (mm) | 4070 |
| Height to top of cab (mm) | 2160 |
| Without bucket length(mm) | 2880 |
| Overall length with bucket(mm) | 3580 |
| Dumping height(mm) | 2450 |
| Width (mm) | 1880 |
| Bucket width (mm) | 1880 |
| Height to bottom of level bucket(mm) | 2983 |
| Dumping angle at maximum height(° ) | 40 |
| Height to bucket hinge pin (mm) | 3150 |
| Dumping reach(mm) | 700 |
| Rollback o bucket on ground(° ) | 30 |
| Rollback of bucket at full height(° ) | 104 |
| Wheelbase(mm) | 1185 |
| Ground clearance(mm) | 205 |
| Angle of departure(°) | 20 |
| Front turning radius without bucket(mm) | 1278 |
| Front tuning radius(mm) | 2144 |
| Rear tuning radius(mm) | 1857 |
| Rear axle to bumper (mm) | 1082 |
| Tread width (mm) | 1500 |
With technological innovation, our product configuration and parameters will continue to change without notice
If there is any doubt, the specific confirmation of our international trade sales shall prevail;

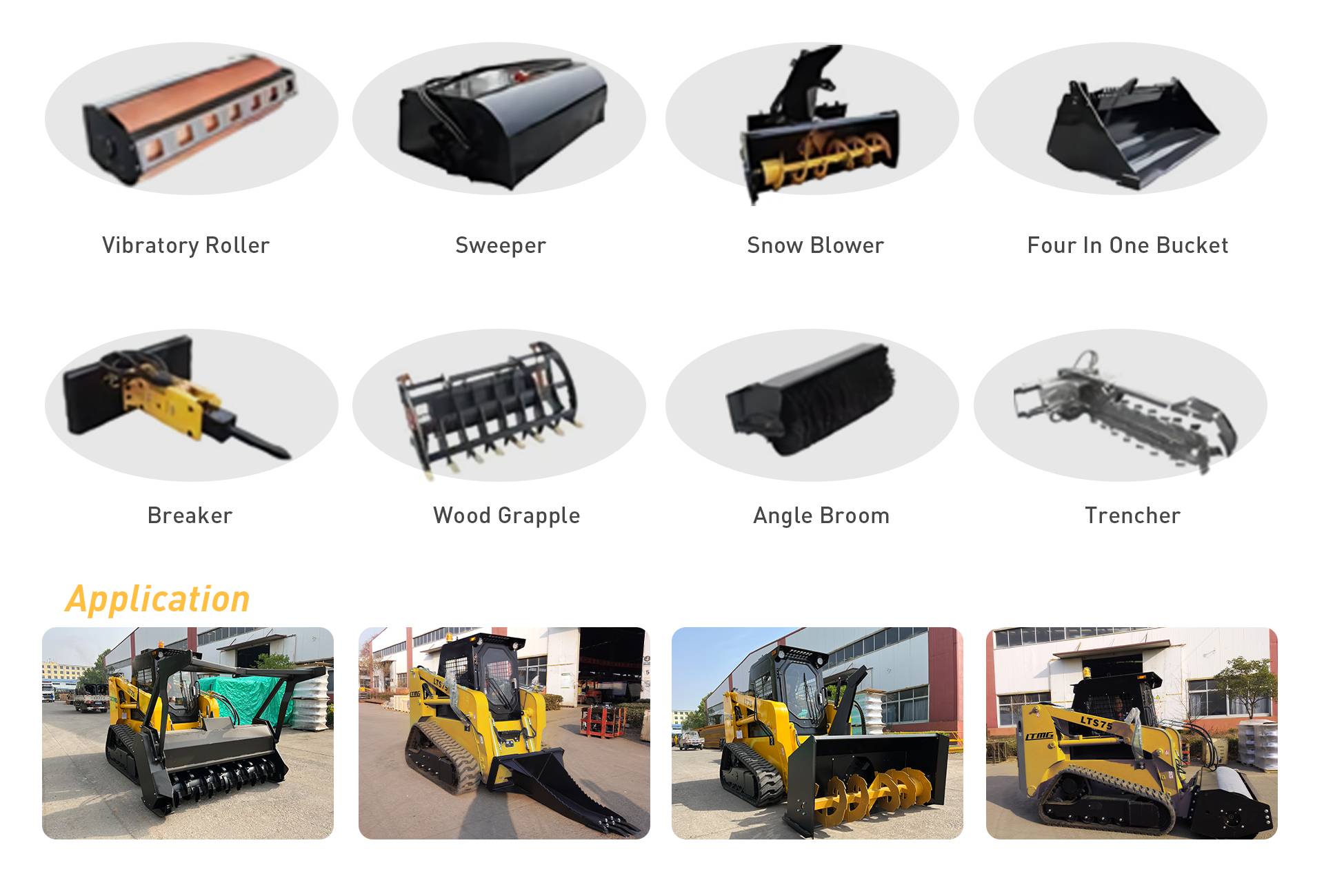

The Configuration and Attachments Of Skid Steer
FAQ about 1100KG Wheel Skid Steer Loader
1: How long is the Warranty for LTMG skid steer loader?
12 months or 2000 working hours,whichever occurs first.
2: How about the delivery time of LTMG skid steer loader?
For some standard products, we may have stock and could delivery immediately. If there is no stock, usually LTMG producing time is 20 working days from the date advanced payment received.
3: Can LTMG provide customized products? OEM products or ODM products?
Yes, it can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of customization products.
4: Could we request our own color for the loader?
Yes, of course, you just need to offer us the RAL code.
