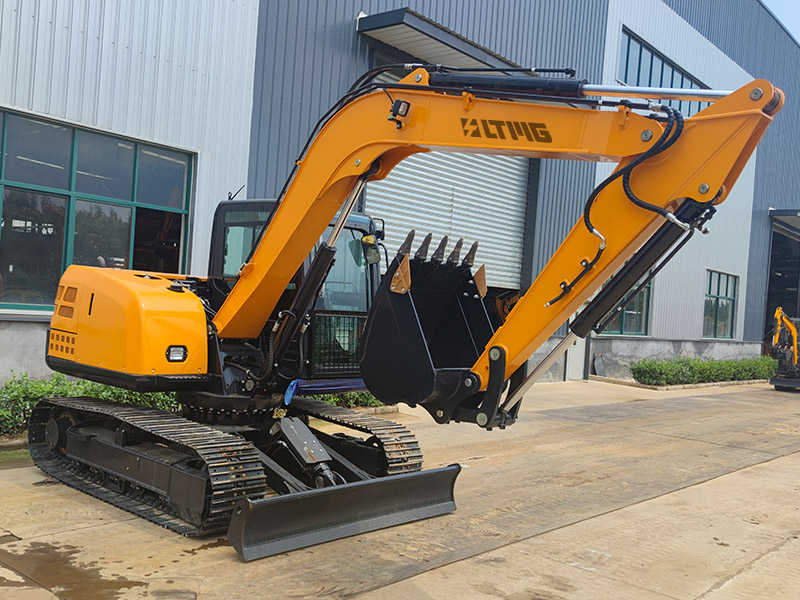

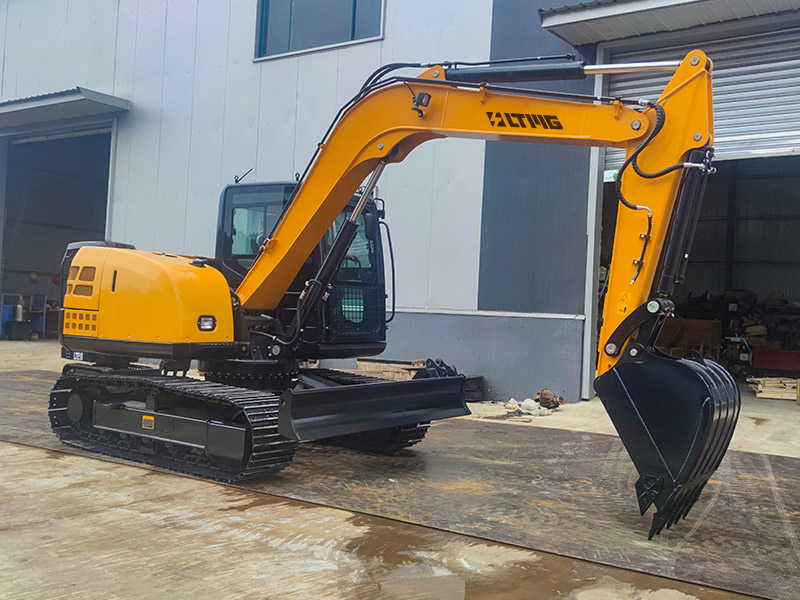

9 ton Crawler Excavator With Powerful Commins Engine
9 ton Crawler Excavator With Powerful Commins Engine
9 ton Crawler Excavator With Powerful Commins Engine

9 ton Crawler Excavator With Powerful Commins Engine

The 9 ton Crawler Excavator equipped with Cummins QSF2.8 engine with excellent work efficiency and excellent cost-effective, from excavating to demolishing, this 9-ton crawler excavator empowers you to conquer any project with versatility and efficiency.

  • Model :

    LTE90
  • Operating Weight :

    9000kg
  • Bucket Capacity :

    0.4m³
  • ODM/OEM :

    SUPPORT
  • Share to :
  • Youtube
  • Facebook
  • Instagram
  • linkedin
  • twitter

The Features of 9 ton Crawler Excavator

1. Enhanced Bulldozer Blade: Remarkably robust and resilient, with adjustable height for versatile usage.
2. Reinforced Rubber Track: Incorporating an embedded steel wire, ensuring exceptional durability and wear resistance.
3. Hassle-Free Hydraulic Pump Maintenance: Effortlessly maintainable, guaranteeing uninterrupted performance and efficiency.

4. Advanced Control System: Intuitive and user-friendly interface, enhancing operator productivity and minimizing fatigue.

5. Versatile Attachments: Easily interchangeable assortment of attachments, enabling seamless adaptation to diverse job site requirements.

9 ton crawler excavator factory



9 ton Crawler Excavato Parameters

Performance Parameters Unit LTE90
Operating Weight Kg 9000
Engine Model   Cummins QSF2.8
Rated Power Kw 53kW/2200rpm
Bucket Capacity 0.4
Max Digging Force Kn 58
Swing Speed rpm 0-12
Traveling Speed km/h 2.8
Gradeability ° 70(35°)

Hydraulic System
Hydraulic system working pressure Mpa 28
Hydraulic Pump   Hengli
Hydraulic Valve   Husco
Swing Motor   Eaton/Sunjin
Traveling Motor   Eaton/PMP

Overall Dimensions
Overall Length mm 6410
Overall Width mm 2278
Overall Height mm 2630
Track Width mm 450
Undercarriage width mm 2200
Undercarriage ground clearance mm 800

With technological innovation, our product configuration and parameters will continue to change without notice;

If there is any doubt, the specific confirmation of our international trade sales shall prevail;



FAQ about 9 ton Crawler Excavator

1. What payment terms can we accept?

T/T; L/C; D/P



2. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.



3.How about our delivery time?

It usually will take 30 days-45 days after receiving your deposit.



4. Can we provide OEM service?

LTMG industrial can provide customized products according to customers' requirements,both OEM and ODM are acceptable.
