The LTMG small seat type skid steer loader offers compact, powerful performance with a 560kg operating capacity. Features include a user-friendly seat control, versatile attachments, and efficient maneuverability. Ideal for construction, landscaping, and agricultural tasks, this skid steer enhances productivity in confined spaces and demanding environments.
Model :
LT23SLoad Capacity :
560 KGBucket Capacity :
0.15 m³ODM/OEM :
Support
Product Features Of Small Skid Steer
Engineered to excel in confined spaces while delivering top-notch performance. Crafted with precision, its compact design makes it ideal for maneuvering through narrow environments with ease.
Equipped with high-quality components, this skid steer is built to withstand corrosion, ensuring durability and longevity even in challenging working conditions. The reinforced and wear-resistant tires enhance traction and durability, extending the service life for prolonged usage.
Versatility is at the core of this machine, offering a range of engine options to meet diverse operational requirements. Whether it's tackling construction projects, landscaping tasks, or agricultural endeavors, this skid steer delivers unmatched versatility and efficiency.
With its ergonomic design and intuitive controls, operators can work comfortably and efficiently for extended periods, maximizing productivity on the job site. Additionally, advanced safety features provide peace of mind, ensuring a secure working environment for operators and bystanders alike.
The Technical Specifications Of LTS23S
| Model | LT23S | |||
| Rated loading capacity | kg | 560 | ||
| Bucket volume | m³ | 0.15 | ||
| Max. lifting force | kg | 800 | ||
| Working speed | km/h | 0~4.3 | ||
| Rated pressure | Mpa | 17 | ||
| Lifting time | s | 4.5 | ||
| Lowering time | s | 3.1 | ||
| Tipping time | s | 1.8 | ||
| Climbing capacity | % | 30 | ||
| Working weight | kg | 920 | 930 | 950 |
| Brand | 百力通 | 润通 | 科普 | |
| Model | 3864 | R740D | KD2V80 | |
| Output power | 23HP/3600rpm | 23HP/3600rpm | 20HP/3000rpm | |
| Fuel consumption | L/h | ≤6.7 | ≤6.7 | ≤4.8 |
| Starting method | 电启动 | 电启动 | 电启动 | |
| Fuel tank | L | 26 | ||
| Engine oil | L | 1.7 | 1.6 | 3 |
| Hydraulic oil tank | L | 23 | ||
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

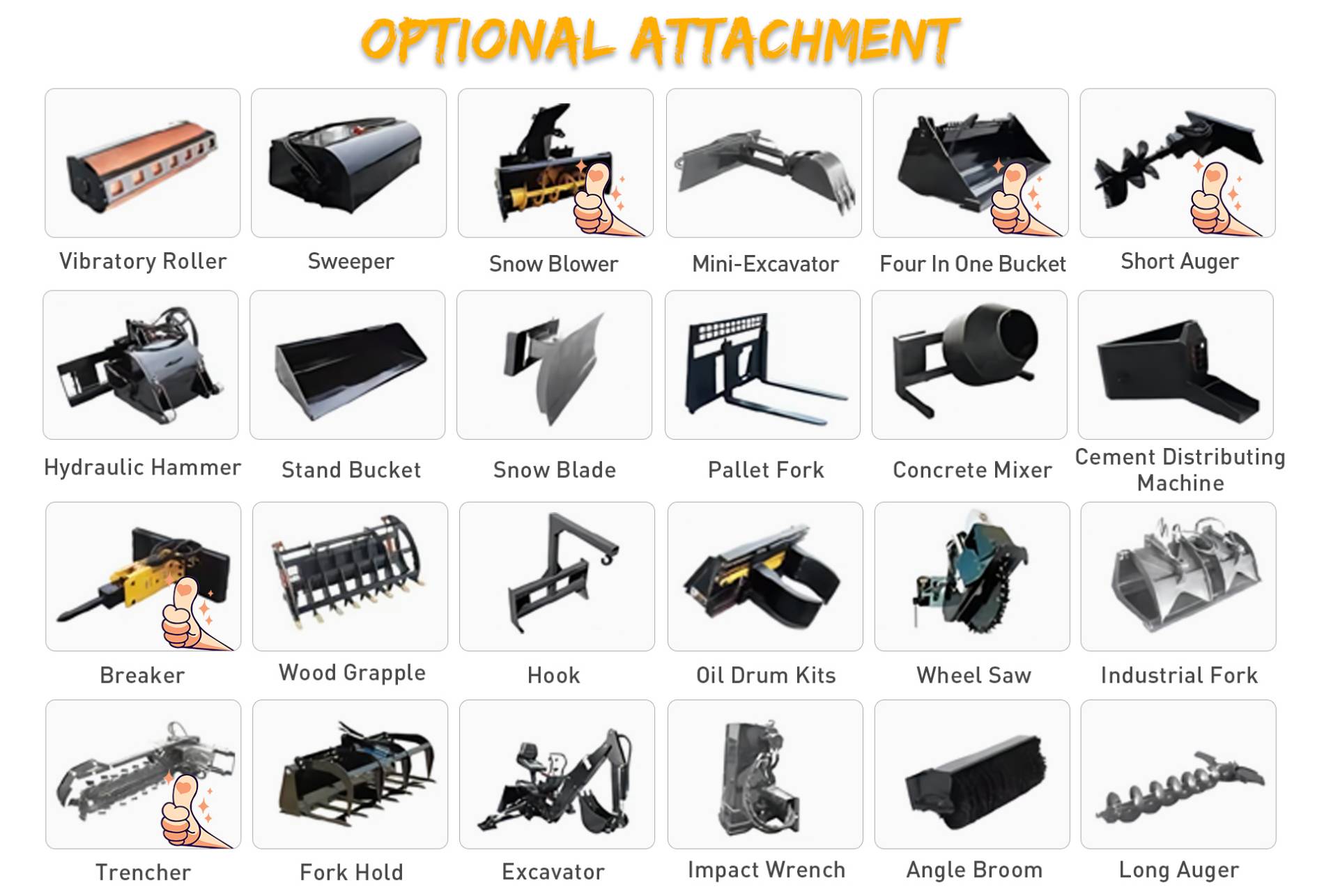

Optional Attachments For Skid Steer Loader

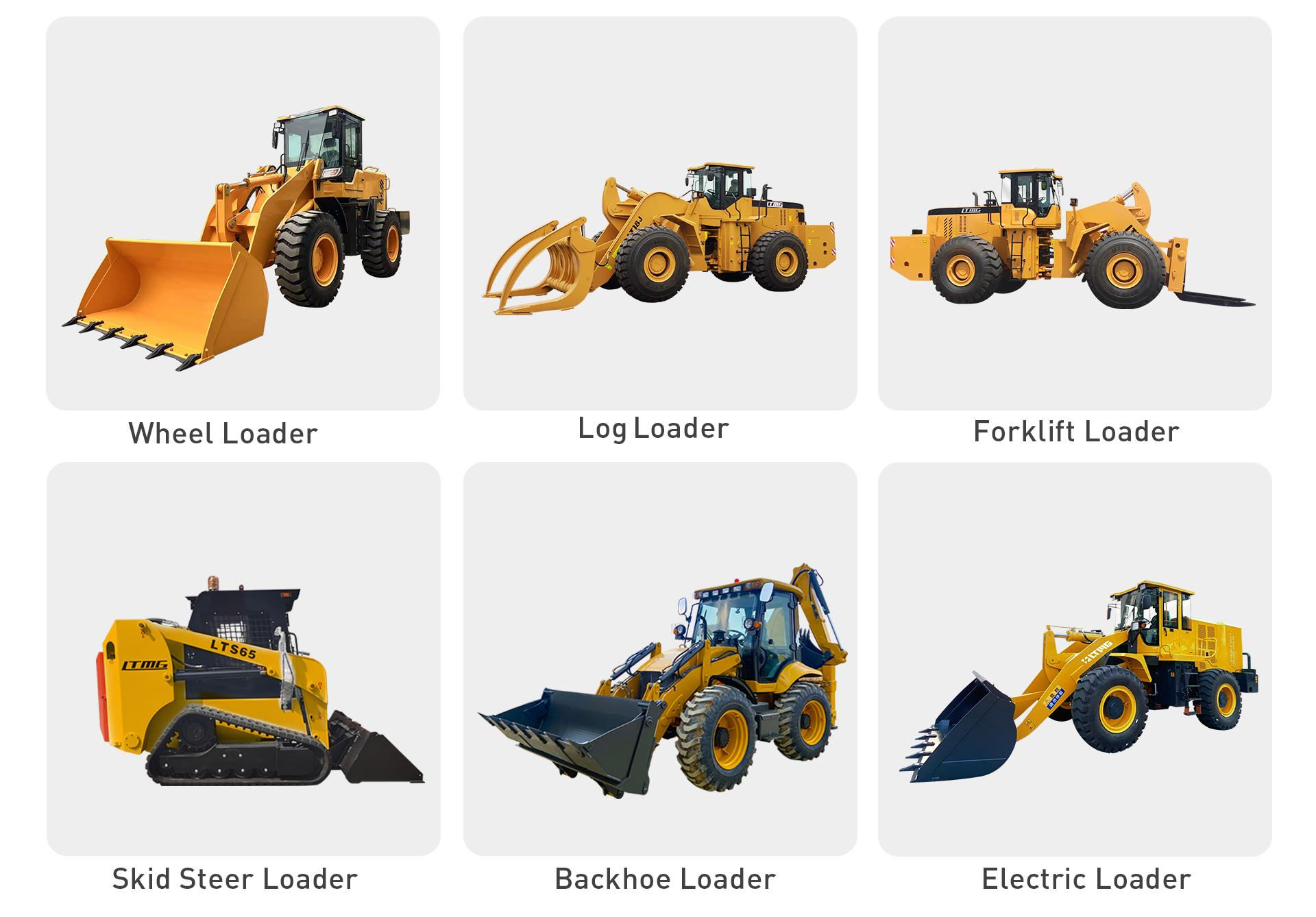

More Types of LTMG Loaders
FAQ
Q: What types of engines are available for this skid steer loader? A: The skid steer offers multiple engine options to cater to different operational needs, providing flexibility in terms of power and performance based on the specific requirements of your projects.
Q: Can this skid steer handle various types of tasks? A: Absolutely. The 560KG skid steer is versatile and capable of performing a wide range of tasks, from construction and landscaping to agricultural work, thanks to its multiple engine options and robust design.
Q: What maintenance is required for this skid steer? A: Regular maintenance includes checking and replacing fluids, inspecting and maintaining the tires, and ensuring all components are clean and in good working order. The high-quality, corrosion-resistant parts help reduce the overall maintenance requirements.
