The telescopic wheel loader has a powerful 4-ton load-bearing capacity, enabling it to handle and transport heavy materials and goods. It is suitable for tasks that require moving large items, heavy construction materials, or other substantial loads.
Model :
LT940-TLoad Capacity :
4000KGOperating Weight :
10000KGBucket Capacity :
2m³ODM/OEM :
SUPPORTTelescopic Wheel Loader Characteristics
1. Height adjustability: The telescopic wheel loader is equipped with an adjustable boom length, allowing it to reach a discharge height of 5400mm and a longer discharge distance. This enables it to easily handle tasks involving high walls, elevated structures, and other locations that require reaching greater heights.
2. High load-bearing capacity: The telescopic wheel loader has a strong load-bearing capacity, enabling it to handle and transport heavy materials and goods. It is suitable for work scenarios that involve moving large items, heavy construction materials, or other substantial loads.

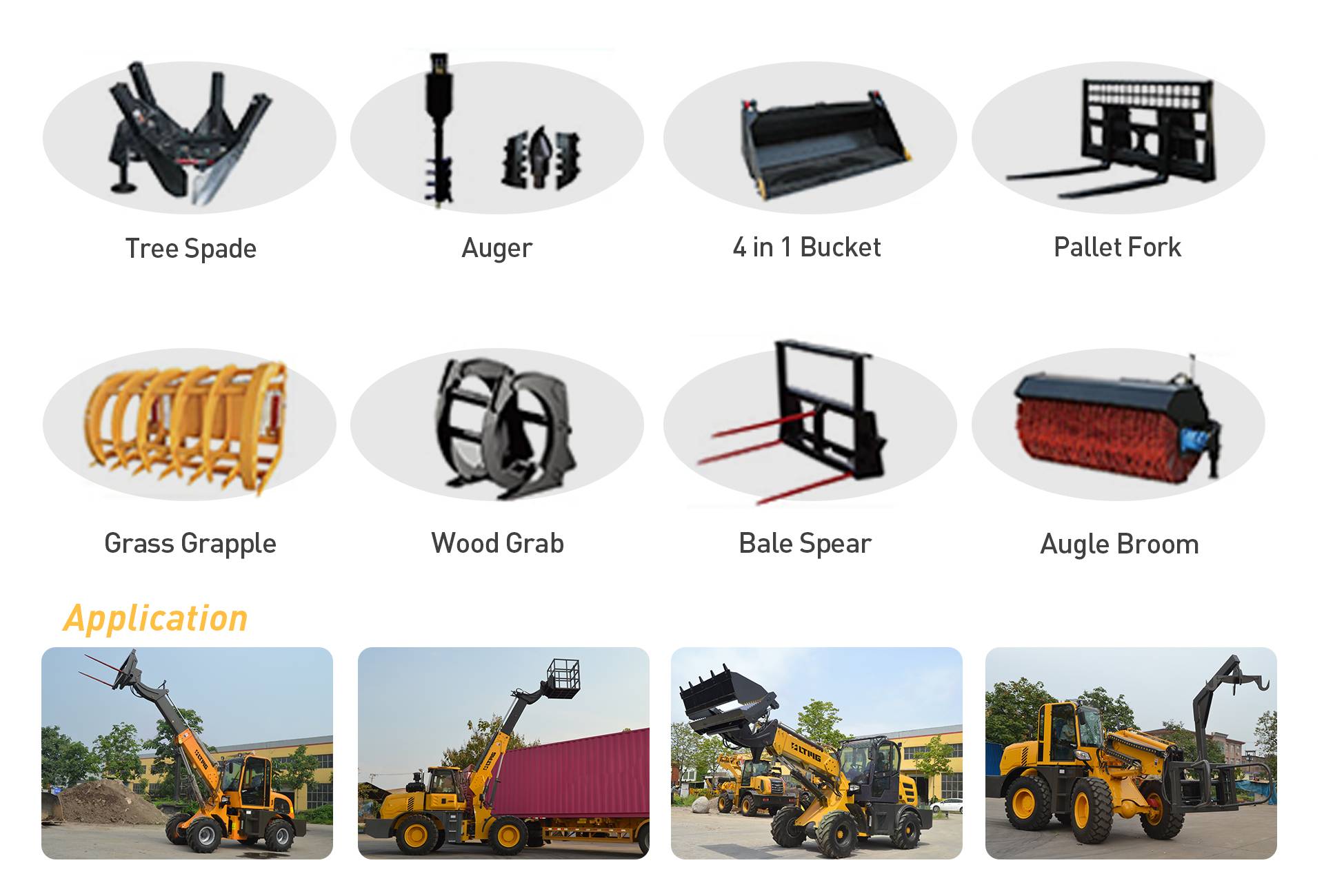

3. Versatility: The telescopic wheel loader is often equipped with various attachments such as buckets, forks, and dozer blades, allowing it to meet different job requirements. It can be used for excavation, loading, ground leveling, rubbish clearance, and other operations, thereby improving work efficiency and reducing labor costs.
4. Flexibility: The telescopic wheel loader exhibits excellent maneuverability and flexibility, making it suitable for operating in tight and confined spaces. Its small turning radius and compact design make it ideal for urban construction, narrow roads, and other limited work areas.
Telescopic Wheel Loader Parameter
LT940-T telescopic loader |
||
---|---|---|
Engine Details
|
Engine Brand/Model |
WEICHAI/ WP6G175E22 |
|
Engine power |
129KW |
|
Number of cylinders |
6 |
|
Cooling way |
Water cooling |
|
Engine type |
Electronic Unit Injector Engine |
Optional engine
|
6BT5.9-C150 CUMMINS 110KW EURO5 YUCHAI EPA4 CUMMINS/FPT/ |
|
Bucket
|
Bucket Capacity |
2m³ |
|
Bucket width |
2300mm |
|
Bucket type |
Heavy-duty teeth |
Overall Dimensions
|
Overall Length |
7800mm |
|
Overall Height |
3230mm |
|
Overall Width |
2300mm |
|
Max. Discharge height: |
5400mm |
|
Min. Discharge height: |
4000mm |
|
Optional Max. discharge height:
|
7000mm 9100mm |
Tyre |
Model |
G2 pattern 20.5-25 Tyre G2 |
|
Size |
Width: 520mm Diameter:1490mm |
Transmission System |
Hydraulic converter + gearbox + drive shaft + hub reduction axles |
|
Brake System |
Service Brake |
Four Wheel Disk brake |
|
Parking Brake |
Hand operated |
|
Braking Type |
Air Brake |
Steering System |
Articulated hydraulic steering |
|
Driving System |
Four wheel drive |
|
Hydraulic quick release |
Yes |
|
Hydraulic pilot joystick |
Yes |
|
Steady rise |
Yes |
|
Max. Load |
4000kg including bucket or attachment |
|
Wheelbase |
2845mm |
|
Track |
1825mm |
|
Speed |
0-38km/H |
|
Weight |
10000kg(with bucket) |
|
System Pressure |
19Mpa |
|
Hydraulic Output |
184L/min |
|
Fuel Tank Capacity |
175L |
|
Hydraulic Tank Capacity |
175L |
With technological innovation, our product configuration and parameters will continue to change without notice
If there is any doubt, the specific confirmation of our international trade sales shall prevail
Telescopic Wheel Loader Factory
FAQ about Telescopic Wheel Loader
Q: As a telescopic loader factory, what are the different advantages of LTMG?
A: LTMG's factory implements stricter control over the production process and has expanded its range of loader models with various configurations. In comparison to other factories in the same industry, LTMG offers a wider range of product categories and more options for customers to choose from.
Q: How long is the lead time for LTMG telescopic wheel loaders?
A: For standard telescopic wheel loader, the lead time is typically 10-20 days. However, for customized orders, the lead time is longer, usually ranging from 30 to 35 days.
Q: How is your after-sales service of telescopic wheel loader?
A: We offer a range of after-sales services that provide 24-hour technical support via phone and email.
A: T/T, L/C, O/A
