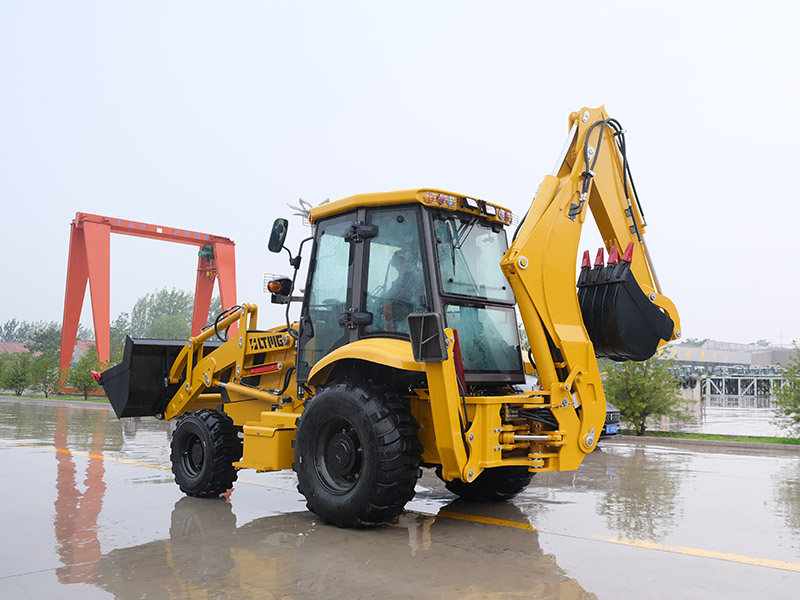

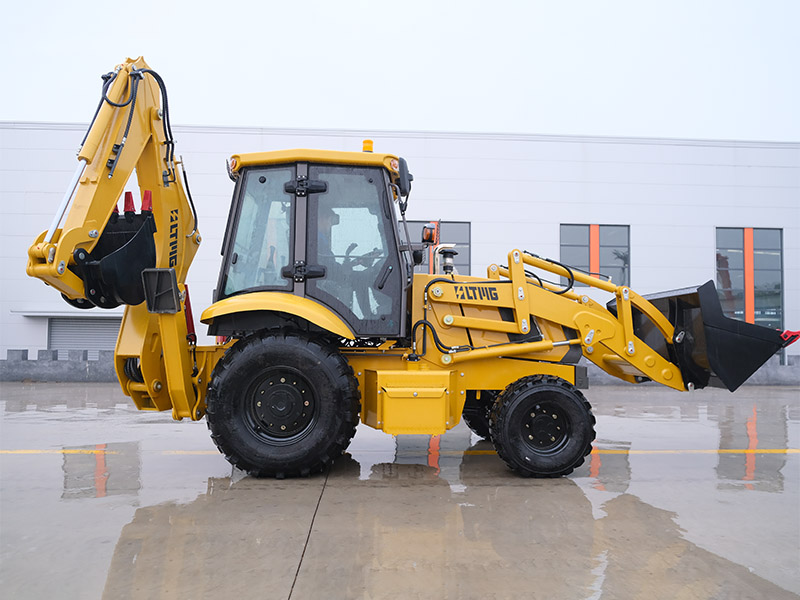

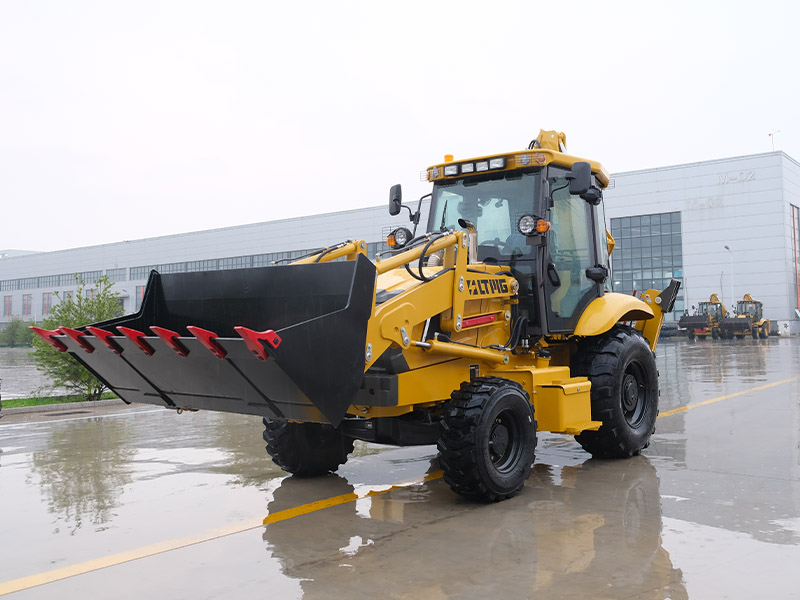

The 2.5 ton backhoe loader pilot equipped with valve design, easy to operate. An individually designed heat dissipation system adds a heat-insulating rubber plate and a hydraulic oil radiator to prevent overheating. A filtration system is added to the hydraulic pilot section. Suitable for construction, agriculture, gardening, road maintenance, municipal administration, industry and other uses.
Model :
BLT388NLoad Capacity :
2500KGOperating Weight :
8200KGBucket Capacity :
1.0m³ODM/OEM :
Support
The Product Features of the 2.5 Ton Backhoe Loader
1. The high-efficiency performance is reflected in the equipped with cutting-edge engines and powerful working devices, ensuring that the equipment can handle various tasks quickly and efficiently to meet the needs of different working scenarios.
2. The realization of diverse uses is due to the loader's ability to easily adapt to a variety of attachments, allowing it to flexibly respond to various operating needs, thus improving work efficiency and adaptability.
3. Excellent operational flexibility makes this backhoe loader perform well when operating in tight spaces and varied terrains. Its compact size and flexible four-wheel steering function are its distinguishing features.
4. Equipped with an additional hydraulic oil cooler and heat-insulating rubber panels, this design effectively addresses the issue of high temperatures in the hydraulic system, ensuring more stable and reliable operation throughout.
5. In terms of safety assurance, the addition of emergency stop and stability control systems has greatly improved the safety of operations and provided additional protection for operators.
The technical parameters of 2.5ton backhoe loader
| 1 | Performance Parameters | BLT388N |
| 2 | Overall Operating Weight |
8200KG |
| 3 | L*W*H | 6750×2900x3752 |
| 4 | Wheel Base | 2280mm |
| 5 | Min. Ground Clearance | 320mm |
| Load Main Technical Parameter | ||
| 1 | Bucket Capacity | 1.0m³ |
| 2 | Breakout Force | 58KN |
| 3 | Loading Lifting Capacity | 2500KG |
| Digging Main Technical Parameters | ||
| 2970mm | ||
| 2 | Bucket Dumping Distance | 970mm |
| 3 | Digging Depth | 52mm |
| 4 | Backhoe Capacity | 0.3m³ |
| 5 | Max. Digging Depth | 4480/5320mm（telescopic arm） |
| 6 | Swing Angle of Excavator Grab | 170° |
| 7 | Max. Pulling Force | 65KN |
| Engine | ||
| 1 | Model | YUCHAI YC4A105Z-T20 |
| 2 | Type | In-line, four-stroke, direct injection |
| In Line Direct injection Four-Stroke and Injection | ||
| 3 | Cylinder-Inside Diameter*Stroke | 4-108×132 |
| 4 | Rated Power | 75KW |
| 5 | Rated Speed | 2200r/min |
| 6 | Min. Fuel Consumption | ≤230g/km.h |
| 7 | Max.Torque | 400 N.m |
| 8 | Displacement | 4.837L |
| Steering System | ||
| 1 | Model of Steering Device | BZZ5-250 |
| 2 | Steering Angle | ±36 ° |
| 3 | Min. turning radius | 6581mm |
| 4 | Pressure of the system | 12Mpa |
| Axle | ||
| 1 | Manufacturer | Feicheng Axle Factory |
| 2 | Main Transmission Type | Double Reduction |
| 3 | Final Reducer | Single Stage Final Reducer |
| 4 | Rated Loader of Axle | 8/18.5t |
| Torque Converter | ||
| 1 | Model | YJ280 |
| 2 | Type | Single-stage Three Elements |
| 3 | Max. Efficiency | 84.40% |
| 4 | Inlet Pressure | 1.3Mpa—1.5 Mpa |
| 5 | Outlet Pressure | 0.25Mpa—0.3 Mpa |
| 6 | Cooling Method | Oil-cooling Pressure Circulation |
| Gearbox | ||
| 1 | Type | Fixed Shaft Power Transmission |
| 2 | Oil Pressure of Clutch | 1373Kpa—1569 Kpa |
| 3 | Gears | F4 / R4 |
| 4 | Max.Speed | 30Km/h |
| Tyre | ||
| 1 | Model | 14-17.5/19.5L-24 |
| 2 | Pressure of Front wheel | 0.55Mpa |
| 3 | Pressure of Back Wheel | 0.223Mpa |
| Brake System | ||
| 1 | Service Brake | Air Over Oil Caliper Brake |
| External Type | ||
| Self-regulation | ||
| Self-balance | ||
| 2 | Emergency Brake | Operation Power Implementing brake |
| Manual braking force release | ||
| Manual Operation Power Terminating Brake | ||
| Hydraulic System | ||
| 1 | Digging Power of Excavator Grab | 60KN |
| 2 | Digging Power of Dipper | 44KN |
| 3 | Bucket Lifting Time | 6.8S |
| 4 | Bucket Lowering Time | 3.1S |
| 5 | Bucket Discharge Time | 2.0S |
With technological innovation，our product configuration and parameters will continue to change without notice;
If there is any doubt, the specific confirmation of our international trade sales shall prevail;
The Certificates of LTMG Backhoe Loader
The FAQ of Backhoe Loader
Q: What are the main products of LTMG? How many years of industry experience do you have?
Answer: LTMG company focuses on the production and sales of heavy machinery and equipment, including backhoe loaders, loaders, bulldozers, etc., covering a variety of products in the fields of construction machinery. LTMG was founded in 2001 and has more than 20 years of experience in manufacturing and selling heavy machinery equipment. We have won the trust of customers around the world with our high-quality products and excellent services.
Q: What working environments are suitable for backhoe loaders?
Answer: Backhoe loaders are suitable for use in a variety of environments, including construction sites, road construction, farmland operations, municipal projects, etc. Its versatile design allows it to perform well in tight spaces and difficult terrain.
Q: How do I choose the right backhoe loader model for my project?
A: Choosing the right model depends on the size of the project, work environment, required job functionality, and budget. You can contact us for professional advice.
