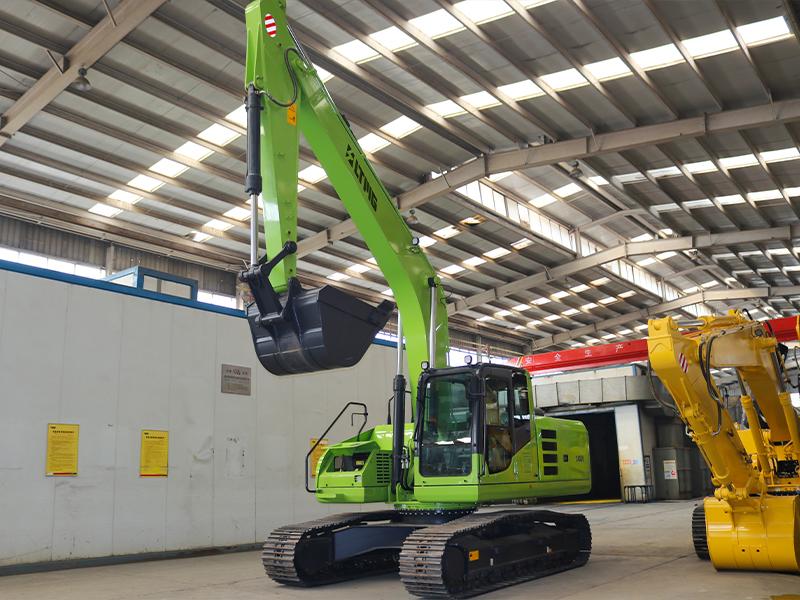

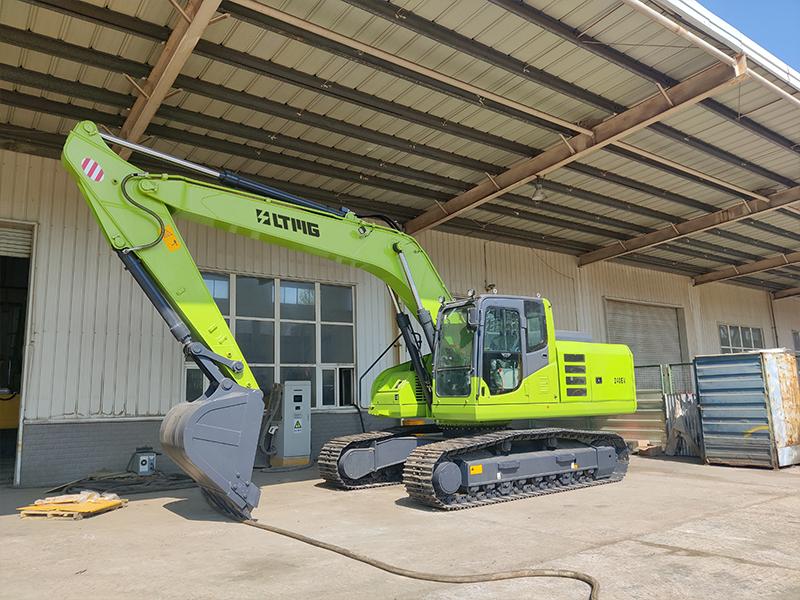

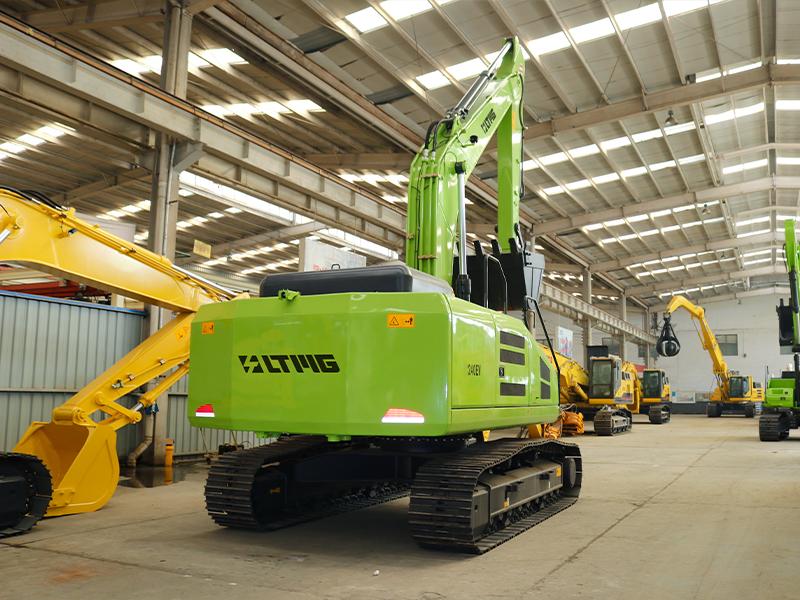

LTMG's new 24-ton electric excavator offers energy efficiency, eco-friendliness, smart control, easy maintenance, and versatile applications. Designed for modern construction needs, it combines advanced technology with environmental responsibility for reliable and effective performance.
Model :
LTE240EVOperating Weight :
24000KGBucket Capacity :
1.17 M³ODM/OEM :
Support
Energy Efficiency and Eco-Friendliness: Powered by a three-electrical system combined with precisely calibrated hydraulic systems, this excavator delivers outstanding energy savings and environmental benefits.
Smart Control: Equipped with an 8-hour LCD display, the excavator features intelligent operation modes that can be switched with a single touch. It also includes a fault diagnosis function to ensure seamless operations.
Intelligent Cooling: The heat management system is smartly controlled to maintain optimal temperatures while incorporating a self-cleaning function for the cooling system.
Ergonomics: The cab is equipped with silicone oil dampers and an adjustable air suspension seat, ensuring operator comfort even during long hours of operation.
Versatile Applications: This excavator can be paired with various attachments, making it adaptable to a wide range of working conditions and tasks.
The Technical Specification of LTE240EV Electric Excavator
| Specification | LTE240EV | |
| Total weight | T | 23.5 |
| Bucket capacity | M³ | 1.17 |
| Motor model | WR510 | |
| Rated power | Kw/r/min | 140/1900 |
| Rated voltage | V | 618.2 |
| Rated stored energy | KWh | 422.8 |
| Max displacement | L/min | 260*2 |
| Working pressure | Mpa | 34.3 |
| Hydraulic pump mode | APVO140TVN90WI | |
| Hydraulic tank volume | L | 246 |
| Walking speed (high/low) | km/h | 4.2/2.6 |
| Swing speed | r/min | 10.3 |
| Climbing ability | ° | 35 |
| Bucket excavation force | KN | 159 |
| Arm digging force | KN | 115 |
| Ground specific voltage | KPa | 48.6 |
| Traction force | KN | 219 |
| Max. excavation height | mm | 9310 |
| Max. unloading heigh | mm | 6438 |
| Max.excavation depth | mm | 6875 |
| Max. verticalarm mining depth | mm | 5860 |
| The distance when digging 2.5 horizontal plane | mm | 6680 |
| Max. excavation distance | mm | 10170 |
| Max. excavation distance on the ground | mm | 9990 |
| Min. turning radius | mm | 3975 |
| Max. height at minimum turning radius | mm | 7775 |
| Distance from the center of rotation to the rear end | mm | 2810 |
| Counterweight height | mm | 2120 |
| Grounding length during transportation | mm | / |
| Overalllength | mm | 9930 |
| Overall width | mm | 2980 |
| Total height(boom top) | mm | 3190 |
| verall height(top ofcab) | mm | 3120 |
| Counterweight ground clearance | mm | 1065 |
| Min. ground clearance | mm | 442 |
| Tail turning radius | mm | 3000 |
| Track grounding length | mm | 3640 |
| Track length | mm | 4450 |
| Rail guage | mm | 2380 |
| Track width | mm | 2980 |
| Track shoe width | mm | 600 |
| Turntable width | mm | 2700 |
| rack tooth thickness | mm | / |
| Arm length | mm | 3050 |
| Boom length | mm | 5850 |
With technological innovation our product configuration and parameters will continue to change without notice
if there is any doubt the specific confirmation of our international trade sales shall prevail;
More About LTMG Machinery
The FAQs Of LTMG Electric Excavator
A: Yes, the LTMG electric excavator is designed to operate in various weather conditions. However, extreme temperatures may affect battery performance. The intelligent heat management system helps maintain optimal operating temperatures.
A: Yes, the LTMG 24-ton electric excavator is designed for versatility and can be used with a wide range of standard attachments to suit different tasks and working conditions.
Q: What is LTMG payment term of the wheel loader machine?
A: T/T, L/C, O/A
