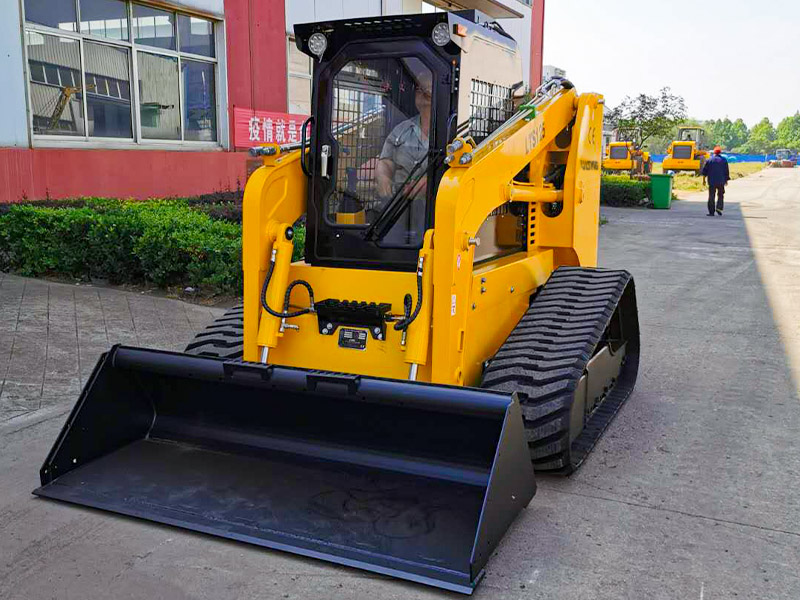

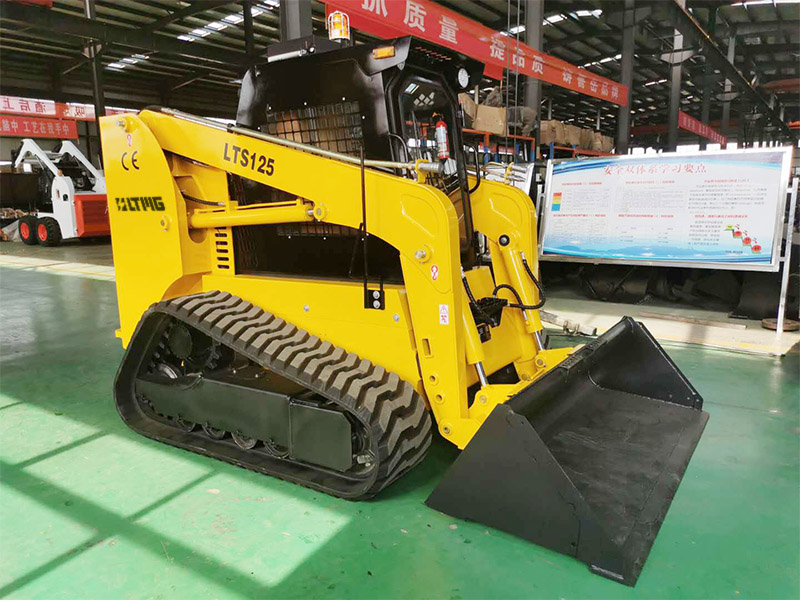

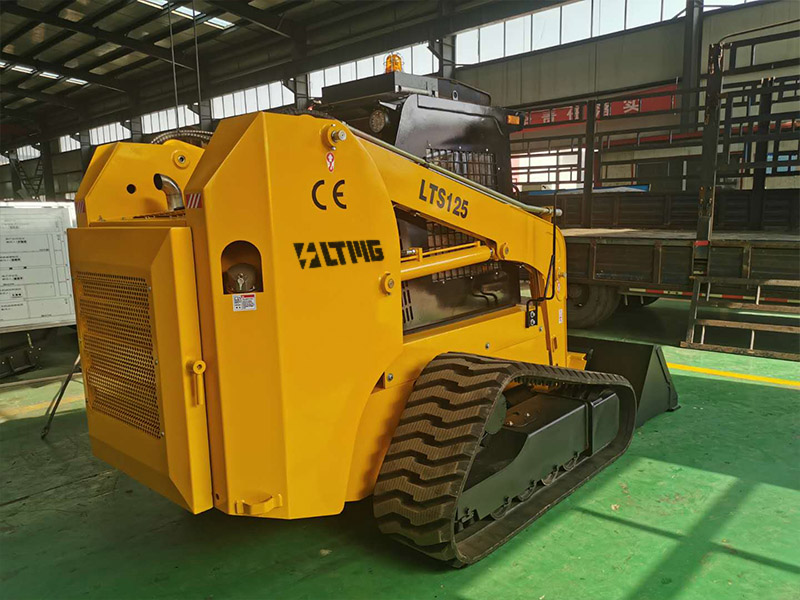

The 1500KG track skid steer loader is a compactly designed machine that is suitable for working in narrow spaces. It features dual throttle controls, an automatic leveling system, and hydraulic brakes.
Model :
LTS125Load Capacity :
1500KGOperating Weight :
4800KGBucket Capacity :
0.6CBMODM/OEM :
SUPPORT
1500KG track skid steer loader characteristics
1. The overall chassis structure is stronger, providing better strength and stability.
2. Equipped with a Kubota original engine, it offers powerful performance while being energy-efficient and environmentally friendly, meeting the EPA Interim Tier IV & EU Stage III A emission standards.
3. It features a hydraulic system from Sauer-Danfoss (USA) and Bosch Rexroth (Germany), ensuring overall stability and reliability of the system.
4. The cabin is designed with a large-angle flip-up design, providing more space for maintenance and making it more convenient. It can be easily flipped by one person.
5. The cabin meets the high-strength FOPS/ROPS international safety standards, offering a larger driving space and enhanced comfort.
Technical Parameters
| Model | LTS125 |
|---|---|
| Operating load (kg) | 1500 |
| Max Speed（km/h） | 12\18 |
| Rated flux (L/min) | 88 |
| High Flow Flux (L/min) | 140 |
| Tire（track） model | 450*86 |
| Rated power (Kw) | 103 |
| Fuel tank capacity (L) | 90 |
| dead weight (kg) | 4800 |
| self weight bucket (kg) | 4800 |
| Bucket capacity (m³) | 0.6 |
| Overall operating height (mm) | 4070 |
| Hheight to top of cab (mm) | 2160 |
| Without bucket length（mm） | 3000 |
| Overall length with bucket(mm) | 3700 |
| Dumping height(mm) | 2450 |
| Width (mm) | 2124 |
| Bucket width (mm) | 2160 |
| Height to bottom of level bucket(mm) | 2983 |
| Dumping angle at maximum height(° ) | 40 |
| Height to bucket hinge pin (mm) | 3150 |
| Dumping reach(mm) | 700 |
| Rollback o bucket on ground(° ) | 30 |
| Rollback of bucket at full height(° ) | 104 |
| Wheelbase(mm) | 1500 |
| Ground clearance(mm) | 200 |
| Angle of departure(° ) | 20 |
| Front turning radius without bucket(mm) | 1365 |
| Front tuning radius(mm) | 2200 |
| Rear tuning radius(mm) | 1742 |
| Rear axle to bumper (mm) | 938 |
| Tread width (mm) | 1654 |
With technological innovation, our product configuration and parameters will continue to change without notice
If there is any doubt, the specific confirmation of our international trade sales shall prevail

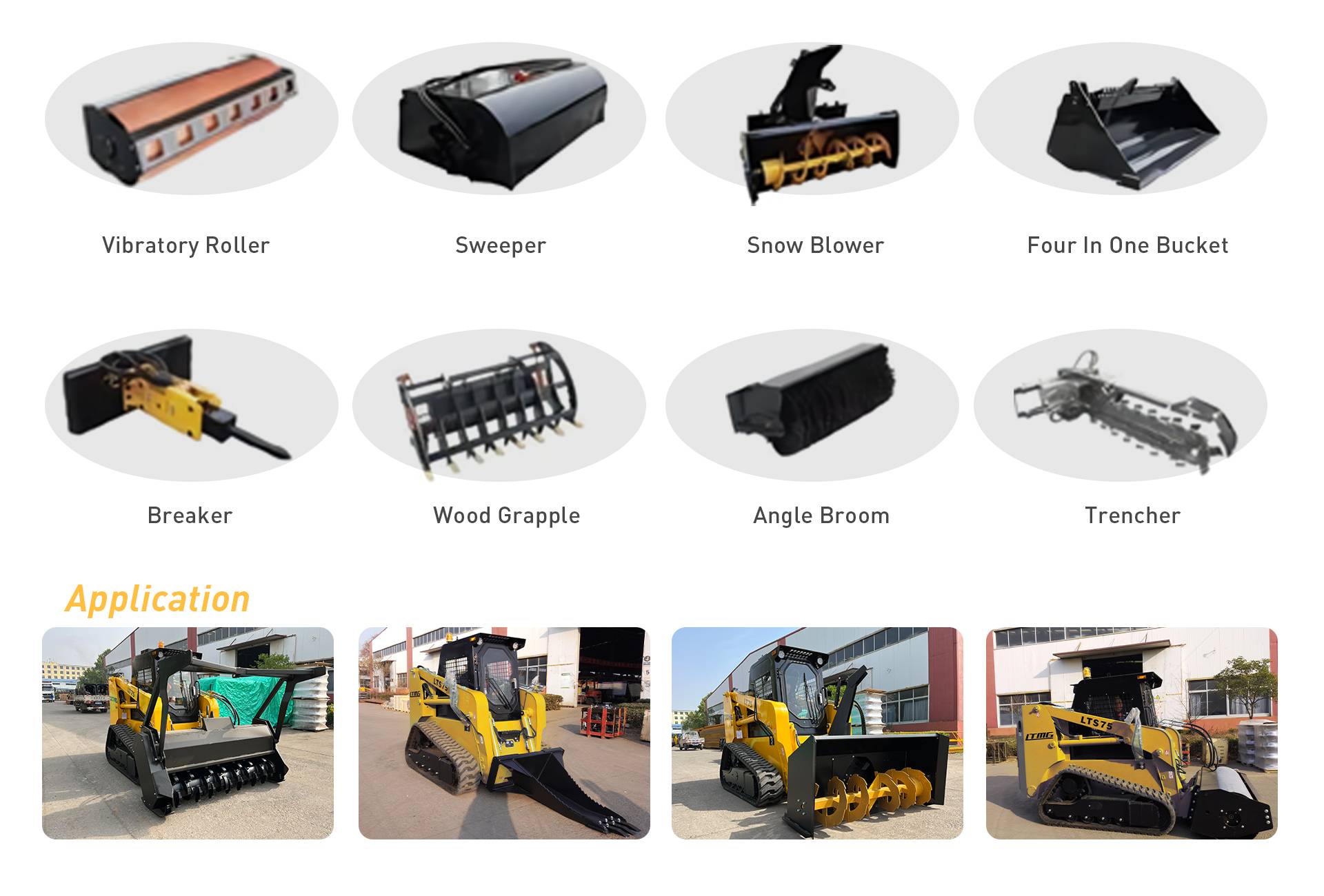

Track Skid Steer Loader details and attachments
More about LTMG Co., Ltd.

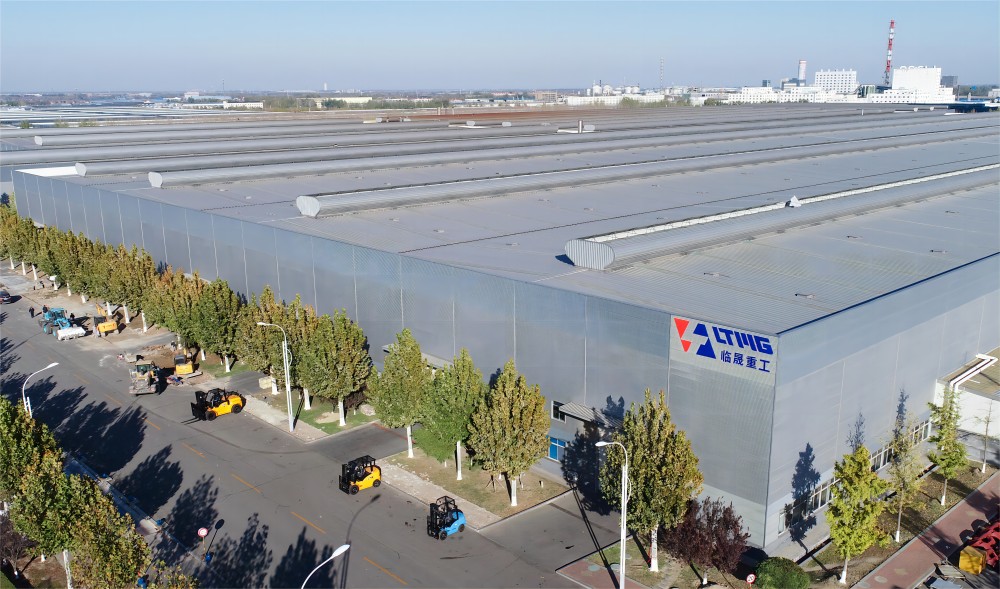

LTMG was founded in 2001 and is a modern large-scale machinery manufacturing enterprise, specializing in the production of construction machinery products. The company is headquartered in Xiamen and has a branch factory in Shandong, covering a total area of 100,000 square meters. The factory is equipped with 8 complete mechanical production lines.
By establishing a sound production line, LTMG is able to achieve efficient production and manufacturing processes. These production lines cover various stages, from component processing to final assembly and debugging, ensuring that the products meet quality and performance standards as well as customer requirements.
As a research-focused and innovative company, LTMG continuously improves and optimizes its products while strictly adhering to international quality management systems for production and management. The company places great emphasis on quality control and ensures the reliability and durability of each piece of equipment through rigorous testing and inspection procedures.
FAQ
1. Why choose us?
LTMG specializes in the production of skid steer loaders and has more than 15 years of experience in production and sales. We provide 7/24 hours online service.
2.What payment terms can we accept?
Normally, a 30% deposit is required in advance and 70% of the balance should be settled before shipment. Payment methods include T/T, L/C, D/A, etc.
3.What is the product range of our factory?
LTMG Industry is a large machinery manufacturer specializing in supplying loaders, forklifts, excavators and related accessories. We can also customize non-standard products according to customers' requirements.
4.Could we request our own color for the skid steer loader?
Yes, of course, you just need to offer us the RAL code.
