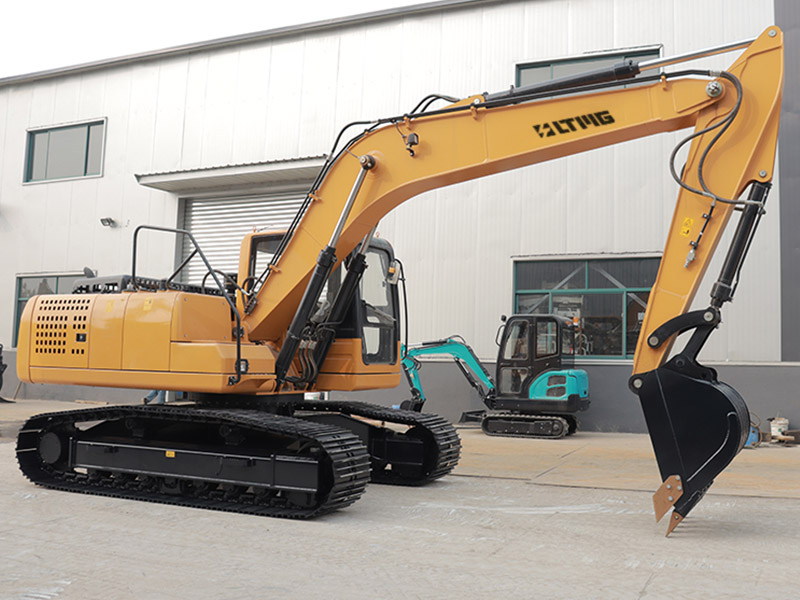

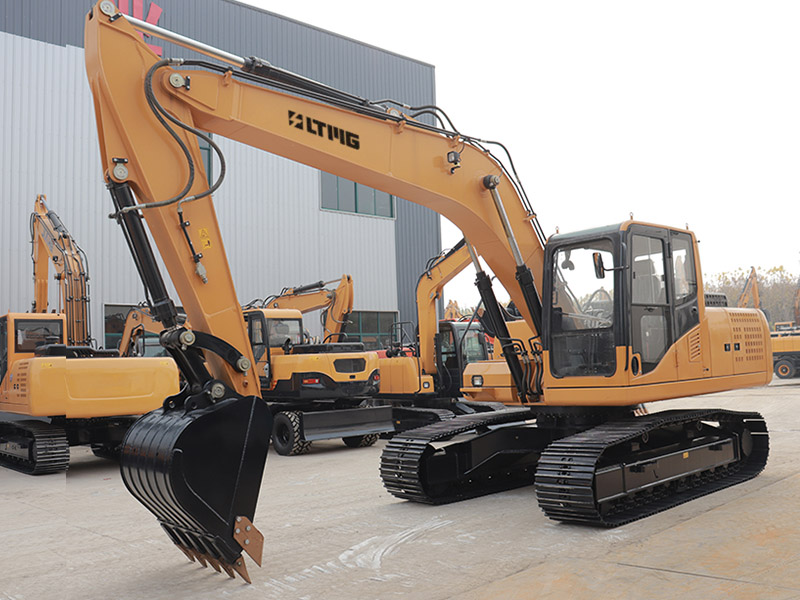

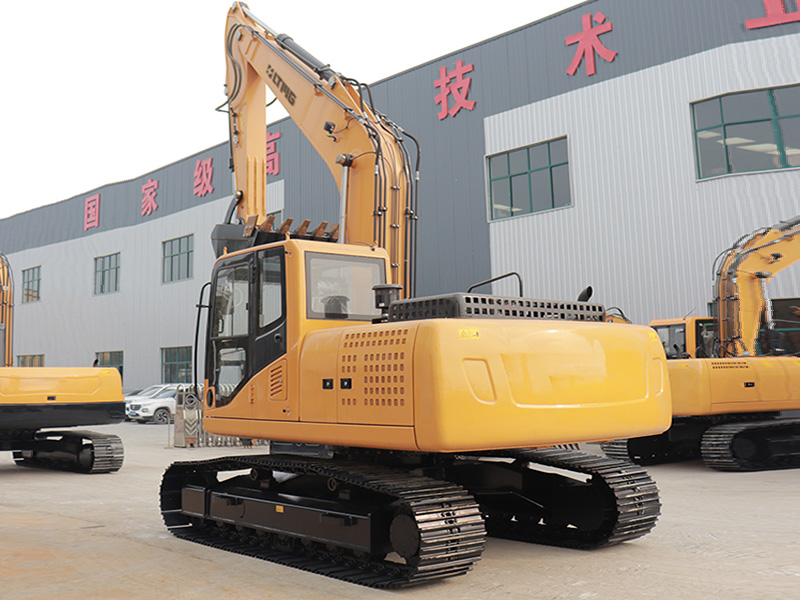

13.5ton Crawler Excavator is a crawler excavator with 13.5 ton loading capacity and 0.6cbm bucket, equipped with 73KW ISUZU engine, PNM pump, HF and Parker valve. It also equipped with comfortable seat make operator easy to work.
Model :
LTE135Operating Weight :
13500kgBucket Capacity :
0.6m³ODM/OEM :
SUPPORT
13.5 ton Crawler Excavator Feature
1.Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency.
2. Famous brand hydraulic system parts ensure the stable quality.
3. It can be widely used in garden, orchard, agriculture, basement renovation, coal washing plant, paper mill and other slag handling, and can replace manpower.
4.Small demension and easy to transport, could be loaded onto light truck or small trailer, four sets could be loaded into one 20GP container to save freight cost.
5.Equipped with double fuel filter to guarantee fuel purity to protect engine.
13.5 ton Crawler Excavator Product parameter
Performance Parameters | Unit | LTE135 |
Operating Weight | Kg | 13500 |
Engine Model | ISUZU 4JJ1-XDJAG | |
Rated Power | Kw | 73KW/2000RPM |
Bucket Capacity | m³ | 0.6 |
Max Digging Force | Kn | 91 |
Swing Speed | rpm | 0-12 |
Traveling Speed | km/h | 2.8-4.2 |
Gradeability | ° | 70(35°) |
Operating Range | ||
Max. Digging Radius | mm | 8000 |
Max. Digging Depth | mm | 5095 |
Max. Digging Height | mm | 8540 |
Max. Dumping Height | mm | 6125 |
Tail Swing Radius | mm | 2420 |
Overall Dimensions | ||
Overall Length | mm | 7635 |
Overall Width | mm | 2500 |
Overall Height | mm | 2750 |
Mini.Ground Clearance | mm | 400 |
Track Width | mm | 500 |
Undercarriage width | mm | 2500 |
Undercarriage ground clearance | mm | 400 |
With technological innovation, our product configuration and parameters will continue to change without notice;
If there is any doubt, the specific confirmation of our international trade sales shall prevail;
FAQ About 13.5 ton Crawler Excavator
1. What payment terms can we accept?
T/T; L/C; D/P
2. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
3.How about our delivery time?
It usually will take 30 days-45 days after receiving your deposit.
4. Can we provide OEM service?
LTMG industrial can provide customized products according to customers' requirements,both OEM and ODM are acceptable.
