The skid steer loader is a versatile construction machine designed for a variety of tasks, such as shoveling, loading and transporting loose materials. It can be quickly adapted to different operations by changing its attachment devices, allowing it to perform tasks such as shoveling, stacking, lifting, excavation, drilling, crushing, grabbing, pushing, loosening and opening. This makes it an ideal choice for many construction projects such as ditch digging, road milling, road cleaning and road compaction.
Model :
LTS75Load Capacity :
1050kgOperating Weight :
4280kgBucket Capacity :
0.5m3ODM/OEM :
SUPPORT

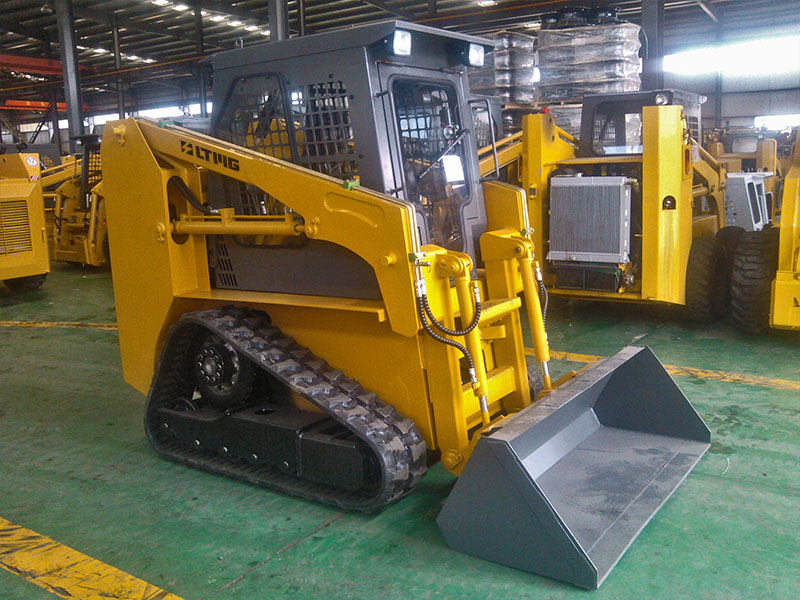

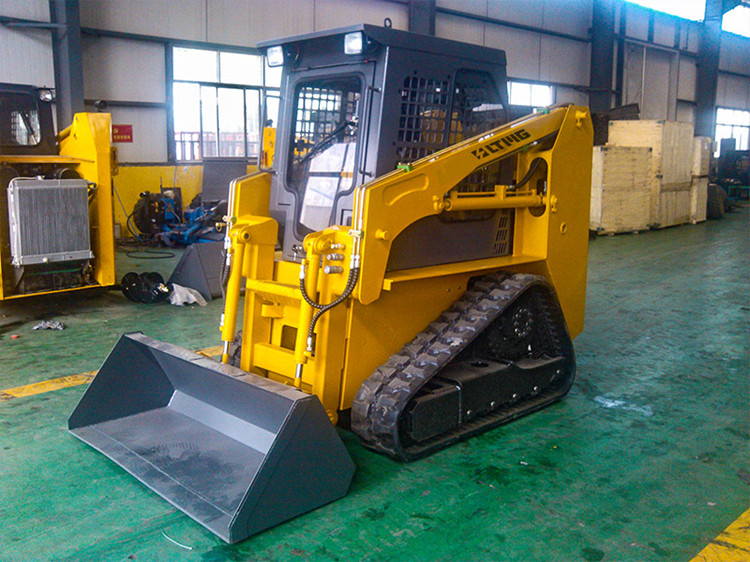

1050kg Track Skid Steer Load
1. The key core components (hydraulic system) are imported from European and American brands
2. The engines are international and domestic brands, and various options are available.
3. Standard and universal quick change device Quick-change coupler in standardization
4.The hanger connection is the same as that of the American Bobcat Mounts connection is the same as BOBCAT
5.The hydraulic quick-change joint is the same as that of the American Bobcat, which is suitable for the quick change of the company's accessories and can be connected with foreign accessories. Hydraulic quick-change coupler is the same as BOBCAT, and is suitable to our skid steer loader attachments as well as foreign attachments
1050kg Track Skid Steer Loader Technical parameters
| Model | LTS75 |
| Type of engine | Xinchai |
| Rated power | 55KW |
| Rated speed | |
| Number of cylinders | 4 |
| Air inlet mode | |
| Displacement | |
| Emission standard | |
| Rated load | 1050Kg |
| Max Load | |
| Max lifting Force | |
| Bucket Capacity | 0.5m³ |
| Driving speed | |
| The sum of three items | |
| system pressure bar | |
| Fuel tank capacity | 90L |
| Operating weight | 3800Kg |
| Maximum operating height(H) | |
| Height to bucket pin | 2150 mm |
| overall height(C) | 3480 mm |
| Max height on bucket level state | 2730 mm |
| Total length without bucket(E) | 2750 mm |
| Total length（with bucket）(F) | 3500 mm |
| Max height Unloading Angle | 40° |
| Dumping height(A) | 2230 mm |
| Dumping distance | 715 mm |
| Bucket overturning angle on the ground | 30° |
| Max Bucket swing angle | 1500 |
| Wheel base | 1500 mm |
| Ground clearance | 200 mm |
| Tail length | |
| overall width(I) | 1782 mm |
With technological innovation, our product configuration and parameters will continue to change without notice;
If there is any doubt, the specific confirmation of our international trade sales shall prevail.
FAQ about 1050kg Track Skid Steer Loader
1: How long is the Warranty for LTMG skid steer loader?
12 months or 2000 working hours,whichever occurs first.
2: How about the delivery time of LTMG skid steer loader?
For some standard products, we may have stock and could delivery immediately. If there is no stock, usually LTMG producing time is 20 working days from the date advanced payment received.
3: Can LTMG provide customized products? OEM products or ODM products?
Yes, it can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of customization products.
4: Could we request our own color for the skid steer loader?
Yes, of course, you just need to offer us the RAL code.
