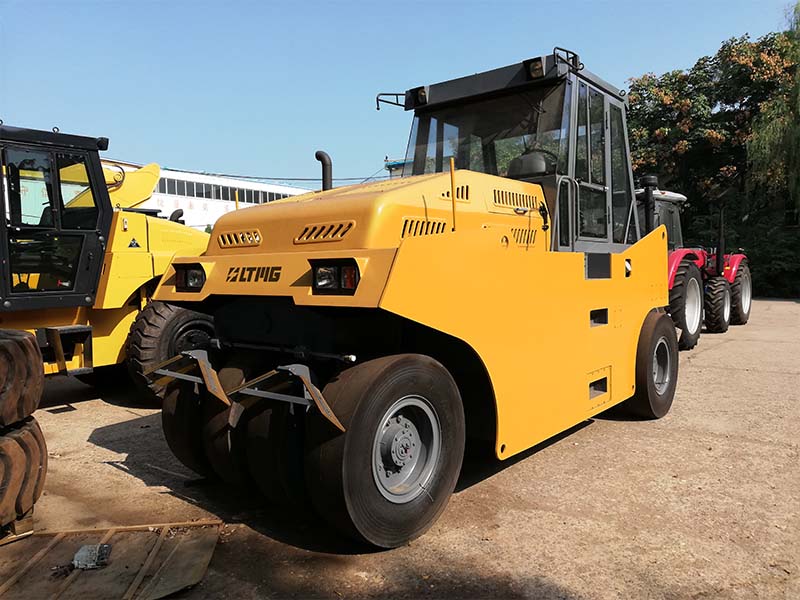

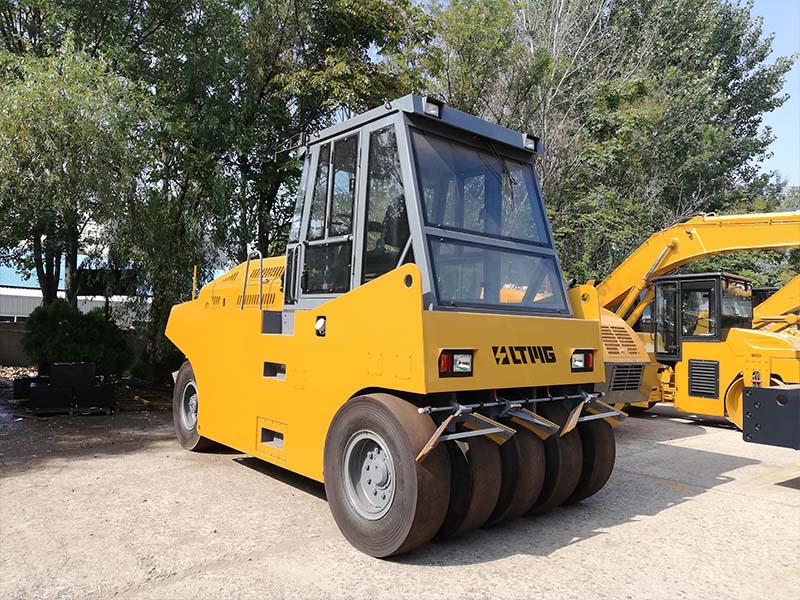

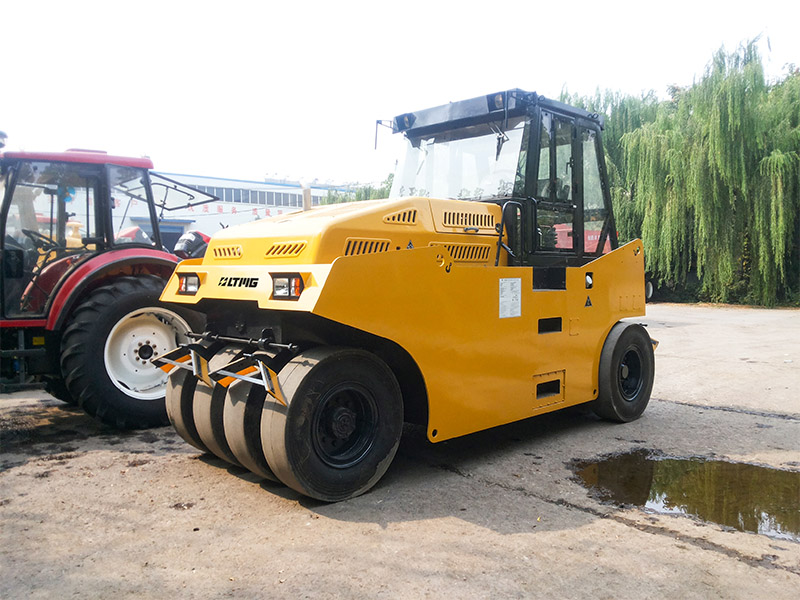

LTP1016 is equipped with slick tires with adjustable inflation pressure, the engine adopts Cummins 4BT3.9 diesel engine, the number of tires is 4 in the front and 5 in the rear, electronically controlled sprinkler, air-conditioned cab as standard.
Model :
LTP1016Operating Weight :
10000KGPower :
75KWCompaction Width :
2280MMODM/OEM :
SUPPORT
1.LTP1016 low gravitational center designed for safe and comfortable operation;
2.LTP1016 adopted 4BT cummins engine,is suitable to all environments;
3.Three forward speed and two backward changes,reinforced plastic spraying box and multi-layer water filter ensure the stability of the system;
4.Power strong,LTP1016 adopted 4BT Cummins engine, is suitable to all environments;
| Model | LTP1016 | |
| Operating mass(unballast/ballast) | kg | 10000/16000 |
| Max.travel speed | Km/h | 14.7 |
| Tyre quantity(front +back ) | / | 4+5 |
| Min. Turning radius | mm | 7500 |
| The presses width | mm | 2280 |
| Grade ability | % | 30 |
| wheelbase | mm | 3700 |
| Overall dimension | mm | 4780*2100*3200 |
| Diesel power | kw | 75 |
| Diesel model | Cummins 4BT3.9 |
