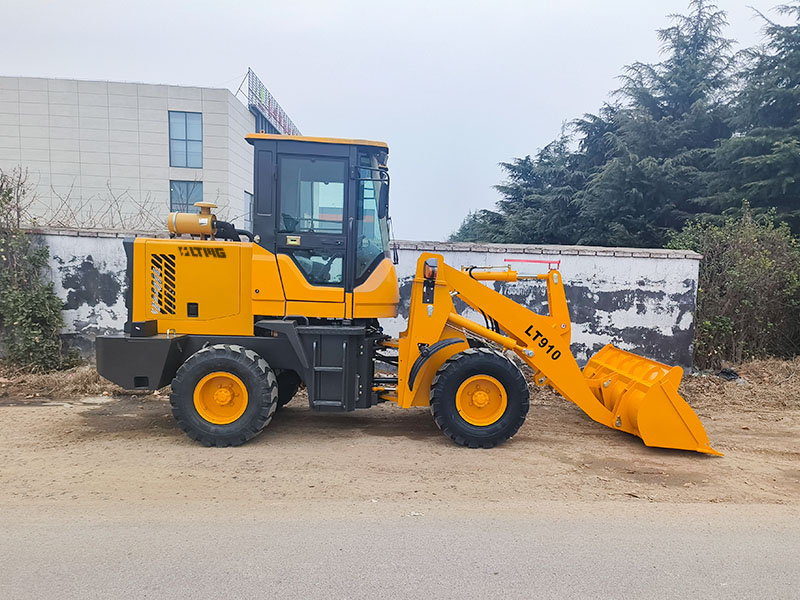

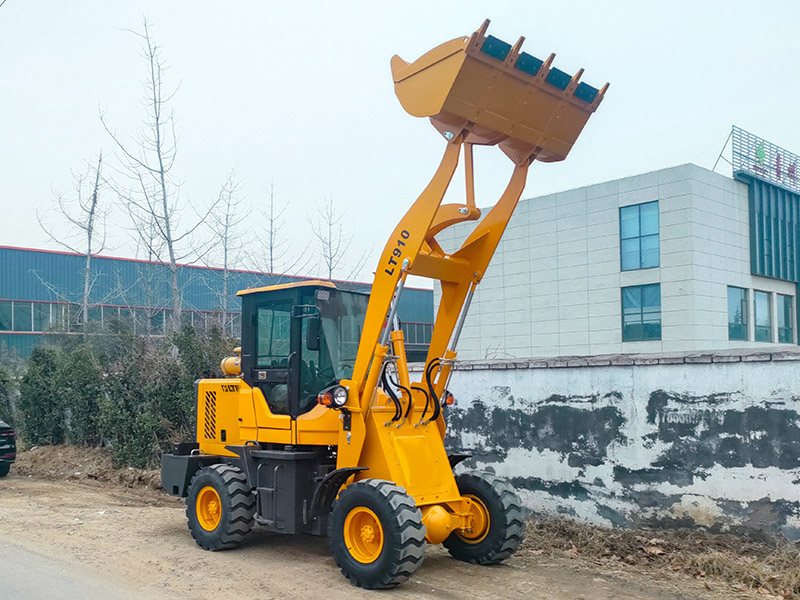

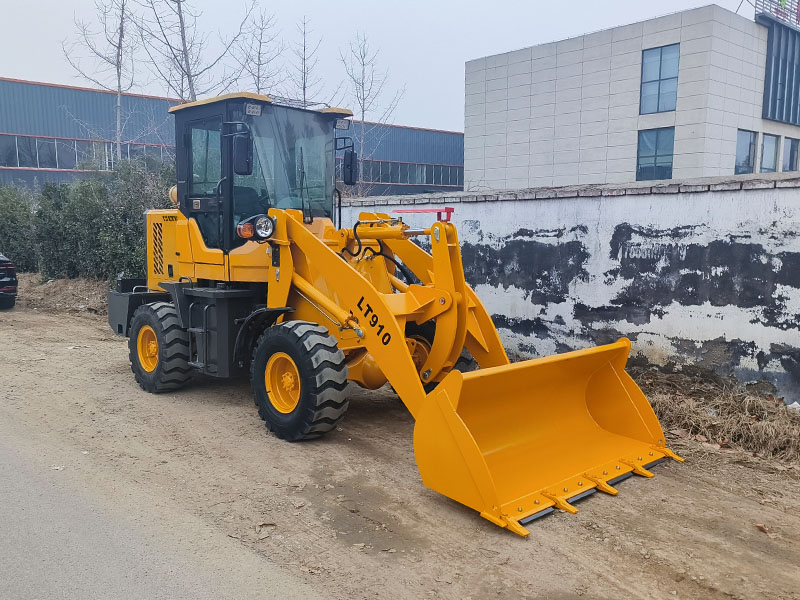

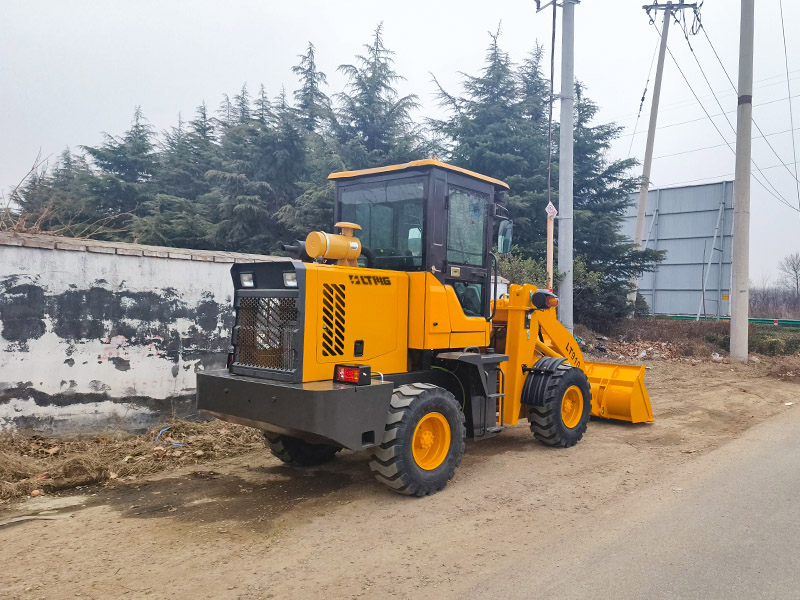

1 Ton Articulated Compact Wheel Loader With Isuzu Bridge

1 Ton Articulated Compact Wheel Loader With Isuzu Bridge

The 1 Ton Wheel Loader LT910 with powerful engine and srong performances, features with double sealed hydraulic pipeline joints, air over hydraulic brake system. Availalbe in optional configurations like ROPS cabinand, MP3 & Audio system, rear view camera, etc. It is highly maneuverable, making it an ideal choice for many construction projects.

Model :
LT910
Load Capacity :
1000kg
Operating Weight :
3300kg
Bucket Capacity :
0.8m³
ODM/OEM :
SUPPORT

Inquiry now

Share to :

Product Details

1 Ton Wheel Loader LT910 Main Features

1. The use of hydrodynamic transmission technology provides improved reliability and easier maintenance through the integration of a separate gearbox and torque converter.
2. The hydraulic power shift gearbox, with two forward and two reverse gears, is operated by a flexible shaft for easy operation.
3. The single pump, split flow working hydraulic system offers lower consumption and enhanced performance.
4. Double sealed hydraulic pipeline joints with 24°awl and O rings of international standard ensure no oil leakage.
5. The load sensing fully hydraulic steering system allows for effortless maneuvering.
6. Air over hydraulic brake system; Caliper disc brakes provide reliable braking power.
7. The working device is equipped with an automatic leveling ability at high positions for convenience.
8. Bucket articulated points are sealed, lubricated, and dust-proofed to guarantee long-term durability.

Optional Configurations

The wheel loader s can be equipped with a plethora of optional configurations to elevate your operations. For example, Enjoy the convenience of an air-conditioner for a comfortable working environment, an automatic lubrication system ensuring smooth performance, a user-friendly control panel for effortless operation, and a joystick for precise maneuverability. Elevate productivity and efficiency with our versatile and customizable wheel loader.

air-conditioner Automatic lubrication system control panel joystick MP3 & Audio system

quick hitch rear view camera ROPS cabin Suspension seat wet brake axle

Click here to contact us for more options

1 Ton Wheel Loader LT910 Technical parameters

Model	LT910
Operating weight	3300 kg
Rated load	1000 kg
Bucket capacity	0.8 m³
Engine Model	yunnei / xinchai/Kubota/Cummins
Rated power	37 KW (50.32HP)
Overall dimension (LxWxH)	560018102750mm
Max Dumping height	3200 mm
Max Dumping reach	900 mm
Gear shift	2 forward 2 reverse
Max. speed	25 km/h
Tire size	20.5-16
Operating type	Mechanical single joystick
Optional configuration	Air conditioner rearview camera etc.
Optional attachment	Quick hitch fork log grapple etc.

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;

Certificates

wheel loader certificates

FAQ

Q: How Can I Trust Your Company?

A: With 20 years of experience, we can offer you the right advice and the most economical price. All equipment is CE, ISO certified through third party evaluation.

Q: What is the global reach of LTMG's products?

A:Currently, LTMG products have been exported to more than 180 countries and have more than 50 agents, forming a perfect sales and after-sales service network around the world.

Q: I was just wondering what modes of payment you accept and how long it'll take to receive my order?

A: We have T/T, L/C, and D/P payment modes and expect the goods to be delivered within 20-30 days post deposit.

Tags :

Leave a message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 1 Ton Articulated Compact Wheel Loader With Isuzu Bridge
* Name:
* Email:
Tel/Whatsapp:
* Leave your message:

Submit

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

new products

Hydraulic Digger 4000kg Excavator with Kubota Engine view details

Construction 5 Ton Wheel Loader With 3m³ Bucket view details

1 Ton Articulated Compact Wheel Loader With Isuzu Bridge view details

8 Tonne Wheeled Excavator Standard Air Conditioner view details

Large Wheel Loader 5 ton High-Power With Weichai Engine view details

Energy Efficient 2 Ton Micro Crawler Excavator view details

38 Ton Crawler Excavator Large Excavator With Cummins Engine view details

Mini 3 Ton Crawler Excavator With Optional Attachment view details

Powerful and Efficient 0.9 Ton Hydraulic Crawler Excavator view details

1.2 ton hydraulic excavator for Home Garden view details

Related Products

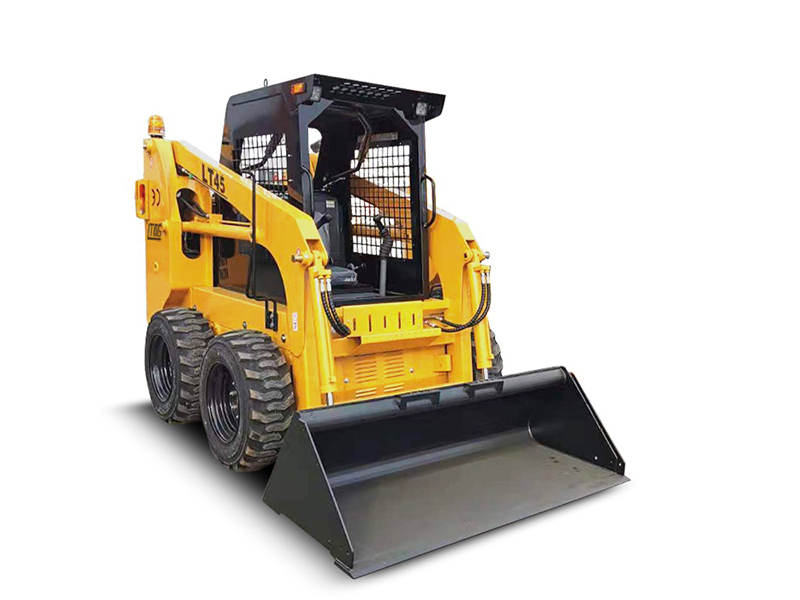

1050kg Track Skid Steer Loader 74hp Closed Cab 0.5m³ Bucket Loader

The skid steer loader is a versatile construction machine designed for a variety of tasks, such as shoveling, loading and transporting loose materials. It can be quickly adapted to different operations by changing its attachment devices, allowing it to perform tasks such as shoveling, stacking, lifting, excavation, drilling, crushing, grabbing, pushing, loosening and opening. This makes it an ideal choice for many construction projects such as ditch digging, road milling, road cleaning and road compaction.

Compact 0.8 Ton Wheel Loader LT908 With Euro 5 Engine

The 0.8 ton compact wheel loader is ideal for small-scale construction and landscaping projects, as it offers excellent maneuverability and a wide range of attachments to suit different job requirements. It also provides excellent fuel efficiency, making it an economical choice for businesses looking to reduce their operating costs.

Construction 5 Ton Wheel Loader With 3m³ Bucket

The new 5-ton wheel loader leads the development trend of the loader industry. It has excellent features to efficiently complete a variety of loading tasks. Powerful loading capacity, easy operation, adapt to various working conditions and road conditions. Our customers are full of praise for its performance and believe that its operation is stable and efficient, which greatly improves work efficiency.

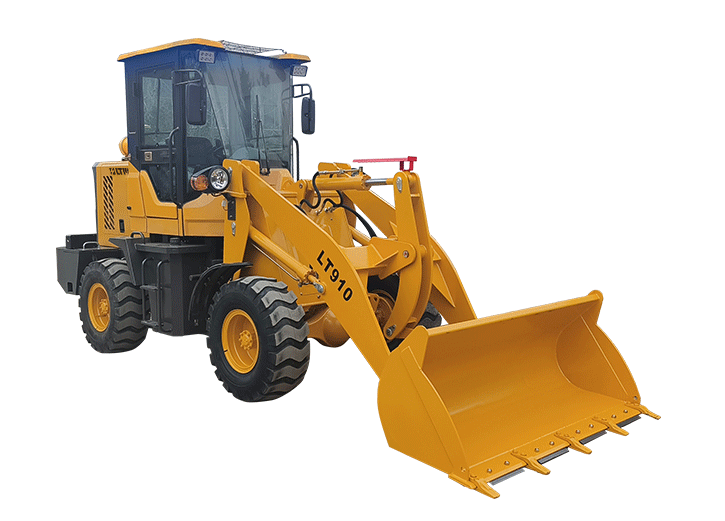

1 Ton Articulated Compact Wheel Loader With Isuzu Bridge

Large Wheel Loader 5 ton High-Power With Weichai Engine

Large 5 ton high-power diesel engine wheel loader with dual rock boom,excellent driving visibility and driving experience,smaller turning radius for greater manoeuvrability

2.5 ton Backhoe Loader with H Leg With Air conditioners and ROPS cabin

2.5 ton Backhoe Loader with H Leg 4 wheel steering, crab walk, equipped with ROPS&FOPS cabin is a versatile, efficient and durable machine that can handle a wide range of construction and agricultural tasks

1.5 Ton Cummins Engine Wheel Loader With Optional Configuration

The 1.5 ton wheel loader mianly used for moving and loading large amounts of material such as dirt, gravel, and debris.Its compact size also allows it to maneuver in tight spaces, making it a versatile tool for a variety of applications.

2.5 ton backhoe loader BLT388T With Imported Italian Carraro Bridge Box

BLT388H is equipped with imported Italian Carraro axle box, imported valves, front and rear mechanical operation; reserved for crushing hammer line, anti-rollover cab, imported valves,A-legged as standard

1.8 Ton Wheel Loader Euro 5 Engine with Enclosed Luxury Cabin

1.8 loader is a small wheel side axle truck with a 20.5/70 -16 tire size, an unloading height of 3.3m, a deadweight of 3700kg, and a Euro 5 engine. It also has an enclosed cab.

Mini 2 Ton Wheel Loader with EPA Engine

2 ton mini wheel loader with EPA engine,environmentally friendly, meets EPA emission standards and has a wide range of applications

700kg Wheel Skid Steer Loader With Imported Parts

The 700kg Wheel Skid Steer Loader equipped with the same hydraulic quick-change couplings as the BOBCAT, features with manual operation, open cabin, simple structure, easy maintenance, high cost performance. Adopts mechanical leveling system; mechanical pull rod system. It is mainly used in situations where the work site is small, the ground is undulating and the work content changes frequently.

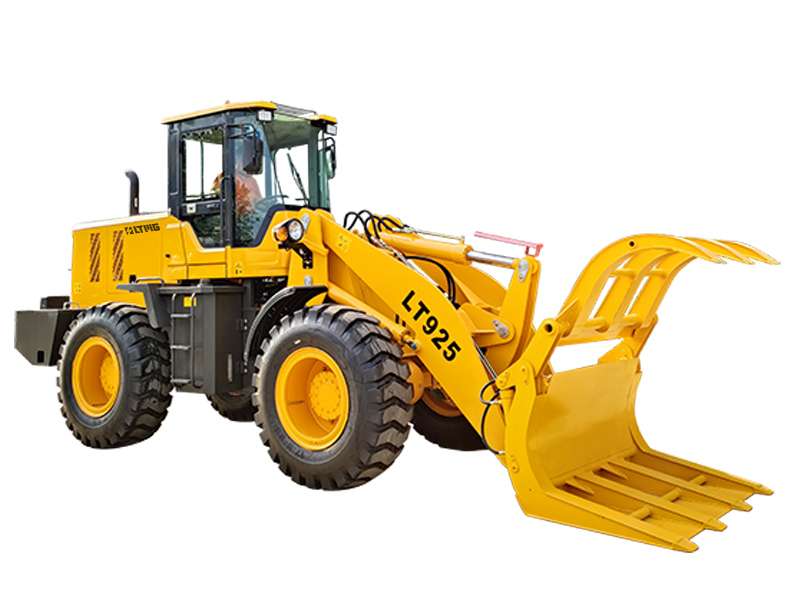

2.5 Ton Payloader With Log Grapper Attachment
